- Page 1 User Manual HYX-DCS-WL/4G DATA COMMUNICATION STICK Carefully read this inverter user instructions before using. Read and save these instructions.
- Page 2 ZHEJIANG HYXI TECHNOLOGY CO., LTD (hereinafter referred to as "HYXIPOWER"). TRADEMARKS and other HYXIPOWER trademarks are the trademarks or registered trademarks of HYXIPOWER All other trademarks mentioned herein are the properties of their respective owners.
-
Page 3: Table Of Contents
User Manual Contents HYX-DCS-WL/4G CONTENTS 1. Safety Instructions ..............................1 2. Product Introduction .............................. 2 2.1 Product Description ................................2 2.1.1 Product Highlights ................................2 2.2 Appearance Introduction ..............................2 2.2.1 Introduction of Indicator Lights and Key Functions ..................3 2.3 Network Application .................................3 3. Installation ................................. 4 3.1 Install the smart communication stick (WIFI module) ..................4... -
Page 4: Safety Instructions
User Manual 1. Safety Instructions HYX-DCS-WL/4G 1. Safety Instructions In order to ensure the safety of the user's person and property when using the product and to use the product more efficiently and optimally, the manual provides relevant, the following symbols are used to highlight the information. -
Page 5: Product Introduction

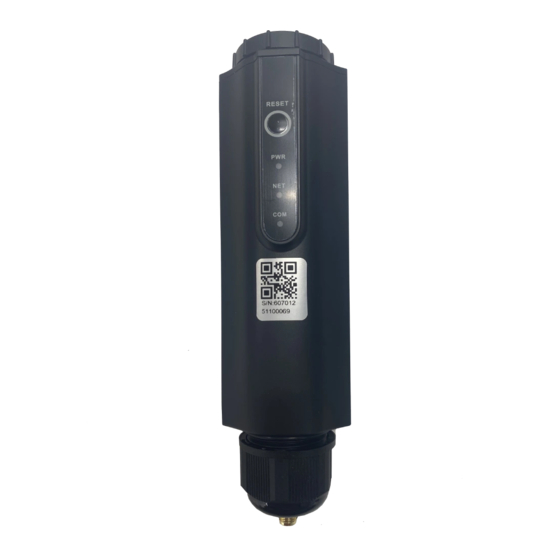

2. Product Introduction 2.1 Product Description HYXIPOWER Data communication stick （DCS） is equipped with HYXIPOWER inverter for use, and the inverter's power generation data is transmitted to HYXIPOWER monitoring platform through WiFi, Ethernet, and 4G.HYXIPOWER DCS comes in two versions: WLAN and 4G. -
Page 6: Introduction Of Indicator Lights And Key Functions
User Manual 2. Product Introduction HYX-DCS-WL/4G 2.2.1 Introduction of Indicator Lights and Key Functions Indicator Status Description Power ON POWER Power OFF Solid Green Connected to the server Flashing Connecting to the server Disconnected from the server Solid Green Normal communication with inverter COM. -
Page 7: Installation
User Manual 3. Installation HYX-DCS-WL/4G 3. Installation 3.1 Install the smart communication stick (WIFI module) • Step 1: Remove the waterproof cover at the communication interface of the inverter; • Step 2: Insert the communication stick into the corresponding communication terminal at the bottom of the inverter and tighten it to make sure it is secure. - Page 8 User Manual 3. Installation HYX-DCS-WL/4G...
-
Page 9: Human-Computer Interaction
Scan the following QR code to download and install the App according to the prompt information: 4.2 APP User manual For more information on using the HYXiPower APP, please refer to the user manual "HYXiPower APP". 4.3 System debugging For system configuration and debugging, please refer to the user manual "HYXipower Local... -
Page 10: Troubleshooting
User Manual 5. Troubleshooting HYX-DCS-WL/4G 5. Troubleshooting Code Description Solution 1. Check and confirm that the inverter is powered on and running, the WiFi module is firmly installed, and the power Unable to search for light is on. WiFi signal 2、... -
Page 11: Appendix
User Manual 6. Appendix HYX-DCS-WL/4G 6. Appendix 6.1 Technical Parameter Product Model HYX-DCS-WL HYX-DCS-4G General Data Max. Inverters Supported Data Acquisition Interval Default: 5 mins (1-15 mins Configurable) Connection interface Installation 10M / 100M Ethernet Enthernet Interface Plug-and-play Plug-and-play Indicator... -
Page 12: Contact Information
User Manual 6. Appendix HYX-DCS-WL/4G Frequency Range Transmitted Power 1920MHz--2170MHz <24.5dBm WCDMA 880MHz--960MHz <24.5dBm 870MHz--960MHz <33.5dBm 1800 1710MHz--1880MHz <30.5dBm WiFi 2400MHz--2483MHz <14dBm 6.3 Contact Information If you have any questions about this product, please contact us. In order to provide you with faster and better after-sales service, we need your assistance in providing the following information. - Page 13 Version: UMEN-DCS-4G/WL-Ver1.0-202312 The manual is subject to change without notice while the product is being improved. Zhejiang Hyxi Technology Co., Ltd. Building 3, Jiuyao Commercial Center, Hangzhou, China, 310008 www.hyxipower.com support@hyxipower.com...
