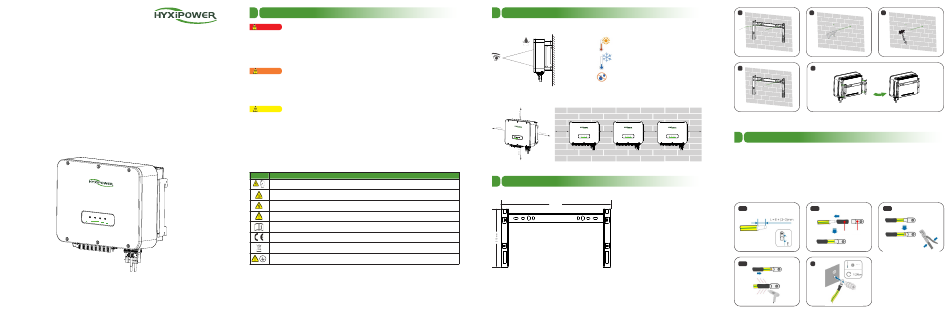

HYXIPOWER HYX-S30K-T Quick Installation Manual

QUICK
INSTALLATION
GUIDE
STRING
INVERTER
HYX-S30K-T / HYX-S33K-T / HYX-S36K-T
HYX-S40K-T / HYX-S50K-T
www.hyxipower.com
1 Safety Instructions
DANGER
• Exposure of the PV module to sunlight will generate dangerous voltages.
• Make sure the inverter doesn't have any electrical connections before installation.
• Make sure that all cables are not energized before making electrical connections.
• Do not open the enclosure at any time. Unauthorized opening will void guarantee and warranty claims, and
HYXiPWOER shall not be held liable for any damage caused.
WARNING
• Only qualified personnel can perform the wiring of the PV system.
• Any improper operation during wiring may result in equipment damage or personal injury or death.
• All the warning labels and nameplate on the inverter body must be clearly visible and not be removed,
covered or pasted.
CAUTION
• Before installing the equipment, please check whether the goods are complete and whether there is any
damage according to the packing list.
• Improper handling of the equipment may result in minor, serious or contusive injuries.
• The wiring process must follow the relevant rules of the local power grid and the relevant safety
instructions for PV modules.
• After the inverter has been shut down, there is still a risk of burns. After the inverter has cooled down, it is
necessary to wear protective gloves before operating the inverter.
Symbol Description
Symbol Description
Disconnect power for at least 5 minutes before servicing the inverter
Do not touch the inverter housing while it is in operation
Only install and operate the inverter with professional personnel
Do not remove the DC input connector or the AC output connector when the inverter is running
Read the manual
CE mark of conformity
Do not dispose of the inverter as household waste
High touch current, earth connection essential before connecting supply
2 Installation Preparation
2.1 Installation Environment Requirements
≤60℃
IP66
≥-30℃
0~100%RH
2.2 Installation Space Requirements
≥300mm ≥300mm ≥300mm
Installing the Inverter
3
3.1 Hanging Plate Size
649mm
3.2 Installation Steps
• Step 1: Place the wall plate horizontally on the wall, recommend to select the hole position shown in the
picture and mark the drilling position.
• Step 2: Drill a hole at the location shown, the depth of the hole is about 70mm.
• Step 3: Place the expansion tube and install the wall plate using the expansion bolt assembly.
• Step 4: Secure the mounting plate with M6 screws.
• Step 5: Hang the mounting lugs onto the peg plate and tighten them with M6 screws and finally lock them.
1 2
4 5
≥300mm
4 Electrical Connection
4.1 Grounding Procedure
The cross-sectional area of the secondary grounding cable must be the same as the cross-sectional area of
the PE core in the AC cable.
The secondary grounding cable and terminal block are to be prepared by the customer.
• Step 1: Make the cable and crimp the terminal block.
• Step 2: Remove the screws from the grounding terminal and use a screwdriver to secure the cable.
• Step 3: Apply silicone or paint to the grounding terminal to improve its corrosion resistance.
2-1 2-2
Hot-melt Wiring
sleeves Terminals
3
2-4
M5
3
2-3
