Item # 1001 847 516
Model # FZS60534S-ST
USE AND CARE GUIDE

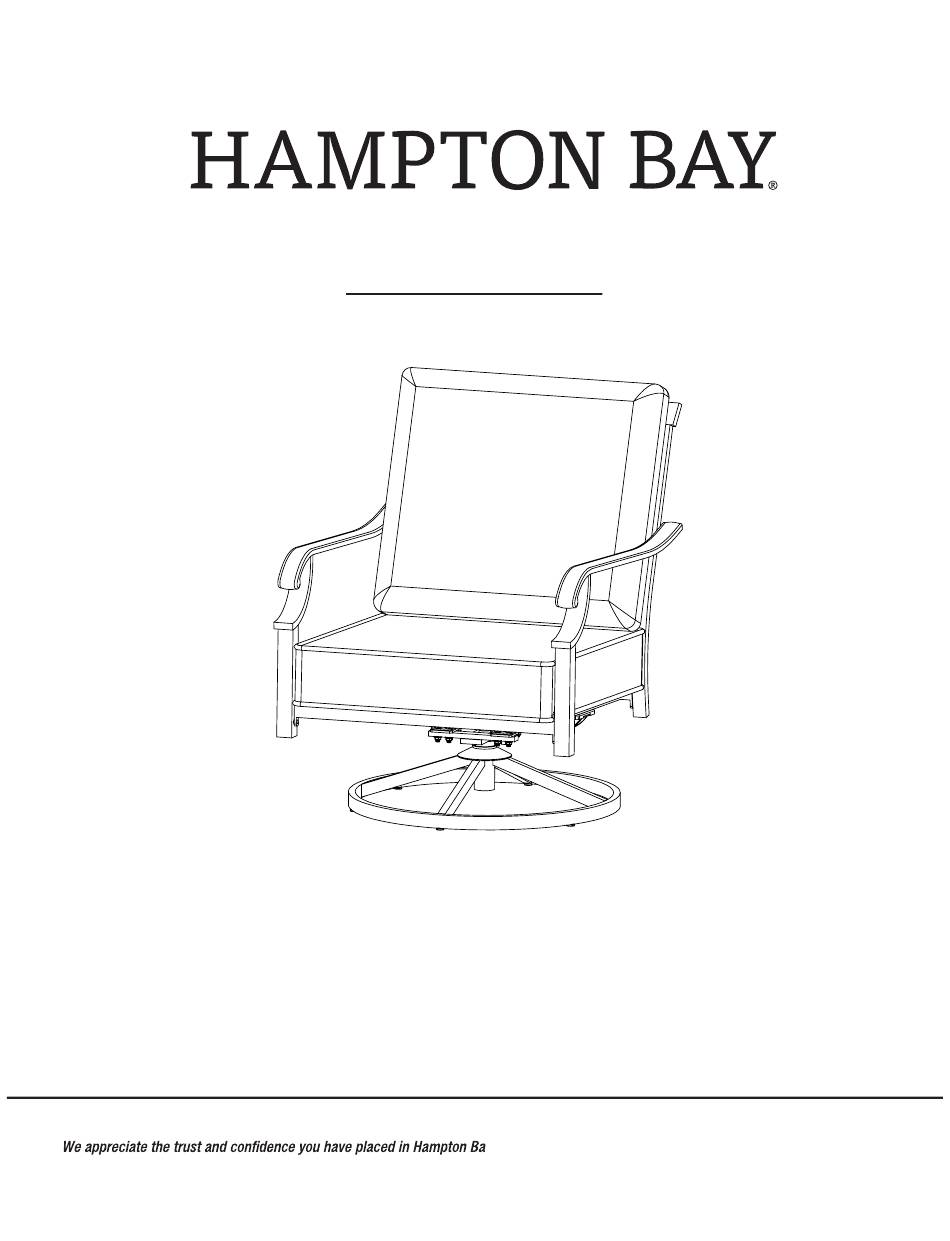

BOWBRIDGE STEEL 5PC FIRE PIT CHAT SET - SWIVEL CHAIR
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HOMEDEPOT.CA
THANK YOU
y through the purchase of this chair. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HAMPTON BAY BOWBRIDGE FZS60534S-ST
Summary of Contents for HAMPTON BAY BOWBRIDGE FZS60534S-ST
- Page 1 We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Planning Assembly ..............3 Important Safety Instructions ........2 Hardware Included ..............3 Save These Instructions ............2 Chair Package Contents ............4 Read All Instructions Before Use ... -
Page 3: Warranty
Warranty 3 YEAR FRAME AND 3 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for three years, and a three year limited warranty for the fabric. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. -
Page 4: Chair Package Contents
Pre-Assembly (continued) CHAIR PACKAGE CONTENTS Part Description Quantity Left Arm Right Arm Chair Back Chair Seat Support Tube Swivel Base Back Cushion Seat Cushion... -
Page 5: Chair Assembly
Chair Assembly ATTACHING THE CHAIR SEAT TO THE CHAIR BACK Place the chair back (C) upside down on a soft surface. Attach the chair seat (D) to the chair back (C) using M6x15 combination bolts (AA). NOTE : Loosely tighten all bolts using the hex wrench (CC). HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance. - Page 6 Chair Assembly (continued) ATTACH THE RIGHT ARM TO THE CHAIR SEAT AND CHAIR BACK Attach the right arm (B) to the chair seat (D) and chair back(C) using M6x15 combination bolts (AA). NOTE : Loosely tighten all the bolts using the hex wrench (CC).
- Page 7 Chair Assembly (continued) ATTACH THE LEFT ARM TO THE CHAIR SEAT AND CHAIR BACK Attach the left arm (A) to the chair seat (D) and chair back (C) using M6x15 combination bolts (AA). NOTE : Loosely tighten all the bolts using the hex wrench (CC). HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
- Page 8 Chair Assembly (continued) ATTACH THE SUPPORT TUBE TO THE CHAIR BACK Place the chair back (C) upside down on a soft surface. Attach the support tube (E) to the chair back (C) using M8x20 combination bolts (BB). NOTE : Loosely tighten all the bolts using the wrench (DD).
- Page 9 Chair Assembly (continued) TIGHTEN ALL BOLTS AND INSERT SUPPORT TUBE INTO THE SWIVEL BASE Once all of the bolts are in place, fully tighten all the bolts using the hex wrench (CC) and wrench (DD). Turn the chair right side up. Insert the support tube (E) into the swivel base (F).
-
Page 10: Care And Cleaning
Chair Assembly (continued) PUT THE SEAT CUSHION AND BACK CUSHION ON THE CHAIR Put the seat cushion (H) and back cushion (G) on the chair. Ensure all connections are secure before use. Care Care and Cleaning For best results, clean the frame and cushions with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. - Page 11 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.CA Retain this manual for future use. Factory chair ID # FZS60534S...
- Page 12 BOWBRIDGE STEEL 5PC FIRE PIT CHAT SET - LP FIRE PIT TABLE Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.C...
- Page 13 Table of Contents Table of Contents......2 Assembly ........9 Important Safety Information.
- Page 15 Glass beads glass beads...
- Page 16 Constructed and marked in accordance with the U.S. Department o r the...
- Page 17 GLASS BEADS WARNING DO NOT PLACE ANY MEDIA ON SCREEN...
- Page 33 IGNITER...
- Page 35 LIGHTING...
- Page 36 13. If you’re having trouble lighting your fire table, please follow this checklist: a. Battery is inserted with the negative side going in first. b. LP gas tank valve is open. c. Thermocouple is fully fastened. d. The control knob is pushed in for a minimum of 15 seconds.
