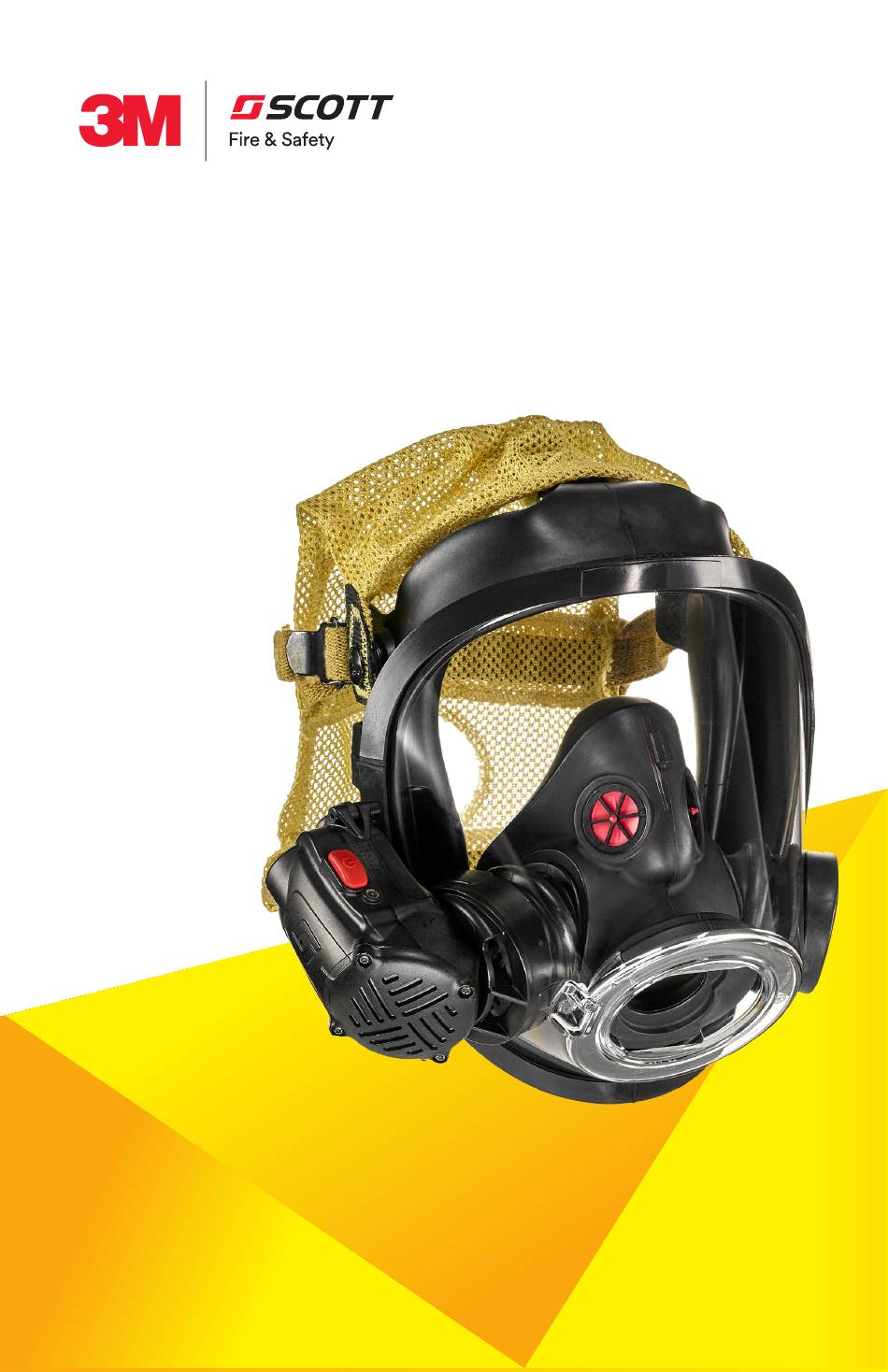

- Page 1 Scott ™ ™ EPIC 3 RDI Voice Amplifier Quick Reference Guide...
- Page 2 SCOTT EPIC 3 RDI VOICE AMPLIFIER FEATURES Power / Function Button Voice Amplifier / Radio RX Front Speaker LED Indicator Light Voice Amplifier / Radio RX Rear Speaker Battery Cover Locking Spring lever...
- Page 3 MOTOROLA APX FIELD RADIO FEATURES NOTE: THIS GUIDE DEPICTS THE APX RADIO MODEL WITH TWO DISPLAYS. Top Display On/Off Volume Control Main Display 1, 2, & 3 Menu Buttons Home 4-Way Button Navigation Arrows On/Off BT Search On/Off APX Radio Side View...
-
Page 4: Key Definitions
WARNINGS: FAILURE TO ADHERE TO WARNINGS MAY RESULT IN SERIOUS INJURY OR DEATH • THE EPIC 3 RDI VOICE AMPLIFIER AND ITS ACCESSORIES ARE INTENDED TO BE USED WITH SCOTT RESPIRATORS WHICH MAY SUPPORT HUMAN LIFE IN HAZARDOUS ATMOSPHERES. FAILURE TO CAREFULLY FOLLOW THESE INSTRUCTIONS AND WARNINGS AND THE INSTRUCTIONS AND WARNINGS CONTAINED IN YOUR SCOTT RESPIRATOR OPERATING AND MAINTENANCE INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR DEATH. - Page 5 INSTALLATION TO FACE PIECE NOTE: The EPIC 3 RDI Voice Amplifier is compatible with the entire line of Scott Safety Full Face Pieces. Pictures depicted within this guide reflect the AV3000-HT Face Piece. Hold the RDI Voice Amplifier in the upright position with the red power button to the right.
- Page 6 INITIAL BLUETOOTH PAIRING NOTE: Before operating the EPIC 3 RDI amp with the APX radio, please ensure the APX radio firmware has been updated to R15.00 or higher and the radio has been configured for Bluetooth operation. For instructions on updating the APX radio, please refer to the Motorola Radio Configuration For Use With EPIC 3 RDI Amp guide.
- Page 7 INITIAL BLUETOOTH PAIRING Motorola APX Field Radio with TWO Displays 1. Ensure the APX radio 2. Enter the Bluetooth 3. The APX radio will is powered on and the settings by pressing the display the number of Bluetooth indicator 2-dot button under the devices connected.
- Page 8 INITIAL BLUETOOTH PAIRING Motorola APX Field Radio with ONE Display 1. Follow the initial 2. Ensure the APX radio 3. If the Bluetooth Bluetooth pairing is powered on and the indicator is not visible, instructions for the RDI Bluetooth indicator press the “BT On/Off”...
- Page 9 RECONNECT BLUETOOTH PAIRED DEVICES 1. Ensure the APX radio is powered on 2. Power on the RDI Voice Amplifier and the Bluetooth indicator appears in by pressing and holding the red power the top right hand corner. button. The RDI Voice Amplifier will emit an audio tone and the LED will switch from off to green.
- Page 10 RDI VOICE AMPLIFIER/ APX RADIO TRANSMIT & RECEIVE OPERATION RDI VOICE AMPLIFIER/ APX RADIO TRANSMIT & RECEIVE OPERATION RDI VOICE AMPLIFIER/ APX RADIO TRANSMIT & RECEIVE OPERATION After the EPIC 3 RDI Voice Amplifier & APX Radio have been Bluetooth paired, follow After the EPIC 3 RDI Voice Amplifier &...
- Page 11 REMOVING BLUETOOTH DEVICE PAIRING INFORMATION REMOVING BLUETOOTH DEVICE PAIRING INFORMATION Once an EPIC 3 RDI Voice Amplifier and APX radio have been paired and connected, Once an EPIC 3 RDI Voice Amplifier and APX radio have been paired and connected, REMOVING BLUETOOTH DEVICE PAIRING INFORMATION the Bluetooth device pairing information will be maintained until it is manually removed.
- Page 12 3M Scott Fire & Safety Personal Safety Division Monroe Center, P.O. Box 569 Monroe, NC 28111 Phone 1-800-247-7257 E-Mail ScottMonroeCSR@scottsafety.com ScottSafety.com P/N 31003792_RevB_EN 6/18 ISO 9001 Registered. Please recycle. Printed in USA © 3M 2018.All rights reserved. 3M and Scott are trademarks of 3M.
