QUICK START GUIDE
Indoor Cam S350

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Indoor Cam S350 and is the answer not in the manual?

Questions and answers

Related Manuals for eufy Security Indoor Cam S350

Summary of Contents for eufy Security Indoor Cam S350

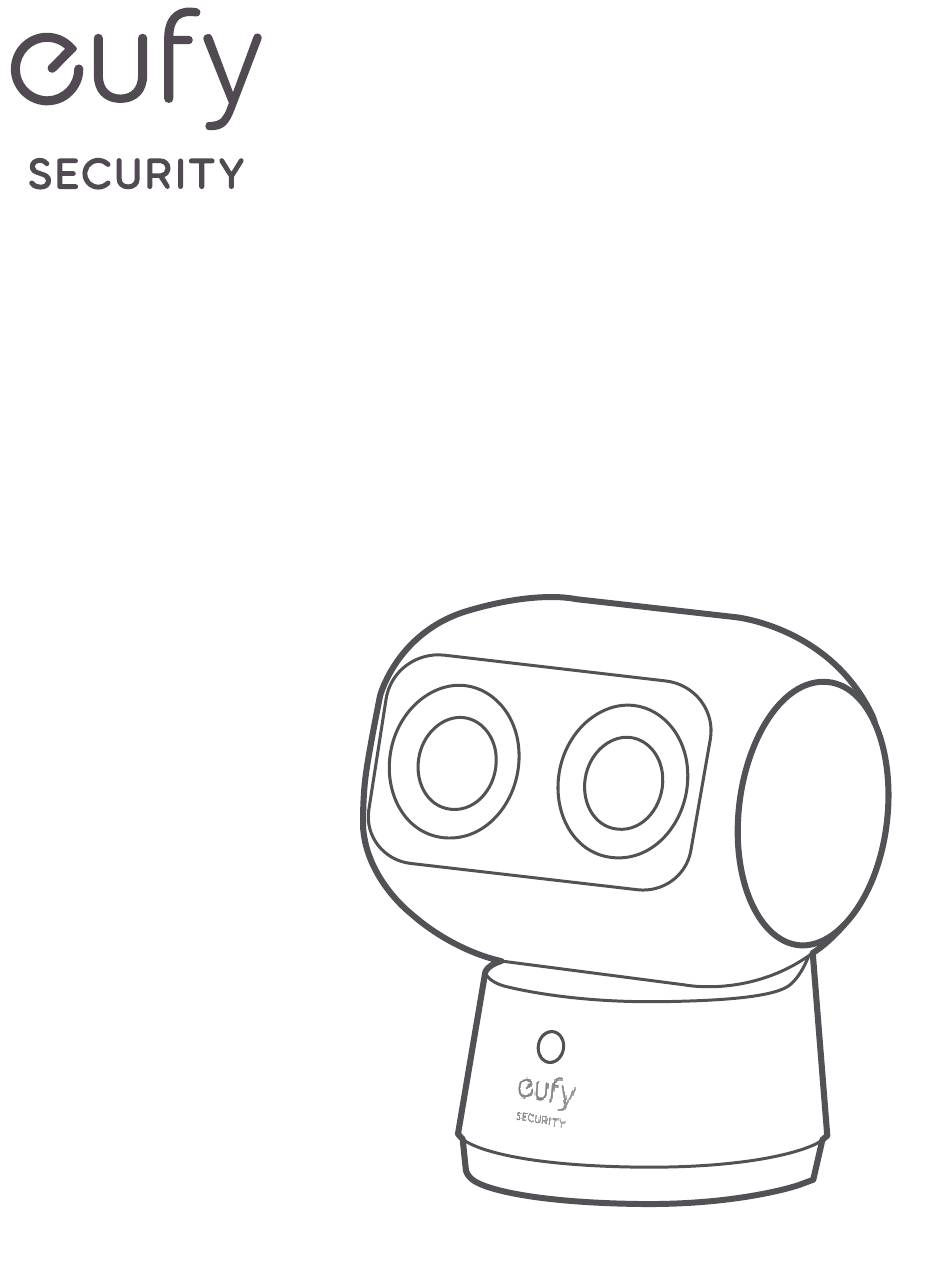

  • Page 1 QUICK START GUIDE Indoor Cam S350...
  • Page 2 AT A GLANCE SYNC Wide-Angle Lens Status LED Telephoto Lens Speaker Microphone SYNC Button microSD Slot Power Input Insert a microSD card* (not included) to store recordings *Use at least a Class 10 microSD card with a maximum of 128 GB.

  • Page 3: What's Included

    WHAT’S INCLUDED Indoor Cam S350 Power Adapter USB Cable Wall Mount Positioning Sticker Screw Pack Quick Start Guide You may need a screwdriver, drill, and ladder.

  • Page 4: Setting Up The System

    SETTING UP THE SYSTEM 1. Download and install the eufy Security app, and sign up for an account. 2. Connect the camera to a power source and wait until the status LED turns solid blue. 3. Tap in the app and follow the in-app instructions to...
  • Page 5 LED LIGHT GUIDE Solid Violet System is initializing Working normally or Solid Blue ready for setup Not connected to the Blinking Red internet Recording or the live Solid Red stream is being viewed Firmware upgrade in Flashing Blue progress and Red Note: Keep the camera connected to a power source...

  • Page 6: Installing Your Camera

    INSTALLING YOUR CAMERA Telephoto Lens Focusing Distance To ensure an optimal zoom experience from the telephoto lens, place the camera at least 8 ft (2.5 m) away from the area to be monitored. Telephoto Lens in Focus...

  • Page 7: Choose A Location

    Choose a Location The camera can be placed on a table or shelf, or can be installed on a wall or ceiling. Select a location and height that achieves your desired view and is within reach of a power outlet. Note: Keep the camera at least 0.7ft/0.2m away from any objects or walls to avoid infrared reflection, which may impact night vision performance.
  • Page 8 On the Wall 8 ft 5.6 ft 9 ft On the Ceiling 10 ft 2.6 ft 6 ft...
  • Page 9 Install on a Wall or Ceiling Note: Disconnect the camera from the power outlet before mounting. 1. Mark the screw positions on the wall or ceiling with the positioning sticker and drill a pilot hole.
  • Page 10 2. Hold the mounting plate on the wall and make sure the "UP" arrow is pointing up. Secure the mounting plate to the wall or ceiling with the screws. On the Wall On the Ceiling...
  • Page 11 3. Keep the camera disconnected from power. Connect the USB-C Cable to the camera with the other end not connected to a power source. SYNC 4. If mounting on a wall, place the cable into the cable channel of the mounting plate. * Skip this step for ceiling installation.
  • Page 12 5. Slide the camera onto the mounting plate and make sure it is attached securely. On the Wall On the Ceiling...
  • Page 13 SAFETY The recommended temperature range for devices and accessories is 0°C to 40°C (32°F to 104°F) . Unless specifically indicated that it is safe to do so in the user guide or instruction manual, do not use this device in an environment that exceeds the recommended low or high temperature.
  • Page 14 NOTICE FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 15 FCC Radio Frequency Exposure Statement The device has been evaluated to meet general RF exposure requirements. The device can be used in fixed/mobile exposure condition. The min separation distance is 20 cm. Notice: Shielded cables All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.
  • Page 16 IC RF Statement When using the product, maintain a distance of 20cm from the body to ensure compliance with RF exposure requirements. Lors de l'utilisation du produit, maintenez une distance de 20 cm du corps afin de vous conformer aux exigences en matière d'exposition RF.

  • Page 17: Customer Service

    CUSTOMER SERVICE 12-month limited warranty (US) +1 (800) 988-7973 (UK) +44 (0) 1604 936200 (DE) +49 (0) 69 9579 7960 ) +86 400 0550 036 ) +81 03 4455 7823 (AU) +61 3 8331 4800 (Egypt) +20 8000000826 (UAE) +971 8000320817 (Kuwait) +965 22069086 (Saudi Arabia) +966 8008500030 (Middle East &...
  • Page 18 Anker Innovations Limited. All rights reserved. eufy Security and eufy Security Logo are trademarks of Anker Innovations Limited, registered in the United States and other countries. All other trademarks are the property of their respective owners. Model:T8416 51005003911 V01...
  • Page 19 e u f y S e c u r i t y I n d o o r C a m S 3 5 0 U s e r G u i d e ( T 8 4 1 6 ) A T A G L A N C E W i d e - A n g l e L e n s L S t a t u s L E D...
  • Page 20 L E D L i g h t G u i d e S o l i d V i o l e t S y s t e m i s i n i t i a l i z i n g S o l i d B l u e W o r k i n g n o r m a l l y o r r e a d y f o r s e t u p B l i n k i n g R e d...
  • Page 21 O n t h e C e i l i n g I n s t a l l o n a W a l l o r C e i l i n g N o t e : D i s c o n n e c t t h e c a m e r a f r o m t h e p o w e r o u t l e t b e f o r e m o u n t i n g . 1 .
  • Page 22 4 . I f m o u n t i n g o n a w a l l , p l a c e t h e c a b l e i n t o t h e c a b l e c h a n n e l o f t h e m o u n t i n g p l a t e . * S k i p t h i s s t e p f o r c e i l i n g i n s t a l l a t i o n .
