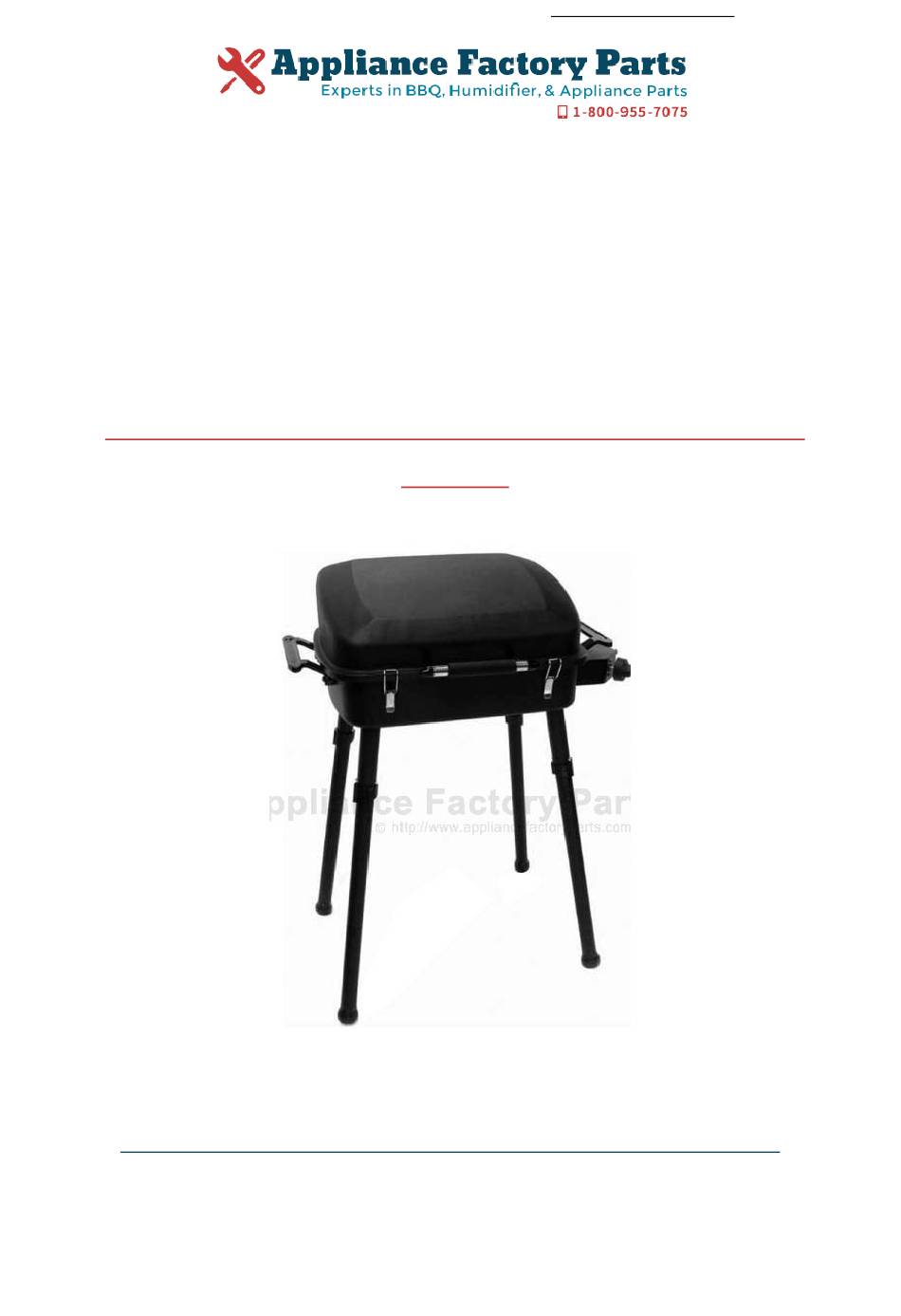

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Master Chef G20901 Owner's Manual Shop genuine replacement parts for Master Chef G20901 Find Your Master Chef Grill Parts - Select From 118 Models -------- Manual continues below --------...
- Page 2 S E R I A L # : Traveling Chef Propane Barbecue S A F E U S E , C A R E A N D A S S E M B L Y M A N U A L This instruction manual contains important information necessary for the proper assembly and safe use of this appliance.
- Page 3 W A R R A N T Y 1 Year Limited Warranty This Masterchef ® Barbecue carries a 1 year limited warranty against defects in manufacturing workmanship. This Limited Warranty is nontransferable and becomes void if used for commercial or rental purposes. This warranty applies only when grill is used in Canada.
- Page 4 I N F O R M A T I O N The installation of this appliance must be in accordance with all local codes, or in the absence of local codes: I N S T A L L A T I O N Canadian installation must conform to the current national standards, which at •...
- Page 5 The Cylinder must also be equipped with: A shut-off valve with a correct cylinder valve outlet as specified in current standards. • Canada: CAN/ CGA 1.6g-M97 Outdoor Gas Grills. • U.S.A: ANSI Z21.58a-2006/CSA 1.6a-2006 Outdoor Cooking Appliances. • a) Constructed and marked in accordance with the Specifications for LP-Gas Cylinders of the U.S.
- Page 6 F I L L I N G T H E For safety reasons the LP gas cylinder, if supplied with your barbecue, has been shipped empty. The cylinder must be filled prior to use and must have the air L . P . C Y L I N D E R purged.
- Page 7 Attention: Improperly lighting the barbecue can activate the flow control fea- ture, resulting in lower heat output. If this occurs, the re-flow feature must be reset by turning off all the burner controls and the cylinder valve. Wait at least 30 seconds before slowly turning on the cylinder valve, and then after another 5 seconds turn the burner valve on and light the barbecue.
- Page 8 P R I O R T O U S I N G Do not use your barbecue until you have carefully read and fully understand all the information in this manual. Please ensure the following: Your barbecue is properly assembled. •...
- Page 9 L I G H T I N G Prior to lighting your barbeque, visually check all hoses before each use, for nicks, cracking, abrasions or cuts. If the hose is found to be damaged in any way, do not T H E B A R B E C U E use your barbeque.
- Page 10 Match-Lighting Do not lean over grill while lighting. 1. Open lid. Turn on gas at LP cylinder. 2. Push in and turn main burner knob to HI. Be sure burner lights and stays lit. 3. Place lit match into match holder, then into lighting hole on left side of grill. Match Lighting Procedure Lighting the other side of the dual burner: Once one side of the dual burner has been lit, push in and turn the other control knob to ‘HIGH’.
- Page 11 T I P S O N U S I N G First time use: Before cooking, turn on the barbecue and operate on “High” for about 10–15 minutes with the lid open. Close the lid and continue to run the bar- Y O U R B A R B E C U E becue on “High”...
- Page 12 C L E A N I N G To get many years of service out of your barbecue, perform the following mainte- nance procedures. A N D M A I N T E N A N C E Cooking Grate: Do not use steel brushes, as they can scratch the coating, allow- ing moisture to settle and cause rusting.
-
Page 13: Troubleshooting Guide
T R O U B L E S H O O T I N G G U I D E Problem Possible Causes Corrective Action Burner will not light Blocked venturi tubes Clean out blockage • • (match or igniter) Cylinder or gas supply valve turned off Open cylinder or gas supply valve •... - Page 15 G209-0003-01 Control Knob G401-0023-01 Regulator G209-0005-01 Cart Leg G209-0006-01 Lower end cap, Cart leg G209-0007-01 Locking Pins, Cart Leg A060-0006-01 Spring G209-0008-01 Grease Cup G401-0066-01 Grease Cup Hook G401-0067-01 Match Holder G401-0079-01 Hardware pack G20901-B001-01 User manual G209-003-010801 Velcro G209-0014-01...
- Page 16 Manual Hardware Pack...
- Page 17 A S S E M B L Y I N S T R U C T I O N S Hardware Pack List Key No. Description Part Number Quantity Tools needed for assembly are shown below. 1/4"-20UNC Flange Nut 31220-13000-036 1/4-20UNC x 75 Screw 20120-13075-036 Before assembling the barbecue, please ensure...
- Page 18 Assemble the handle (AF) to the lid (AA) by using hardware #10 (x2), #2 (x2), #3 (x2), #4 (x2) as shown in the drawing. Assemble the control panel (CA) from the inside of the burner box (igniter, valve and knob are a ready pre-assembled) by using #7 (x4), #8 (x4), #9 (x4) as shown in the drawing.
- Page 19 Press the cart leg, locking pins (DC) into the shorter legs. Attach the cart legs (DA) as shown in the drawing. Place the hook (CB) into the hole which is located on the control panel as shown. Then use the hook (CB) to hang the regulator hose (CG) as shown.
- Page 20 D I S T R I B U T O R Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8...
