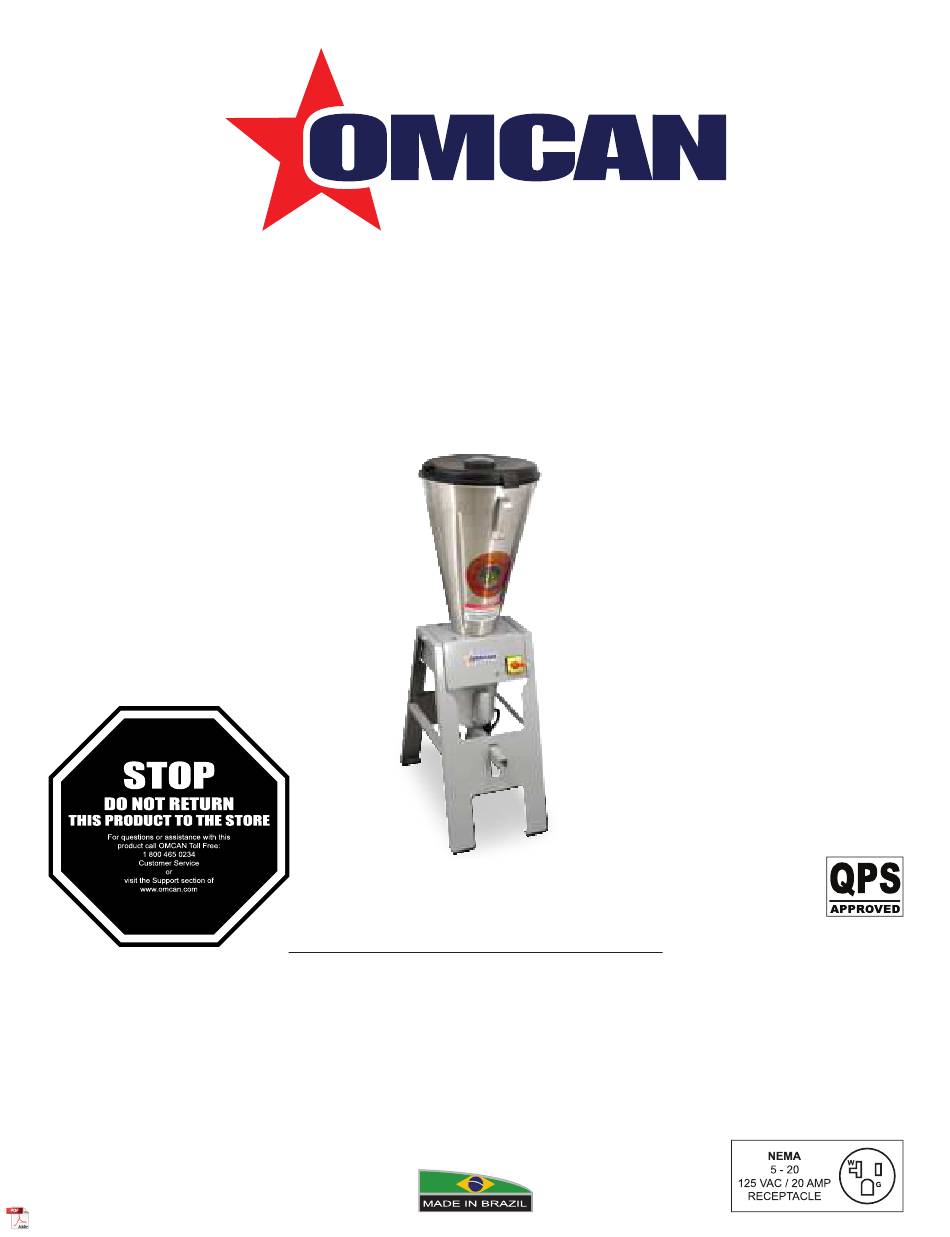

- Page 1 Blenders Models BL-BR-0015, 0025 Items 37969, 31502 Instruction Manual Revised - 04/07/2021 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model BL-BR-0015 / Model BL-BR-0025 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 6 Technical Specifications -------------------------------------------------------------------------- 7 Installation -------------------------------------------------------------------------------------- 8 - 10 Operation -------------------------------------------------------------------------------------- 10 - 11 Maintenance --------------------------------------------------------------------------------- 11 - 13... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. -
Page 5: General Safety Practices
Safety and Warranty 6. When washing inside of the Cup Nº02 (Pic. 01) ensure power is off and unit is unplugged. Be careful with the blade as it has sharp edges. GENERAL SAFETY PRACTICES The following safety instructions are addressed to both the operator of the machine as well as the person in charge of maintenance. -
Page 6: Safety Procedures And Notes Before Switching Machine On
1 YEAR PARTS AND LABOUR BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment. -
Page 7: Main Components
Technical Specifications MAIN COMPONENTS All components are made with carefully selected materials, in accordance with Omcan experience and standard testing procedures. 01- Lid 02- Cup 03- On/Off Switch 04- Stand 05- Motor 06- Lock Pedal Picture 1 BL-BR-0015 BL-BR-0025 Model Power 1.5 HP / 1.12 kW... -
Page 8: Installation
Installation PADDLE AND SPRING ASSEMBLY 1. Fit the spring in the holes located at the stand. 2. Place the paddle in the frontal cut of the stand. 3. Press the paddle’s back portion down (as indicated in the red arrow below), tensioning the spring. During this process, it is important to hold the spring in its place, fitted to the holes in the stand, to avoid any misplacement. - Page 9 Installation 4. With the spring tensioned, push the paddle back until it fits in the rear cut of the stand. 5. Fit the paddle’s hole to the stand pin and shown below. 6. Check to see if the paddle is working correctly. The High Performance Tilting Blenders were developed to be used in 110V.
-
Page 10: Pre-Operation
Installation PRE OPERATION First of all check if the Blender is firm on its position. Check if Motor (Nº01) is perfectly fitted on the Lock Pedal (Nº02) as shown on Picture 2. 01 - Motor 02 - Pedal Lock. Picture 2 IMPORTANT: Before doing any maintenance to the machine switch it OFF and unplug it. -
Page 11: Maintenance
Operation DISCHARGING PROCEDURES To discharge processed product from Blender Models proceed as follows: 1. Turn machine OFF. 2. Remove Lid Nº01 (Pic. 01). 3. Press Lock Pedal Nº06 (Pic. 01) down. 4. Tilt Cup Nº02 (Pic. 01) holding its handle and discharge processed product as needed. -
Page 12: Cautions With Stainless Steel
Maintenance pulleys and nor between the chain and the gears. Precautions Check if motors and sliding or turning parts of the machine produce abnormal noises. Check the tension of the belts and chains and replace the set when belt or chain show signs of being worn out. When checking tensions of belts or chain DO NOT introduce your fingers between belts and pulleys, nor between the chains and gears. -
Page 13: Analysis And Problems Solving
Maintenance (except for the neutral ones), common steel particles, residue of sponges or common steel wool, and also other abrasives. ANALYSIS AND PROBLEMS SOLVING Problems, causes and solutions The High Performance Tilting Blenders were designed to operate with the need of minimum maintenance but the natural wearing caused by long use of the equipment may occasionally cause some malfunctions. -
Page 14: Parts Breakdown
Parts Breakdown Model BL-BR-0015 37969... - Page 15 Seal V´Ring 16,5x10,5x5,5 for 37969 20378.5 AE685 57018.4 for 37969 38557 Screw Nut DIN 934 ZB for 37969 02729.4 27720 Omcan Logo (Machines) for 37969 27154.3 AE686 Complete Cutting Unit for 37969 57032.0 27693 Washer L.A8,4 ZB for 37969 02730.8 38302 PFS Auto BROC 4,2x13 ZB for 37969 29442.0...
- Page 16 Parts Breakdown Model BL-BR-0025 31502...
- Page 17 Seal V´Ring 16,5x10,5x5,5 for 31502 20378.5 79067 Pedal Separator for 31502 51024.6 27695 Allen Screw M6x8 for 31502 03188.7 27720 Omcan Logo (Machines) for 31502 27154.3 AE686 Complete Cutting Unit for 31502 57032.0 24023 Spring Rocker for 31502 04870.4 38302 PFS Auto Broc 4,2x13 ZB for 31502 29442.0...
-
Page 18: Electrical Schematics
Electrical Schematics Model BL-BR-0015 37969 Model BL-BR-0025 31502... -
Page 19: Product Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 20 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
