TE Connectivity FP20 auto Assembly And Installation Instructions

Operating Frequency (MHz)*
Nominal Impedance (Ohms)
Number of Ports
Dimensions – L x W x H – mm (in.)
Cable Length/Connector
Antenna Radome Material
Antenna Baseplate Material
Antenna Color
Operating Temp. (°C)
*
Subject to antenna model

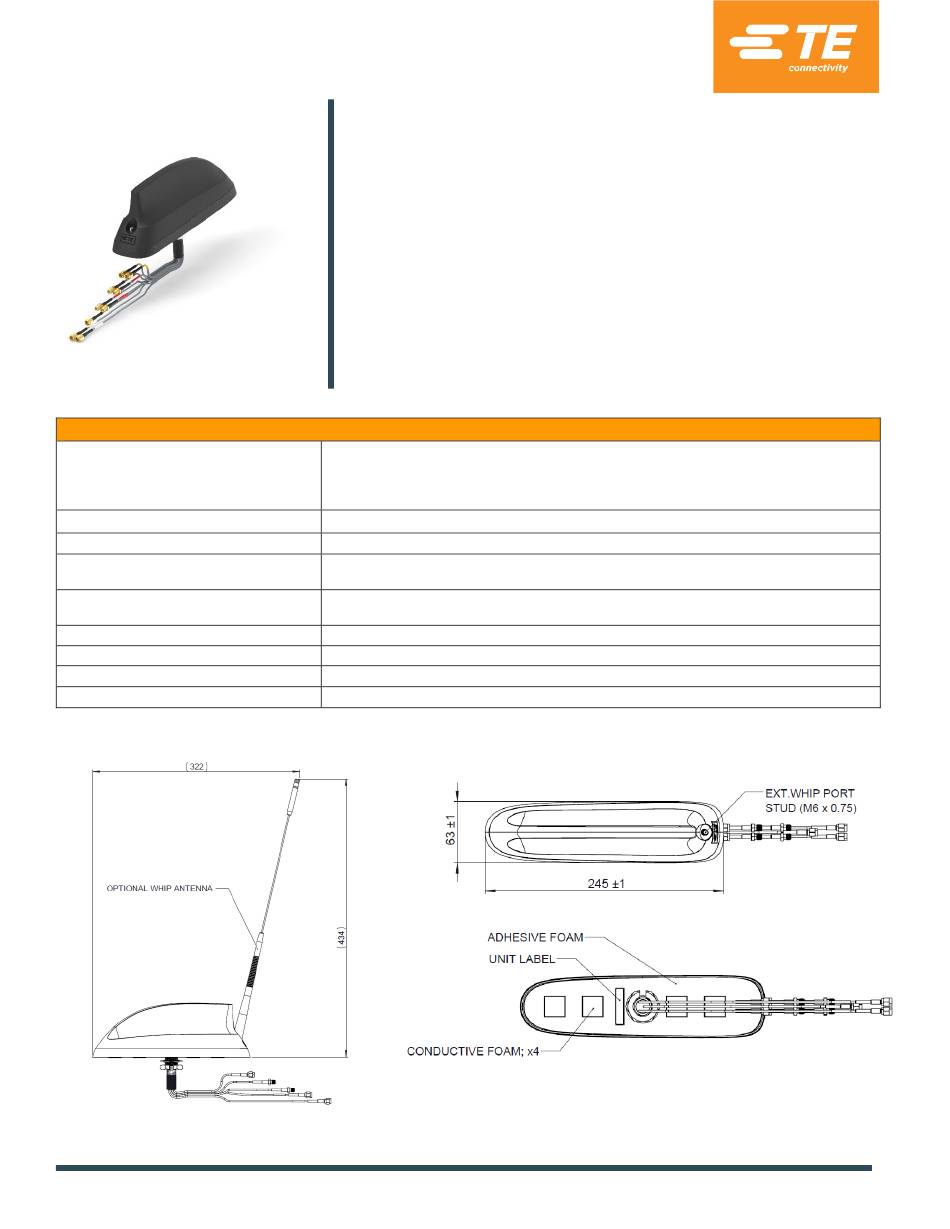

MOUNTING & OUTLINE
*
*
Some FP20 auto/FP40 auto antennas are available without a whip port
DIGITAL DATA NETWORKS / INSTALLATION MANUAL – FP20 AUTO & FP40
FP20 auto & FP40 auto
Assembly and Installation Instructions
MULTI-PORT VEHICLE ANTENNAS
These antennas are designed for intelligent transportation and public
safety applications for 5G LTE communication combining devices with
two-way radio capabilities.
A single housing with options for MIMO 4G/5G LTE cellular, MIMO Wi-Fi
6E and GNSS. Plus, an external whip port for VHF, UHF, 7/800 MHz or tri-
band (VHF, UHF, 7/800MHz) whip antennas.
SPECIFICATIONS
LTE: 617-698, 698-960, 1427-1511, 1690-4000, 4000-7200
WI-FI: 2400-2500, 4900-6000
GNSS: 1561.098±2.046, 1559-1610, 1166-1186, 1602±5
External Whip: VHF, UHF, 7/800 MHz and Tri-Band (VHF, UHF, 7/800MHz) Options
No External Whip: 245 X 63 X 84 (9.6 X 2.5 X 3.3)
With External Whip: Height varies by whip model
- Staggered exposed pigtail cables (200mm to 320mm) with SMA connectors
- 5M extension cable terminated with a variety of connector options
50
6 to 9 port options
PC, UL94-V0
Aluminum
Black
-40 to +85
