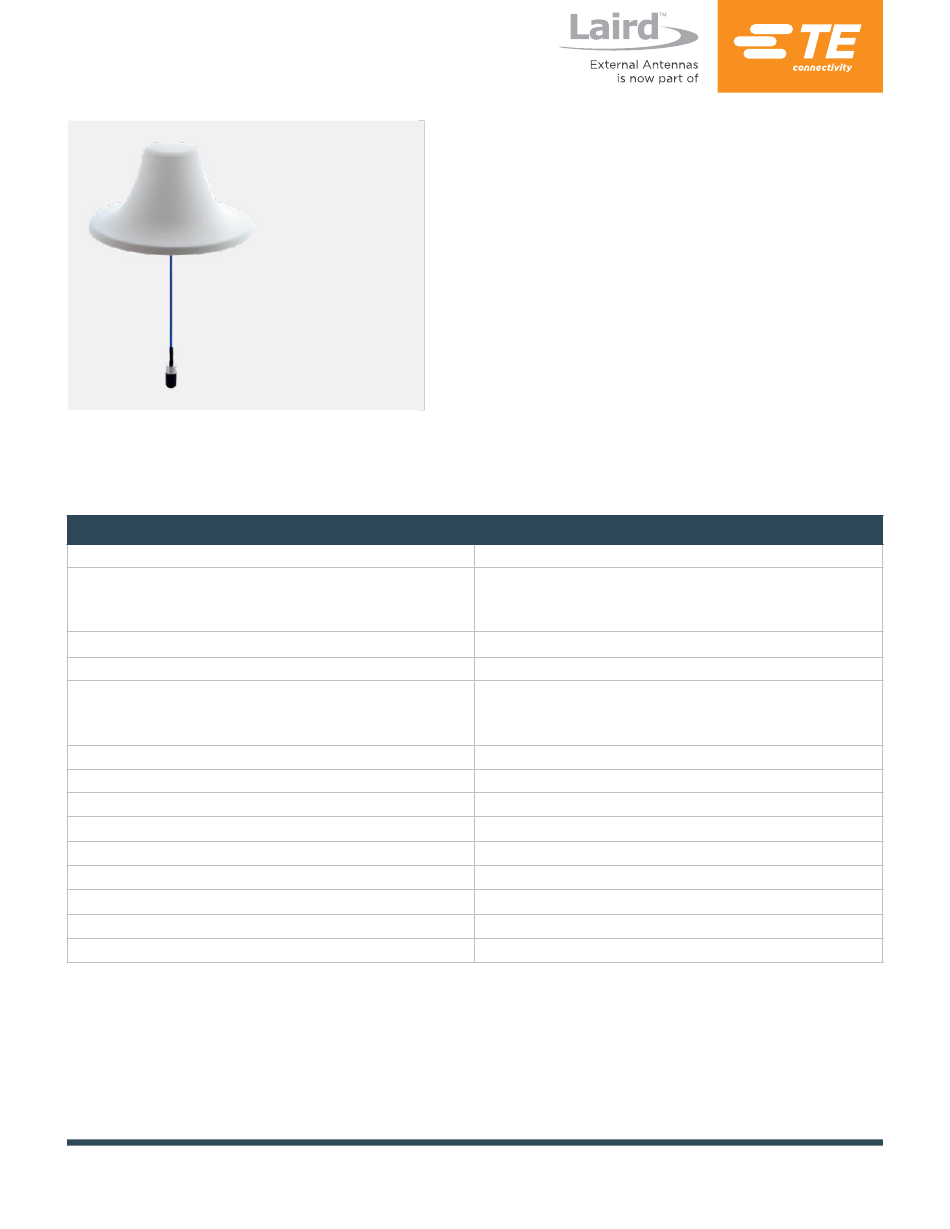

Please read all instructions carefully before attempting
to install and use this product.
SPECIFICATIONS
PARAMETER
Laird Model Number
Frequency
VSWR 380-520MHz
VSWR 698-960, 1710-6000MHz
Typical Max Gain
Polarization
Impendance
RF Connector
Radome Color
Operating Temperature
Storage Temperature
Water/Foreign Body Ingress
Antenna Weight
DATA AND DEVICES
/ CMS38606
Patent Pending
Power
CMS38606
Assembly and Installation Instructions
PERFORMANCE
2.6dBi @ 380-520MHz
3.1dBi @ 600-960MHz
5.8dBi @ 1395-1435MHz
7.3 dBi @ 1690-6000MHz
50W @ ambient temp 25o C (77oF)
CMS38606-30NF
380-520MHz
600-690MHz
1395-1435MHz
1690-6000MHz
3.0:1 Max
2.0:1 Max
Vertical
50Ω
Type N(f)
White
-30°C +70°C
-40°C +85°C
IP-67
0.8kg (1.76 lbs)
Advertisement
Related Manuals for TE Connectivity Laird CMS38606
Summary of Contents for TE Connectivity Laird CMS38606
- Page 1 CMS38606 Patent Pending Assembly and Installation Instructions Please read all instructions carefully before attempting to install and use this product. SPECIFICATIONS PARAMETER PERFORMANCE Laird Model Number CMS38606-30NF 380-520MHz 600-690MHz Frequency 1395-1435MHz 1690-6000MHz VSWR 380-520MHz 3.0:1 Max VSWR 698-960, 1710-6000MHz 2.0:1 Max 2.6dBi @ 380-520MHz 3.1dBi @ 600-960MHz Typical Max Gain...
- Page 2 SAFETY The CMS38606 and all associated equipment should be installed in accordance with all applicable local and national electrical code guidelines to ensure safe operation. LOCATION For the best results, mount the antenna near the center of the coverage area. A line-of-sight path between the antenna and active floor locations generally works best.
- Page 3 OPTIONAL MOUNTING Note: The optional mounting kits are NOT INCLUDED with the antenna; it needs to be purchased separately DATA AND DEVICES / CMS38606...
- Page 4 TE Connectivity will, at its option, either repair or replace any part of its products that prove defective because of improper workmanship or materials. This limited warranty is in force for the useful lifetime of the original end product into which the TE Connectivity product is installed. Useful lifetime of the original end product may vary but is not warrantied to exceed one (1) year from the original date of the end product purchase.
