TE Connectivity L000423 Series Assembly And Installation Instructions

Operating Frequency (MHz)*
Nominal Impedance (Ohms)
Number of Ports
Dimensions – Length x Width x Height
– mm (in.)
Cable Length/Connector
Antenna Radome Material
Antenna Baseplate Material
Antenna Color
Operating Temp. (°C)
*
Subject to antenna model

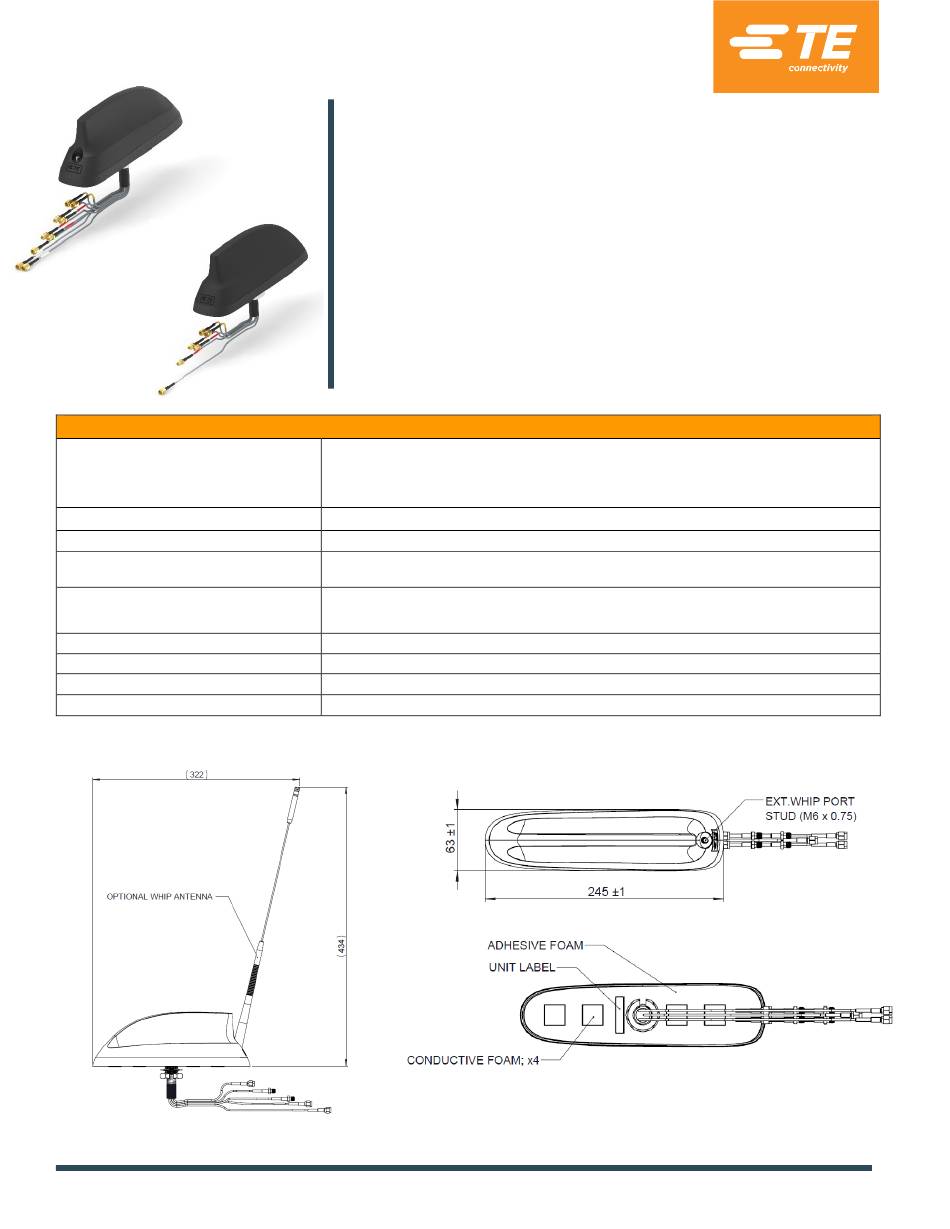

Mounting & OUTLINE
DATA AND DEVICES / INSTALLATION MANUAL –
L000423-XX
Assembly and Installation Instructions
UP TO 9 PORT VEHICLE ANTENNA, 5G, WI-FI, GNSS
This is an antenna for intelligent transportation and public safety
Applications for 5G LTE communication combining devices with two-way
radio capabilities. A single housing with optional to the max of 2x MiMo
4G/5G LTE cellular elements, max of 2x GNSS & max of 4x MiMo Wi-Fi
6E with an external whip port - VHF, UHF, 7/800 MHz and Tri-Band (VHF,
UHF, 7/800MHz).

SPECIFICATIONS

LTE: 617-698, 698-960, 1427-1511, 1690-4000, 4000-7200
WI-FI: 2400-2500, 4900-6000
GNSS: 1561.098±2.046, 1559-1610, 1166-1186, 1602±5
External Whip: VHF, UHF, 7/800 MHz and Tri-Band (VHF, UHF, 7/800MHz) Options
No External Whip: 245 X 63 X 84 (9.6 X 2.5 X 3.3)
With External Whip: 245 X 63 X 434 (9.6 X 2.5 X 17.1)
Stagger exposed cable length (200mm to 320mm) with SMA-M for all ports except
Wi-Fi ports with SMA-F mating with 5M extension cable length terminated with
preference user application.
L000423-XX
50
6 to 9 port options
PC, UL94-V0
Aluminum
Black
-40 to +85
