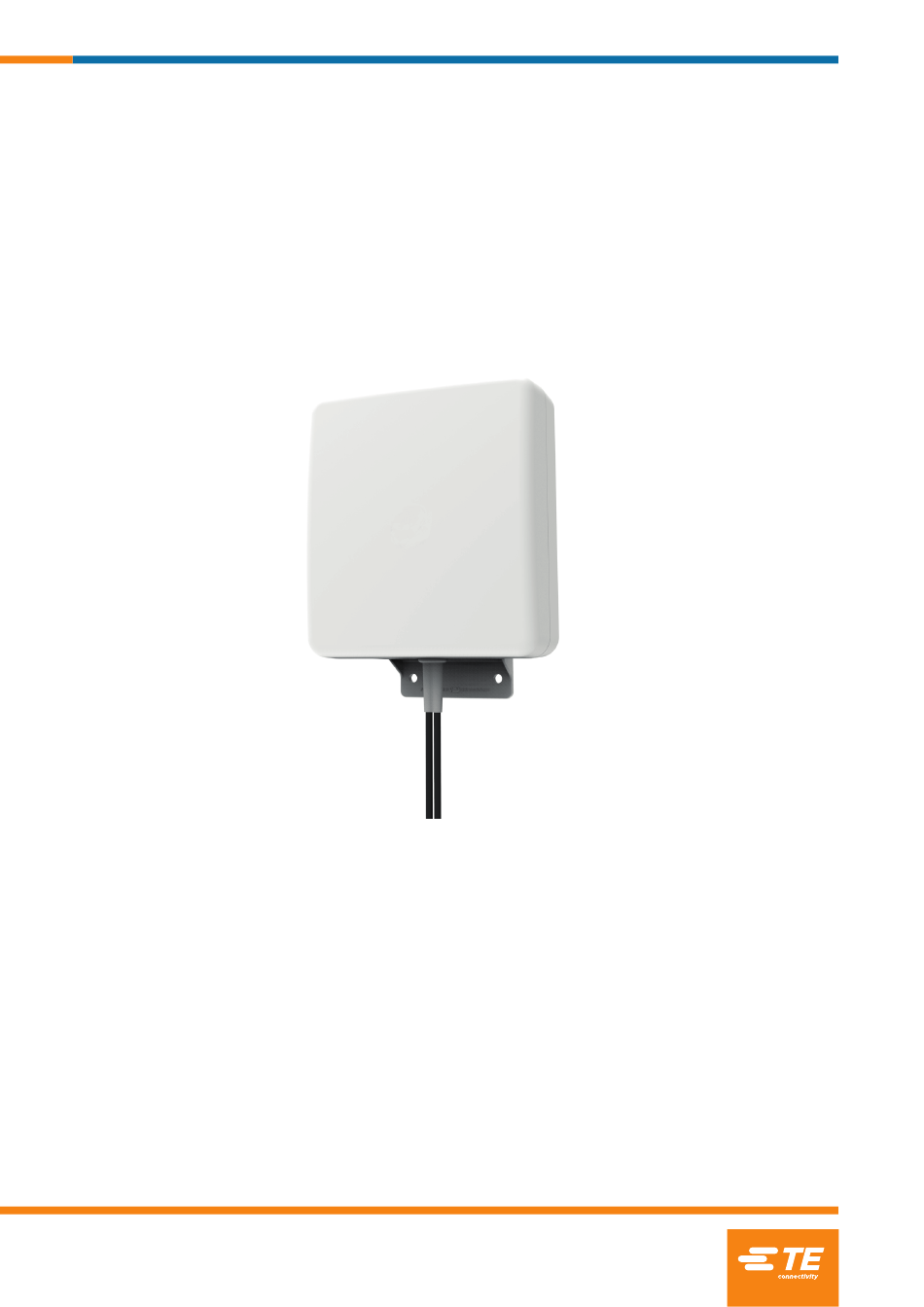

- Page 1 3G/4G/5G MIMO HIGH GAIN ANTENNA INSTALLATION GUIDE AND SAFETY INFORMATION 3G/4G/5G MIMO HIGH GAIN ANTENNA /// INSTALLATION GUIDE...
- Page 2 3G/4G/5G MIMO HIGH GAIN ANTENNA FOR MAST, WAL AND DESK MOUNTING A. SELECTING A POSITION PACKAGE CONTENTS The device is shipped with the following items. If any of these items is missing or damaged, please contact your cus- tomer service representative for assistance. 1x Antenna 1x U-Bolt 4x plain washers...
- Page 3 3G/4G/5G MIMO HIGH GAIN ANTENNA FOR MAST, WAL AND DESK MOUNTING IMPORTANT SAFETY INFORMATION RF Safety Note – Ensure that the antenna is mounted in such a way that no person is likely to be within a distance of 30cms (12”) from the antenna during use. Ensure that the antenna is used only as supplied the co-axial cables should not be cut shorter or otherwise modified.
- Page 4 3G/4G/5G MIMO HIGH GAIN ANTENNA FOR MAST, WAL AND DESK MOUNTING C. MAST MOUNTING INSTRUCTIONS To Mast mount this antenna you will need: 1x Antenna, 1x U-Bolt, 1x U-Bolt Plate, 2x Washers, 2x spring washers, 2x Nuts MAST MOUNTING THE ANTENNA EXTERNALLY Ensure that the selected mounting location can be safely accessed with the equipment that you have available and mount the antenna so that it has at least 1 metre (3.3’) of clearance from all obstructions if possible.
- Page 5 3G/4G/5G MIMO HIGH GAIN ANTENNA FOR MAST, WAL AND DESK MOUNTING WALL MOUNTING THE ANTENNA Fix the mounting bracket to the external wall or other flat surface using suitable screws and wall plugs (not sup- plied). Fix the mounting bracket to the antenna using the the washers and screws supplied. Fix the antenna to the wall mounting bracket Secure the antenna in place and waterproof the exposed connections.Fully tighten the mounting hardware.
