Logitech CRAYON Manual

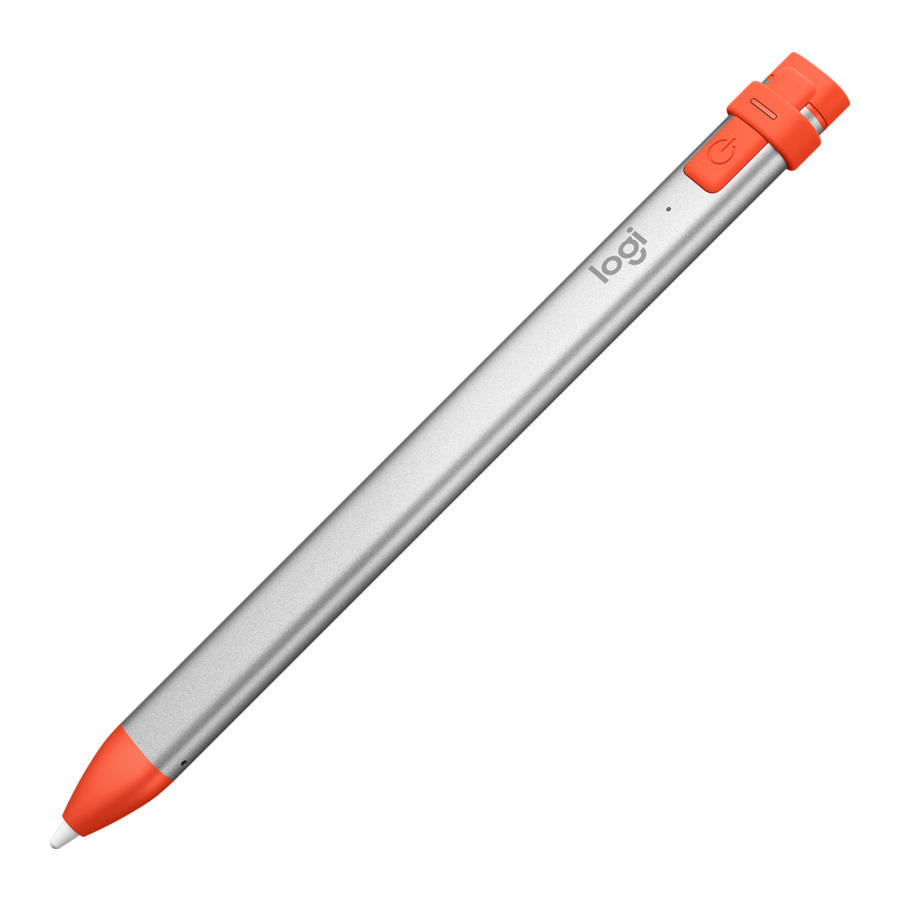

Device Overview

How to Install Replaceable Parts

REPLACING TIP AND TIP COVER

1. Find the removal tool

2. Align the tool with the two holes in the pencil tube

3. Squeeze the tool and pull off the tip cover

4. Twist the tip counter-clockwise to remove

5. Insert new tip and twist clockwise to tighten securely

6. Insert new tip cover into the pencil tube until you hear a click


REPLACING THE CAP

1. Open the cap

2. Push the cap back, and slowly pull the cap ring off of the pencil tube

3. Align new cap to the top of the pencil tube

4. Slide the cap ring onto the pencil tube until the slit fits securely around the notch
