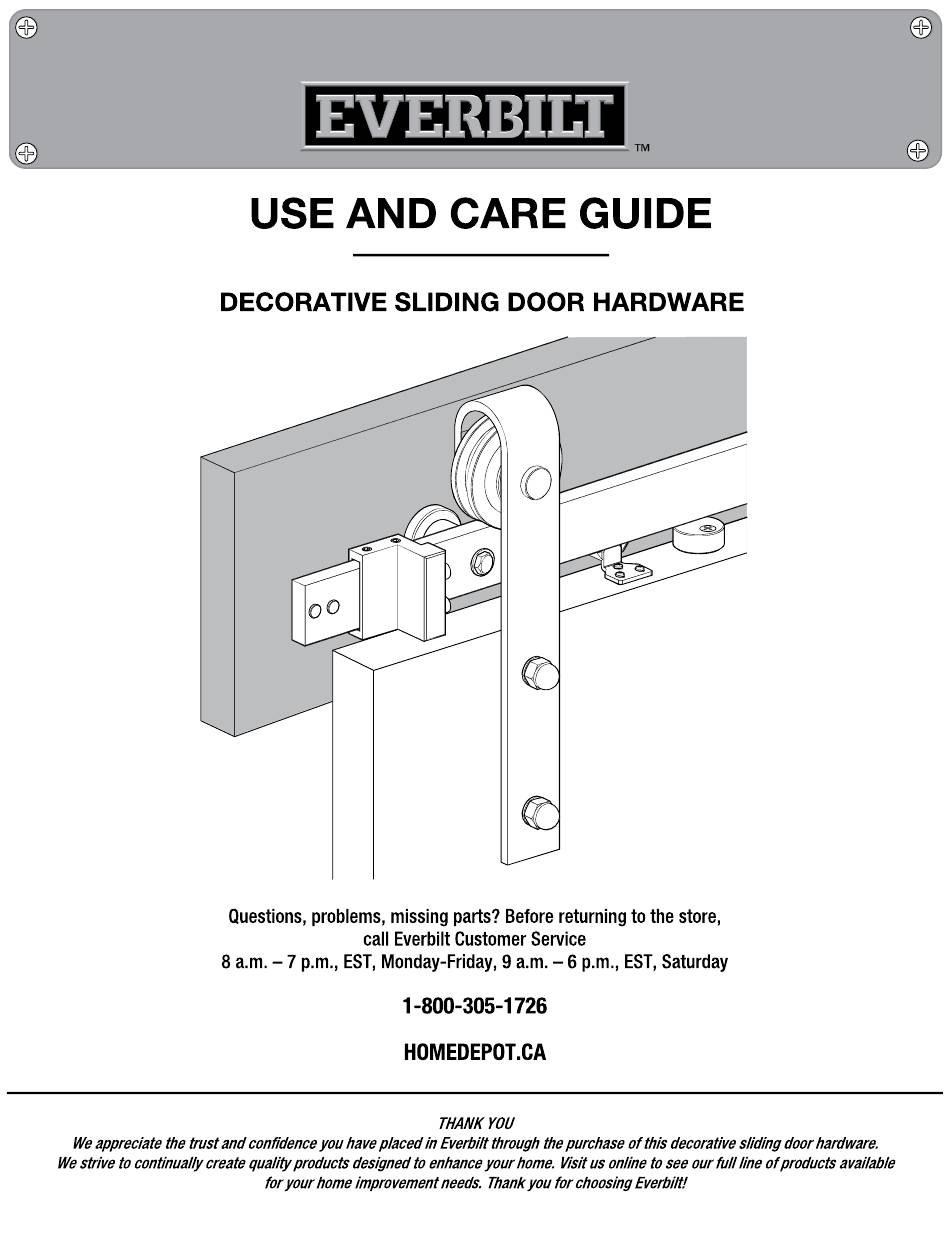

- Page 1 Item #1001-697-701 Model #33...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............2 Tools Required .................3 Safety Information ............2 Hardware Included ..............3 Warranty ................. 2 Required Parts (Not Included) ..........4 What is Covered ...............2 Required Dimensions ...............4 What is Not Covered ..............2 Installation ..............5 Pre-installation .............. -
Page 3: Pre-Installation
Pre-installation PLANNING INSTALLATION Compare all parts with the Hardware Included list. If any part appears missing or damaged, do not proceed with the installation and contact Customer Service. TOOLS REQUIRED Electric Safety Phillips Level Drill goggles screwdriver Drill bits - 0.110 in. (2.8 mm) Wrench and - 0.118 in. -
Page 4: Required Parts (Not Included)
Pre-installation (continued) REQUIRED PARTS (NOT INCLUDED) WARNING: DO NOT install the track directly onto drywall. It is recommended to install a header board above the door opening. 78 ¾ in. A 1 x 6 wooden header board (1) trimmed to the same length as the track (AA) (2000 mm) (78-3/4 in. -
Page 5: Installation
Installation Installing a header board Installing the soft closer Determine the height of your door. Utilize the dimensions in Fasten the soft closers (PP) (left assembly and right this step to position the header board. assembly) on both ends of the track (AA). Position the header board (1) at the desired location and use a level to ensure the board is even. - Page 6 Installation (continued) Installing the track (78-3/4 in./2000 mm) □ Optional when used for 40 in. or 42 in. doors, please connect the track extension (RR) to the track (AA) using the track adapters (GG). □ Center the track (AA) on the header board and mark the large, non-slotted hole at one end of the track.
- Page 7 Installation (continued) Preparing the door (single floor Preparing the door guide) Two floor guide options are included. The single floor guide requires Position the template (NN) on the front of the door and align that you mortise a groove in the bottom of the door with a router. it with the top edge of the door.
- Page 8 Installation (continued) Installing the floor guides Installing the actuators Slide the door as far as possible to the open position Fasten the soft closer (PP) (left assembly and right without allowing the door fall off the track. assembly) on both ends of the track. Before mounting the track, turn it to ensure the soft closers are positioned Measure 0.5 in.
- Page 9 Installation (continued) Installing the anti-jump discs continued Center an anti-jump disc (KK) on the top edge of the door, a Right minimum of 2 in. (51 mm) away from the inside edge of the hanger. Ensure the hole is closest to the front of the door. Repeat for the opposite end of the door.
- Page 10 Installation (continued) Installing the door stops BB/MM Slide the door to the closed or open position and put the door stops (CC) on the track. Fasten the door stops (CC) when they touch hangers (EE). Connecting multiple tracks (if needed) Use the track adapter plate (HH) and screws (GG) to connect multiple tracks and install bi-parting doors.
- Page 11 Installation (continued) Installing the hole caps Install hole caps (LL) in the small holes. Installing the door handle Install the door handle (QQ) to the door using the included screws. Recommended 2.755in (70mm) HOMEDEPOT.CA Please contact 1-800-305-1726 for further assistance.
- Page 12 Questions, problems, missing parts? Before returning to the store, call Everbilt Customer Service 8 a.m. – 7 p.m., EST, Monday-Friday, 9 a.m. – 6 p.m., EST, Saturday 1-800-305-1726 HOMEDEPOT.CA Retain this manual for future use.
