Item #
1002 782 611
1002 803 079
Model #
9236046 (20 in.)
9236048 (22 in.)

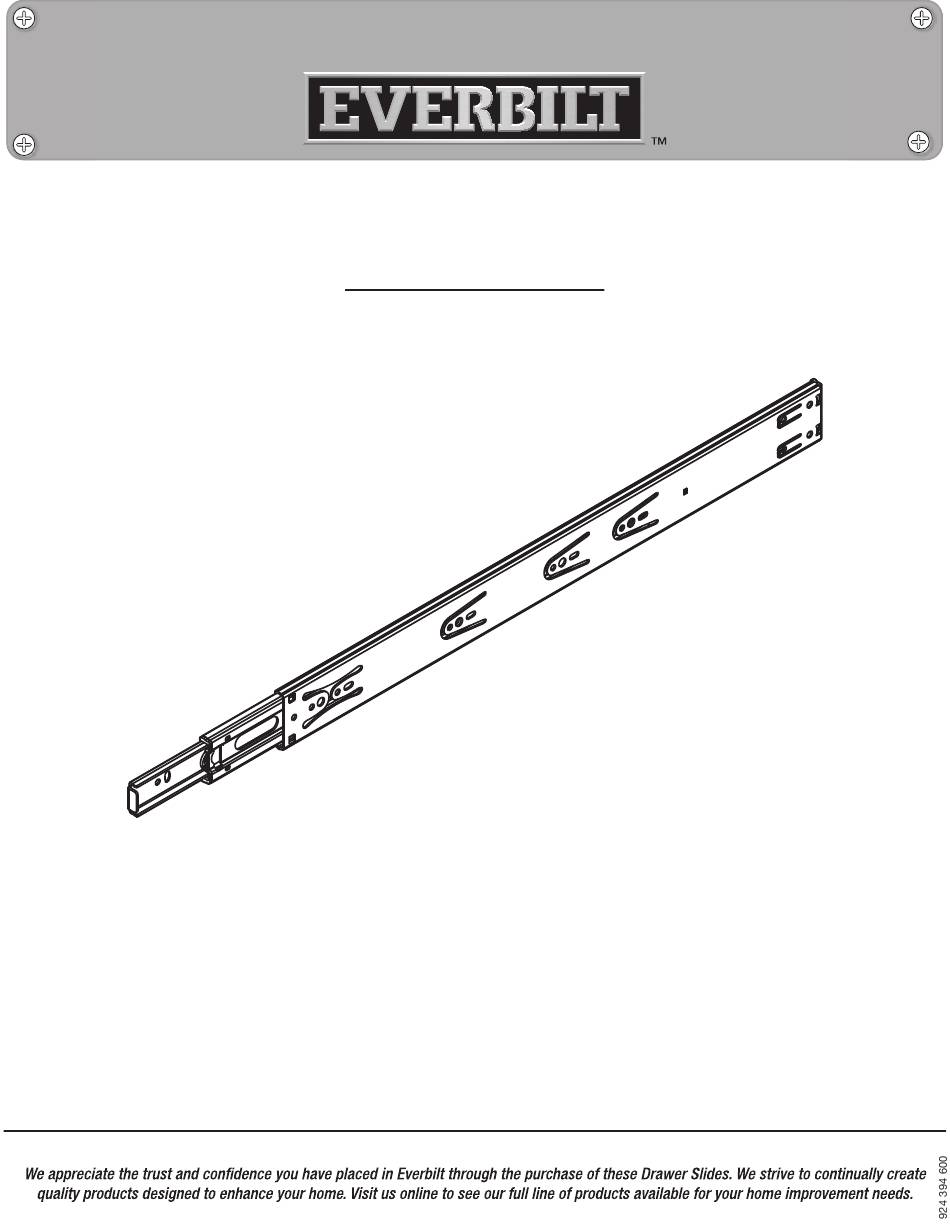

USE AND CARE GUIDE

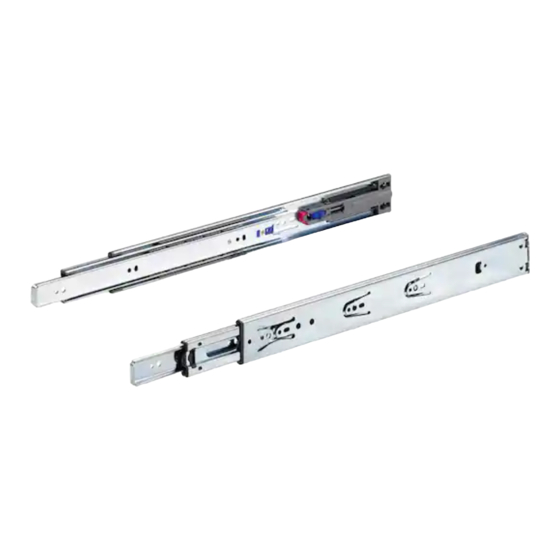

PUSH TO OPEN BALL BEARING DRAWER SLIDES
Questions, problems, missing parts? Before returning to the store,
call Everbilt Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-800-305-1726
HOMEDEPOT.COM
Retain this manual for future use.
THANK YOU
Thank you for choosing Everbilt!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Everbilt 9236046
Summary of Contents for Everbilt 9236046
- Page 1 Questions, problems, missing parts? Before returning to the store, call Everbilt Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-800-305-1726 HOMEDEPOT.COM Retain this manual for future use. THANK YOU Thank you for choosing Everbilt!
- Page 2 Manufacturer’s option, refund the purchase price. Repair, replacement, or refund of the original purchase price is your sole remedy under this or any other warranty on the product, whether expressed or implied. For additional details and questions, please contact Everbilt Customer Service at 1-800-305-1726. Pre-Installation PLANNING INSTALLATION Please read and understand this manual before installing this product.
- Page 3 Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Bracket Drawer Slide #6x1/2 in. Screw Installation Options These slides are intended for frameless cabinets. For face frame cabinets, the socket set is required. Frameless Face Frame HOMEDEPOT.COM Please contact 1-800-305-1726 for further assistance.
- Page 4 Dimensions Please review these diagrams and measure and mark your installation location before you begin the installation procedures. To avoid binding, the drawer or pull-out-shelf must be 1/2 in. (12.7 mm) narrower than the cabinet opening on each side. The top and bottom of the drawer or pull-out-shelf bottom should have a 1/8 in. (3.2 mm) minimum clearance from the cabinet opening.
- Page 5 Installation Marking the slide locations on the Separating the slides drawer Press the release lever (1) and remove the drawer slides (B) from Mark 1-1/4 in. (32 mm) from the bottom of the drawer. Align the each bracket (A). top of the drawer slides (B) with the marks on each side of the drawer.
- Page 6 Installation (continued) Marking the bracket positions Mark “X” from the bottom of the mark. Align the top of the bracket (A) with the mark, 1/16 in. from the front of the cabinet. Installing the brackets into the cabinet and drawers Make sure each bracket (A) is level and secure inside the cabinet with screws (C).
