Huawei E583C Quick Start Manual

Wireless modem
Hide thumbs

Advertisement

Table of Contents

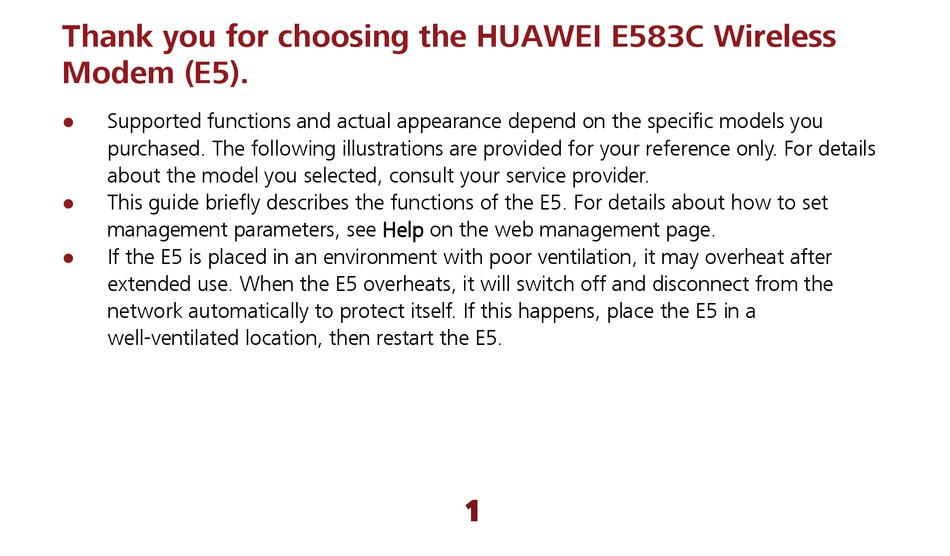

Thank you for choosing the HUAWEI E583C Wireless
Modem (E5).
Supported functions and actual appearance depend on the specific models you
purchased. The following illustrations are provided for your reference only. For details
about the model you selected, consult your service provider.
This guide briefly describes the functions of the E5. For details about how to set
management parameters, see Help on the web management page.
If the E5 is placed in an environment with poor ventilation, it may overheat after
extended use. When the E5 overheats, it will switch off and disconnect from the
network automatically to protect itself. If this happens, place the E5 in a
well-ventilated location, then restart the E5.
1

Advertisement

Table of Contents
loading

Related Manuals for Huawei E583C

Summary of Contents for Huawei E583C

  • Page 1 Thank you for choosing the HUAWEI E583C Wireless Modem (E5). Supported functions and actual appearance depend on the specific models you  purchased. The following illustrations are provided for your reference only. For details about the model you selected, consult your service provider.
  • Page 2 Getting to Know Your E5 Packing List The package should contain the following items. If any of the items are missing or damaged, contact your local dealer immediately. Quick Start Guide Main unit Battery Data cable Charger Safety Information Some accessories are optional and are not provided with the modem. To purchase any optional accessories, contact your local dealer.

  • Page 3: Connection Scenarios

    Connection Scenarios A Wi-Fi device or computer can be connected to the Internet through the E5. The actual connection procedure depends on the operating system of the Wi-Fi device or computer. The connection scenarios illustrated here are for your reference. Scenario 1: Multi-device access via Wi-Fi Scenario 2: One-device access via USB Game machine...
  • Page 4 Scenario 3: Multi-device access via Wi-Fi and USB at the same time Game machine Smart phone Laptop Digital camera...
  • Page 5 Appearance Item External antenna interface Power button USB connector WPS button Screen Note: Wi-Fi: Wireless Fidelity  WPS: Wi-Fi Protected Setup ...
  • Page 6 Screen Item Signal strength Network Wi-Fi enabled  Number of devices connected  Internet connection New messages  Number of new messages  Battery level Roaming status M: Manual mode  A: Auto mode ...

  • Page 7: Before You Start

    Before You Start Installing the SIM Card and the Battery Caution: Do not use any card that is not standard or is incompatible with the E5. Otherwise, the E5 may be damaged. Insert the SIM card in the card slot. Be sure that the SIM card is facing in the right direction, as shown in figure 2, and then slide the SIM card into the slot.
  • Page 8 Installing the microSD Card Note: The microSD card is an optional accessory. If a microSD card  did not come with your modem, you may purchase one yourself. To remove the microSD card, press in the card gently.  The microSD card will pop out for removal. Do not remove the microSD card when it is in use.

  • Page 9: Charging The Battery

    Charging the Battery Note: If the battery has not been used for a long time, it must be charged first. Method 1: Using the charger Caution: Only use chargers compatible with the E5 and provided by a designated manufacturer. Use of an incompatible charger or one from an unknown manufacturer may cause the E5 to malfunction, fail, or could even cause a fire.

  • Page 10: Accessing The Internet Via Wi-Fi Connection

    Accessing the Internet via Wi-Fi Connection Note: By default, management parameters are preset on the E5 according to the requirements of the service provider. Follow the steps below to quickly access the Internet. For the details about how to set management parameters, see Help on the Web management page.
  • Page 11 ® 2. Establish a Wi-Fi Connection (Take a computer with Windows XP operating system as an example) Make sure that the Wi-Fi is enabled. Select Start > Control Panel > Network Connections > Wireless Network Connection. Note: To set up a Wi-Fi connection, the PC must have a wireless network adapter installed.
  • Page 12 Note: If the encryption parameter is already set for the E5, the Wireless Network Connection  dialog box is displayed. Enter the network key in the dialog box as shown below. The SSID and key label are affixed to your E5, as illustrated below. ...
  • Page 13 For example, if you are subscribed to the time-based network service, you are recommended to select Manual mode. For details about the service expense, consult your service provider. Mode Operations Auto After the E5 is powered on, it will connect to the Internet automatically if data transmission is required.

  • Page 14: Accessing The Web Management Page

    Accessing the Web Management Page Make sure that the connection between the E5 and the client is a proper one. Start the Internet browser and enter http://192.168.1.1 in the address bar. Enter the password, and then click Login. Note: The default password is admin. Validating the PIN Code If PIN code protection is enabled, log in to the web management page and follow the prompts to enter the correct PIN code.

  • Page 15: Daily Use

    Daily Use Power Saving Mode If the E5 is idle for a period of time, the screen turns off. If the E5 is using battery power and does not process data transmissions for 30 minutes, it goes to deep sleep state and Wi-Fi is disabled. When the E5 is in deep sleep state, press any key to enable Wi-Fi and light up the screen.

  • Page 16: Restoring Factory Defaults

    enable the WPS function of the E5. Enable the WPS function of the client. Note: For WPS operations on the client, see the user guide of the client. Restoring Factory Defaults If you forget the changes you have made to some parameters, you may restore factory defaults and reconfigure the E5.
  • Page 17 Tips If you are experiencing difficulties using the E5, try the following: See Help on the web management page.  Restart the E5.  Restore the factory defaults.  Contact your service provider. ...
  • Page 18 Example 1: Wi-Fi Connection to Game Machine (Sony PSP) Turn on the PSP WLAN switch. Select Settings > Network Settings. Select Infrastructure Mode to connect to your local Wi-Fi access point. Select New Connection to specify an easy to remember connection name. Select Scan to detect all networks within range.
  • Page 19 WEP: The Wi-Fi key of the E5.  The default SSID and key label are affixed  to the E5. Press the ► button of your game *************** 100% machine to continue, and then press the X button to save the settings. Select Test Connection to check the connection.

  • Page 20: Example 2: Wi-Fi Connection To A Smart Phone (Iphone)

    Example 2: Wi-Fi Connection to a Smart Phone (iPhone) Select Settings > Wi-Fi, and then turn on Wi-Fi. Automatically detect the networks in range and display the access point list. Select a network that the E5 is using. If necessary, enter a password and tap Join. (Networks requiring a password appear with a lock icon) Note: Some Wi-Fi clients such as iTouch, PS3 and...

  • Page 21: Frequently Asked Questions (Faq)

    Frequently Asked Questions (FAQ) What can I do if a client cannot access the Internet? Check that the client is properly connected to the E5. Check power status to ensure that the E5 is powered on. Check signal strength to ensure that the area is covered by the network. Check that the network mode is correct.
  • Page 22 Check that the network adapter of your client operates properly. If the problem persists, please consult your service provider. What can I do if a client cannot access the WLAN? If interference seems to be the problem, adjust the position of the E5 or move it to a more favorable location.
  • Page 23 Version: V100R001_04 Part Number: 31010CWV...
