HP EliteBook 8460p Manual

Product Overview

Product Overview

How to remove the battery

  1. Slide the battery release latches (1) to release the battery.
  2. Remove the battery (2) from the computer.

How to adjust the volume

Increase: Press Fn + F7.
Decrease: Press Fn + F6.
Mute: Press the Mute button above the Delete key.

How to connect to a projector

  1. Plug the video cable into the external monitor port (VGA) on the back of the laptop.
  2. Press Fn+F4 and select the option to enable both the laptop LCD and external monitor/projector.
  3. Use Windows Display Settings to adjust the resolution to the desired setting.

How to adjust the brightness

Increase: Press Fn+F10.
Decrease: Press Fn+F9.
Turn on/off Ambient light sensor: Automatically adjusts brightness based on the brightness of the surroundings.
Press Fn+F11 to toggle on/off.

Notification LEDs

(from left to right)

Wireless light

  • White: Integrated wireless device on
  • Amber: Wireless devices off

Power light

  • On: Computer on
  • Blinking: Sleep/Standby mode
  • Off: Computer off or hibernating

Battery light

  • Amber: Battery charging
  • White: Battery close to full charge capacity
  • Amber (Blinking): Battery low
  • Off: Computer using battery for power or power cord is plugged in, the battery is fully charged

Drive light

  • Blue: Accessing hard drive or optical drive
  • Amber: Hard drive temporarily parked
  • Off: No disk activity

Touchpad on/off light

  • Off: Touchpad is enabled
  • Amber: Touchpad is disabled

How to turn on/off the Wireless card

Press the Wireless button above the Backspace key to toggle the wireless card on/off.

Product details

Disclaimer: The manufacturer may change hardware specification during production. These changes may cause slight variations in hard drive size, processor speed, etc.

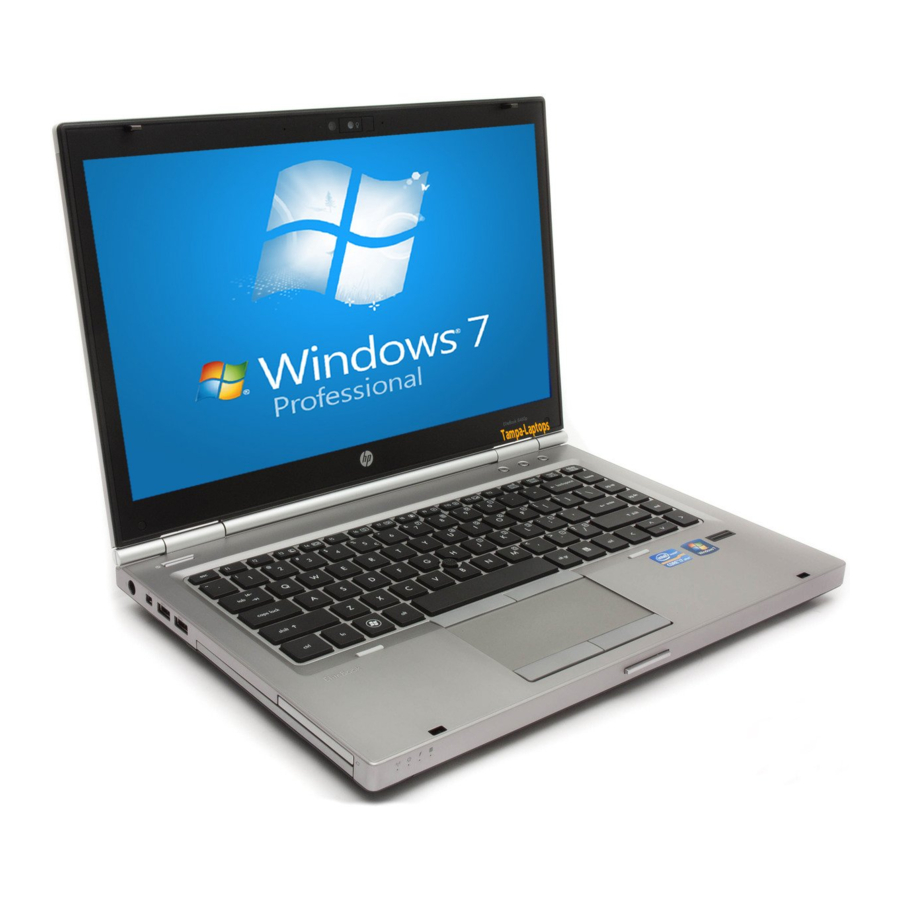

Model HP EliteBook 8460p
Description Full size HP Wide Screen Laptop
Processor Intel Core i5-2520M (2.50GHz)
Memory (RAM)
  • Windows (64-bit): 8 GB
  • Windows (32-bit): 4 GB (32-bit platform is only able to utilize maximum of 3 GB RAM)
Hard Drive 256GB Solid State Drive
Optical Media DVD RW LightScribe Optical Drive
Display 14.1 HD+ LED Display (1600 x 900)
Graphics Integrated Intel HD Graphics 3000
Webcam Integrated 720p webcam
PC Card Slots
  • ExpressCard 54
  • SmartCard reader
  • SD/ MMC
Wireless Intel 6300 802.11a/b/g/n
I/O Ports and Connectors
  • 2 USB 3.0
  • 1 USB 2.0-Powered (allows USB devices to be powered/charged when the laptop is turned off)
  • 1 eSATA/USB 2.0 combo port
  • VGA External Monitor port
  • Display Port
  • RJ-11
  • RJ-45
  • Headphone
  • Microphone
  • 1394a Firewire
  • AC power connector
  • Docking connector
  • Secondary battery connector
Keyboard Standard
Pointing Device Trackpoint and Touchpad
Privacy Filter Optional
Bluetooth Bluetooth 2.1+
Dimensions 1.25"H x 13.31"W x 9.11"D
Weight 4.68 lbs.

Function key functions

Fn + F3: Sleep
Fn + F4: Display toggle
Fn + F6: Volume down
Fn + F7: Volume up
Fn + F8: Battery settings
Fn + F9: Decrease LCD brightness
Fn + F10: Increase LCD brightness
Fn + F11: Ambient light sensor
Fn + Scroll: Number Lock (Num Lk)
Fn + Pause Break
Fn + Insert: Print Screen (Prt Sc)
