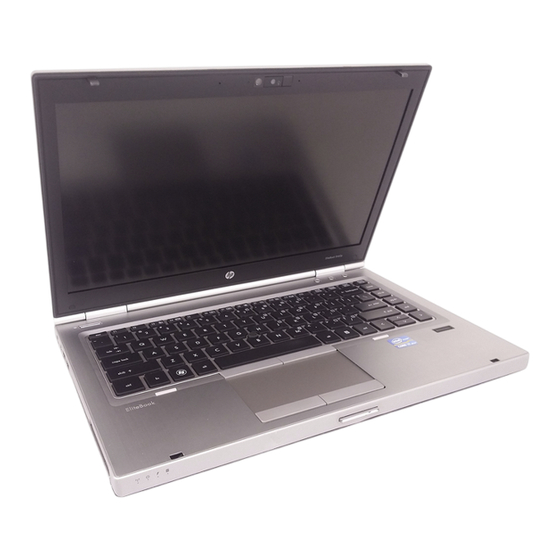

HP EliteBook 8460w Quickspecs

Mobile workstation
Hide thumbs Also See for EliteBook 8460w:

Advertisement

Quick Links

Download this manual See also: Maintenance and Service Manual, User Manual
QuickSpecs
Overview
1.
WLAN antennas (3)
2.
WWAN antennas
3.
Dual-microphone array
4.
Optional 720p HD webcam
5.
Ambient Light Sensor
6.
HP Night Light on/off button
7.
HP Night Light
8.
Wireless on/off button with LED indicator
9.
HP QuickWeb button with LED indicator
10. Volume mute button with LED indicator
11. Pointstick
12. HP Fingerprint Sensor
13. Pointstick pick buttons
14. Touchpad on/off button with LED indicator
15. Touchpad with scroll zone
16. Display release latch
DA - 13959 North America — Version 12 — January 29, 2013
HP EliteBook 8460w Mobile Workstation
17. Touchpad pick buttons
18. Stereo speakers (see bottom view)
19. Hard drive activity / HP 3D DriveGuard LED indicator
20. Battery charging LED indicator
21. Power/standby LED indicator
22. Wireless on/off LED indicator
23. ExpressCard/54 slot
24. Upgrade Bay (optical drive or second hard drive)
25. Secure Digital/MultiMedia Card slot
26. (2) USB 3.0 ports
27. 1394a port
28. Power connector
29. Power button with LED indicator
30. Volume down function key
31. Volume up function key
32. HP Power Assistant function key
Page 1

Advertisement

loading

Related Manuals for HP EliteBook 8460w

Summary of Contents for HP EliteBook 8460w

  • Page 1 17. Touchpad pick buttons WWAN antennas 18. Stereo speakers (see bottom view) Dual-microphone array 19. Hard drive activity / HP 3D DriveGuard LED indicator Optional 720p HD webcam 20. Battery charging LED indicator Ambient Light Sensor 21. Power/standby LED indicator HP Night Light on/off button 22.
  • Page 2 QuickSpecs HP EliteBook 8460w Mobile Workstation Overview Stereo headphone/line out Vents Stereo microphone/line in Security lock slot Integrated Smart Card reader RJ-11/modem port eSATA/USB 2.0 combo port 10. VGA/external monitor connector (1) USB 2.0 charging port 11. RJ-45/Ethernet port DisplayPort...
  • Page 3 DisplayPort for high resolution support SRS Premium Sound optimized for high fidelity audio Choice of primary battery to optimize run time or weight: 9-cell (100 WHr), 6-cell (62 WHr), or 6-cell (55 WHr) HP Long Life Battery Choice of two optional external batteries for extended battery life: HP ST09 Extended Life Battery or HP BB09 Ultra Extended...

  • Page 4: Standard Features (Availability May Vary By Country)

    QuickSpecs HP EliteBook 8460w Mobile Workstation Standard Features (availability may vary by country) Processors Generation Intel Core i7 Processors Intel Core i7-2820QM Processor (2.30 GHz, 8 MB L3 cache, 4 cores/8 threads, 45W)* Up to 3.40 GHz with Intel Turbo Boost Technology. Supports a maximum of 32 GB system memory.
  • Page 5 VGA port supports resolutions up to 2048 x 1536 at 75 Hz, and lower resolutions at up to 100 Hz DVI-D (single link) video signal available through DVI port in optional HP Docking Station (sold separately) supports resolutions up to 1600 x 1200 at both full and reduced...
  • Page 6 Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots. NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
  • Page 7 Wireless Technology Keyboard The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard and a drain system that funnels fluid through a hole in the bottom of the notebook. This minimizes the risk of damage to sensitive components underneath.
  • Page 8 QuickSpecs HP EliteBook 8460w Mobile Workstation Standard Features (availability may vary by country) Internal Storage Hard drives 250/320/500/750 GB 7200 rpm SMART SATA II 320 GB 7200 rpm SMART SATA II Self Encrypting Drive NOTE: These hard drives are customer removable and will withstand multiple insertion/removal cycles. Up to 10 GB is reserved for the system recovery software.
  • Page 9 QuickSpecs HP EliteBook 8460w Mobile Workstation Standard Features (availability may vary by country) Audio/Visual SRS Premium Sound™ Integrated stereo speakers Integrated microphone (dual-microphone array when equipped with optional webcam) Button for volume mute; function keys for volume up and down...
  • Page 10 QuickSpecs HP EliteBook 8460w Mobile Workstation Standard Features (availability may vary by country) Planned Workstation ISV MCAD Autodesk AutoCAD Autodesk AutoCAD Mechanical Certifications (Mechanical Autodesk AutoCAD Electrical CAD/Architectural Autodesk Inventor Engineering and Autodesk AutoCAD Architecture Construction) Autodesk AutoCAD Plant3D Autodesk AutoCAD P&ID...
  • Page 11 NOTE: This is a tentative list, and some certifications may only be completed on specific graphics solutions. HP Performance Advisor HP Performance Advisor enables optimal configuration of HP Mobile Workstations delivering stability and best performance. HP Performance Advisor will guide your system setup allowing a "custom"...
  • Page 12 *** Intel AT security requires a separately purchased Absolute Computrace service subscription and must be activated and configured. Check with Absolute for availability in your country. Intel and HP assume no liability for lost or stolen data and/or systems or any other damages resulting therefrom. See http://www.intel.com/technology/anti-theft/...
  • Page 13 HP Fast Charge* *HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast Charge does not apply to the 9-cell primary battery, HP ST09 Extended Life Notebook Battery, or HP BB09 Ultra Extended Life Notebook Battery.
  • Page 14 HP Care Pack Services extend service contracts beyond the standard warranties. To choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool at: http://www.hp.com/go/lookuptool. Additional HP Care Pack Services information by product is available at: http://www.hp.com/hps/carepack.
  • Page 15 HP 250 GB Pocket Media Drive FE477AA HP Mobile USB DVD XQ543AA HP Mobile USB DVDRW A2U57AA HP Upgrade Bay SATA 500 GB 7200 rpm Hard Drive LX733AA#xxx HP Upgrade Bay DL DVD+/-RW LZ835AA Expansion Solutions HP 2012 90W Docking Station...
  • Page 16 QuickSpecs HP EliteBook 8460w Mobile Workstation Options (availability may vary by country) Carrying Cases HP Basic Carrying Case AJ078AA HP Business Nylon Case BP848AA Security HP Notebook Combo Lock AY475AA#xxx HP Keyed Cable Lock BV411AA HP 14.0-inch Display Privacy Filter...

  • Page 17: Technical Specifications

    BSMI CE Marking Compliance * Configurations of the HP EliteBook 8460w that are ENERGY STAR qualified are identified as HP EliteBook 8460w ENERGY STAR on HP websites and on www.energystar.gov. ** EPEAT Registered Gold in U.S. EPEAT registration varies by country. See www.epeat.net...
  • Page 18 QuickSpecs HP EliteBook 8460w Mobile Workstation Technical Specifications Audio SRS Premium Sound Hardware Implementation IDT 92HD80 High Definition CODEC Function Key Volume up, volume down Volume Controls Mute Button Volume mute button with LED indicator Full Duplex Microphone In Stereo...
  • Page 19 QuickSpecs HP EliteBook 8460w Mobile Workstation Technical Specifications HP 90W Smart AC Adapter Dimensions 5.00 x 1.97 x 1.1 in (12.7 x 5.0 x 2.9 cm) Weight 0.82 lb (370 g) Input 100 to 240 VAC Input Efficiency 87% min at 115 VAC...

  • Page 20: Warranty

    QuickSpecs HP EliteBook 8460w Mobile Workstation Technical Specifications Optional HP ST09 Dimensions (H x W x L) 1.2 x 6.1 x 12 in (3x15.5x30.5cm) Extended Life Notebook Weight (max) 1.2lb, (.550kg) Battery Cells/Type Lithium-Ion Polymer Energy Voltage 11.1V Amp-hour capacity 6.6Ah...
  • Page 21 QuickSpecs HP EliteBook 8460w Mobile Workstation Technical Specifications HP 9-cell (100 WHr) Dimensions (H x W x L) 0.8 x 2.4 x 8.1in (2 x 6.6 x 20.5cm) Lithium-Ion Primary Weight (max) 1.1lb, (.488kg) battery Cells/Type Lithium-Ion Energy Voltage 11.25V Amp-hour capacity 8.85Ah...
  • Page 22 QuickSpecs HP EliteBook 8460w Mobile Workstation Technical Specifications 750 GB 7200 rpm SATA Drive Weight 0.25 lbs (115g) Hard Drive Capacity 750 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
  • Page 23 QuickSpecs HP EliteBook 8460w Mobile Workstation Technical Specifications 320 GB 7200 rpm SATA Drive Weight 0.25 lbs (115 g) Hard Drive Capacity 320 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
  • Page 24 QuickSpecs HP EliteBook 8460w Mobile Workstation Technical Specifications 160 GB 2.5-inch SATA Drive Weight 78 Grams Solid State Drive Capacity 160 GB Height 0.276 in (7 mm) Width 2.76 in (70 mm) Interface SATA Gen 2 Performance Maximum Sequential Read...
  • Page 25 QuickSpecs HP EliteBook 8460w Mobile Workstation Technical Specifications Transfer Mode UDMA Mode 5 Interface Gen 1 SATA Supported Media (read) CD-DA, , CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW.
  • Page 26 QuickSpecs HP EliteBook 8460w Mobile Workstation Technical Specifications Blu-ray R/RE DVD+/-RW Access Times Random <165 ms CD-ROM (typical) SuperMulti DL Drive <185 ms DVD-ROM (typical) <205 ms BD-ROM (typical) Max Data Transfer Rate 24X CD-ROM 8X DVD-ROM 24X CD-R 16X CD-RW...
  • Page 27 QuickSpecs HP EliteBook 8460w Mobile Workstation Technical Specifications HP Fingerprint Sensor Mobile Voltage Operation 3.0V-3.6V Single Supply (optional) Operating Temperature 32° – 158°F (0° – 70°C) Current Consumption @ Less than 70 mA peak imaging and scrolling Less than 25 mA hardware finger detection 3.3V...
  • Page 28 QuickSpecs HP EliteBook 8460w Mobile Workstation Technical Specifications V.92 56K Data/Fax Modem Form Factor MDC 1.5 Daughtercard Power Management APM Revision 1.2, ACPI Support Approvals/ UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC Part 15 Class B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian ACA, CE Mark, Other...

  • Page 29: Configuration Utilities

    QuickSpecs HP EliteBook 8460w Mobile Workstation Technical Specifications HP un2430 Technology/Operating GSM/GPRS/EDGE: 850MHz(Cell), 900MHz(EGSM), 1800MHz(DCS), 1900MHz (PCS) EV-DO/HSPA Mobile Bands UMTS/WCDMA with receive diversity: 2100MHz (UTRA FDD Band I), 1900MHz Broadband Module (UTRA FDD Band II), AWS (UTRA FDD Band IV), 900MHz(UTRA FDD Band VIII),...
  • Page 30 QuickSpecs HP EliteBook 8460w Mobile Workstation Technical Specifications HP hs2340 HSPA+ Mobile Technology/Operating GSM/GPRS/EDGE: 850MHz(Cell), 900MHz(EGSM), 1800MHz(DCS), 1900MHz (PCS) Broadband Module Bands UMTS/WCDMA with receive diversity: 2100MHz (UTRA FDD Band I), 1900Mhz (UTRA FDD Band II), 900Mhz(UTRA FDD Band VIII), 850 MHz (UTRA FDD Band V)
  • Page 31 QuickSpecs HP EliteBook 8460w Mobile Workstation Technical Specifications LED Activity LED Off - Radio Off; Solid LED On - Radio On Intel Centrino Advanced-N Wireless LAN Standards IEEE 802.11a IEEE 802.11b 6205 IEEE 802.11g IEEE 802.11n* * In countries where 802.11n is not allowed, this capability is not enabled.
  • Page 32 QuickSpecs HP EliteBook 8460w Mobile Workstation Technical Specifications Antenna Connections 2 U.FL type connectors, 50 ohm nominal impedance Form Factor PCI-Express Half-MiniCard Weight 0.0075 lb (3.4 g) Dimensions 0.12 x 1.06 x 1.18 in (3.1 x 26.8 x 30.0 mm) Operating Voltage 3.3V +/- 9%...
  • Page 33 QuickSpecs HP EliteBook 8460w Mobile Workstation Technical Specifications Encryption: 64 and 128-bit WEP, AES-CCMP, CKIP, TKIP Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program Version 4) with Microsoft Windows Vista and XP only.
  • Page 34 QuickSpecs HP EliteBook 8460w Mobile Workstation Technical Specifications IEEE 802.11g Adapter IEEE 802.11n Interoperability Wi-Fi certified Frequency Band 2.4 GHz and 5GHz Data Rates 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps...
  • Page 35 QuickSpecs HP EliteBook 8460w Mobile Workstation Technical Specifications Check latest software/driver release for updates on supported security features. Maximum output power may vary by country according to local regulations. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).
  • Page 36 QuickSpecs HP EliteBook 8460w Mobile Workstation Technical Specifications Antenna type High efficiency dual band antenna with spatial diversity, mounted in the display enclosure Form Factor PCI-Express Half-MiniCard Weight 0.013 lb (6 g) Dimensions 0.19 x 1.06 x 1.18 in (4.75 x 26.8 x 30 mm) Operating Voltage 3.3v +/- 10%...
  • Page 37 QuickSpecs HP EliteBook 8460w Mobile Workstation Technical Specifications Link Topology Point to Point, Multipoint Pico Nets up to 7 slaves Security Full support of Bluetooth Security Provisions Power Management Microsoft Windows ACPI, and USB Bus Support Self configurable to optimize power conservation in all operating modes,...

  • Page 38: Additional Information

    This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive – 2002/95/EC. information This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC. DA - 13959 North America — Version 12 — January 29, 2013...
  • Page 39 6120 standards. Material Usage This product does not contain any of the following substances in excess of regulatory limits (for reference of these limits please refer to the HP General Specification of the Environment: (http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/ DA - 13959 North America — Version 12 — January 29, 2013...
  • Page 40 This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment. Hewlett-Packard...
  • Page 41 HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
