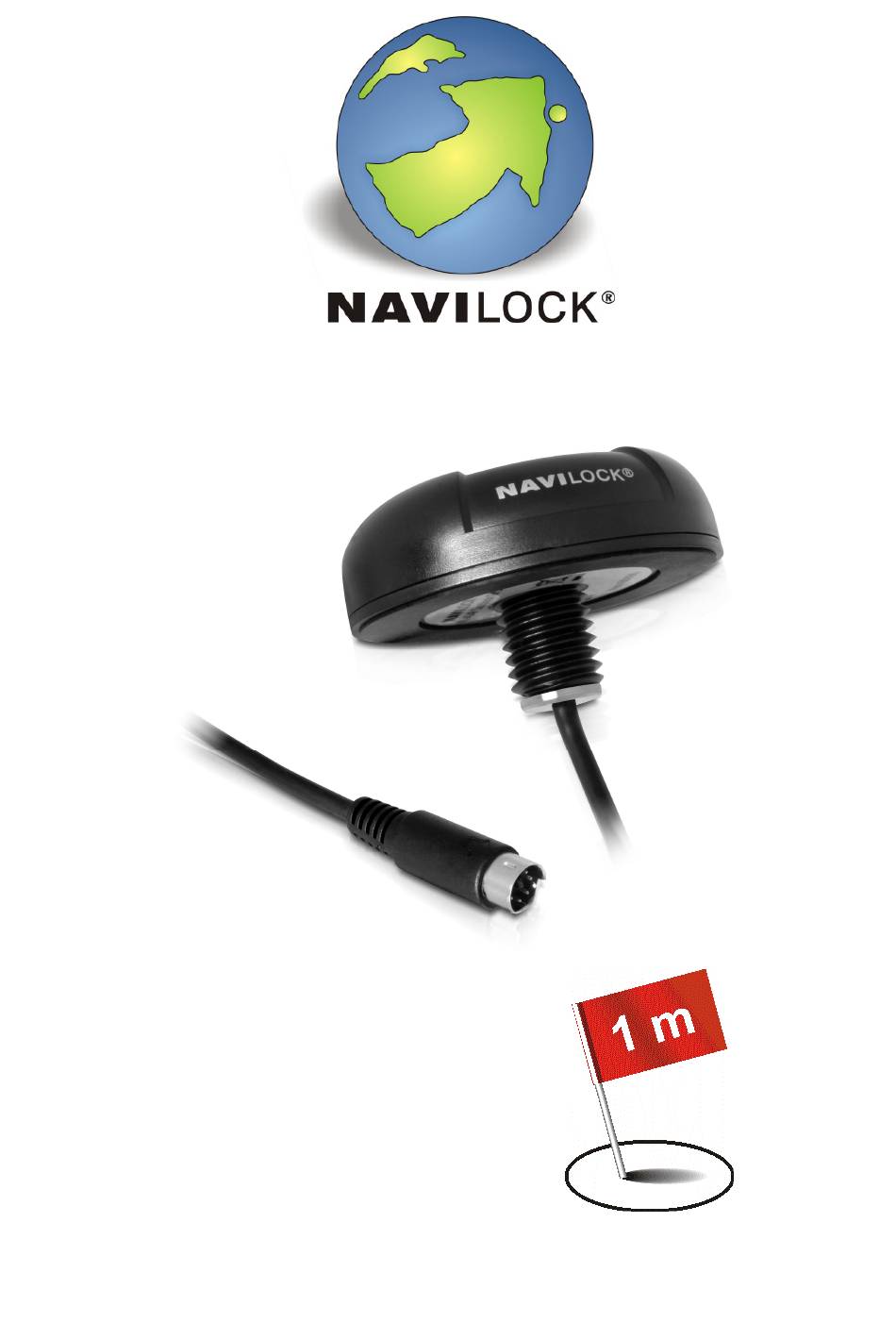

- Page 1 NL-6004P u-blox NEO-6P MD6/serial receiver roof mount Operation manual (62447)
- Page 2 1. Introduction The NL-6004P is a MD6/serial GNSS receiver with internal antenna and ublox NEO-6P GPS module. This module allows a positioning accuracy of under one metre through a combination of PPP (Precision Point Positioning) and SBAS technologies. The MD6/serial interface enables connection to a notebook, UMPC, tablet or car PC.
- Page 3 2. Starting operation You may connect the NL-6004P either to the serial interface of your PC using an MD6 to DB9 adapter cable, or to the USB interface of your PC using an MD6 to USB adapter cable. MD6 to DB9: http://www.navilock.de/produkte/G_61265/merkmale.html?setLanguage=en...
- Page 4 The green bars at the bottom of the picture show the reception quality at your position. If no bars are displayed, please change your position. The NL-6004P cannot receive anything in a closed building. If the blue bars are displayed, the receiver is still acquiring...
- Page 5 6. EGNOS configuration with u-center 7.xx NL-6004P use EGNOS as default. In the configuration menu you can check these options. For detailed information please use the documentation from u-blox http://www.u-blox.com. 7. Assist GPS configuration with u-center 7.xx The NL-6004P supports AssistNow! AssistNow is a standard A- GNSS service, which increases the performance of the GNSS receiver, by calculating a position almost immediately, even under difficult reception conditions.
- Page 6 8.2 You will not receive satellite fix even after a very long wait. The NL-6004P requires up to 20 minutes for its first satellite fix on another continent. For this, a clear view of the sky is needed.
-
Page 7: Specifications
9. Specifications Chip set manufacturer/type: ublox NEO-6P GPS Channels: 50 channels Sensitivity: -160 dBm GPS Frequency: L1, 1,575.42 MHz GPS C/A Code: 1.023 MHz chip rate Target precisions: Position Horizontal: SBAS + PPP < 1 m (2D, R50) SBAS + PPP < 2 m (3D, R50) Demonstrated under following conditions: 24 hours, stationary, first 600 seconds of data discarded. - Page 8 Navilock. The brand Navilock is a registered trademark and may not be used without the written authorization of the trademark owner. In no case may it be altered or completed by additions.
- Page 9 Brands, trade names, product names and logos of third parties mentioned in this documentation may be trademarks or registered trademarks of the respective owners. Conformity declaration Please download the Declaration of Conformity from http://www.navilock.de/support/ in the conformity area. WEEE note The WEEE (Waste Electrical and Electronic Equipment) directive, which came into force on 13 February 2003, lead to a comprehensive change in the disposal of used electric products.
