Texas Instruments TPA3245 User Manual

Texas Instruments TPA3245 User Manual

Evaluation module
Hide thumbs Also See for TPA3245:
Table of Contents

Advertisement

Quick Links

Download this manual
This user's guide describes the characteristics, operation, and use of the TPA3245 evaluation module
(EVM). A complete printed-circuit board (PCB) description, schematic diagram, and bill of materials are
also included.
1
2
3
4
1

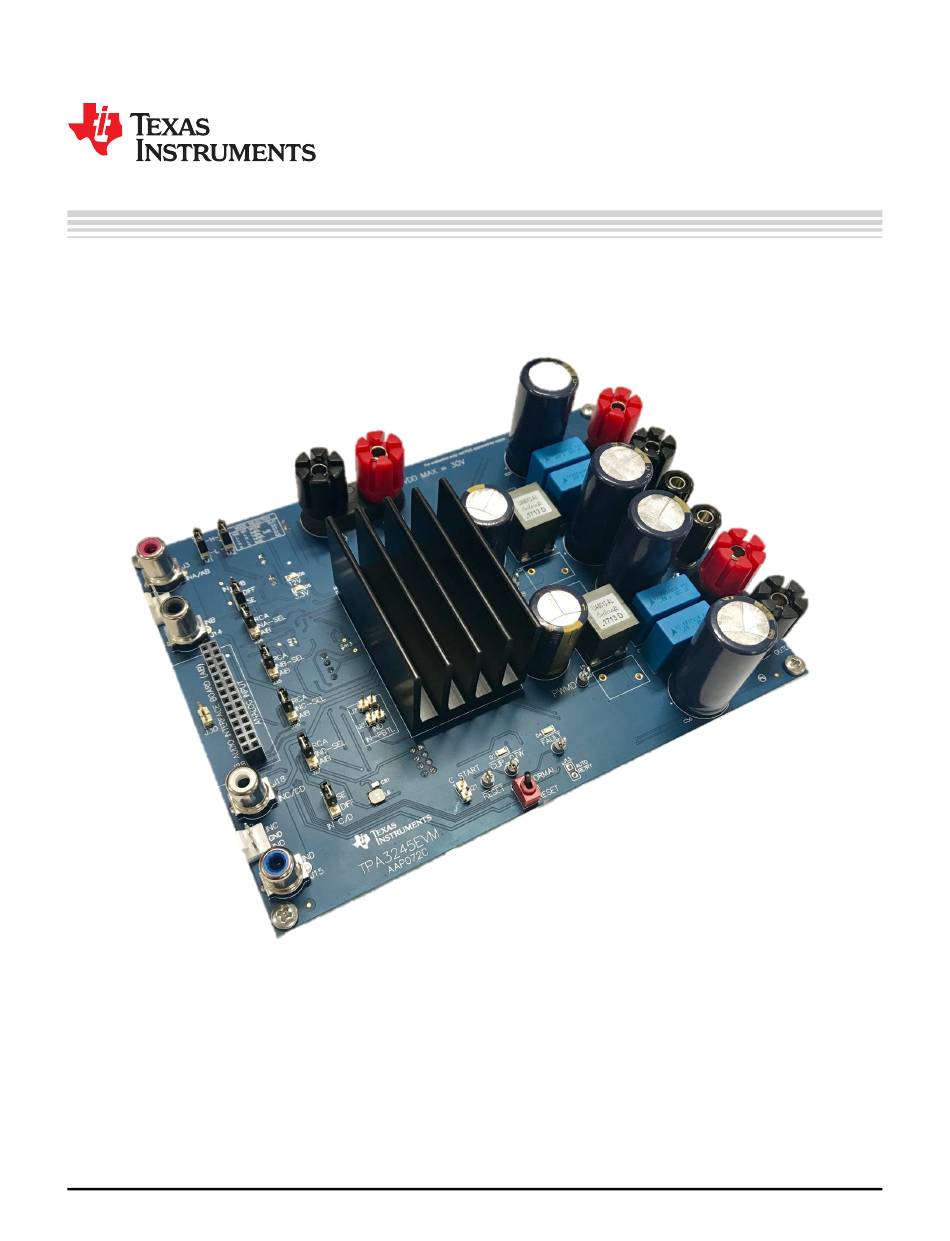

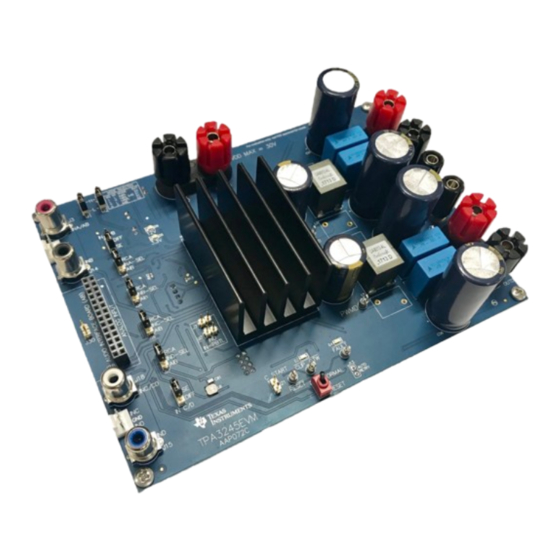

Figure 1. TPA3245 Evaluation Module
.....................................................................................................
...............................................................................................................
...................................................................................................
.................................................................................................
...............................................................................................
Copyright © 2016-2018, Texas Instruments Incorporated
SLVUAT6A - September 2016 - Revised January 2018
TPA3245 Evaluation Module
Contents
List of Figures
User's Guide
TPA3245 Evaluation Module
3
5
10
14
1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TPA3245 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Texas Instruments TPA3245

Summary of Contents for Texas Instruments TPA3245

  • Page 1: Table Of Contents

    SLVUAT6A – September 2016 – Revised January 2018 TPA3245 Evaluation Module This user's guide describes the characteristics, operation, and use of the TPA3245 evaluation module (EVM). A complete printed-circuit board (PCB) description, schematic diagram, and bill of materials are also included.
  • Page 2 AIB Connector (J28) Pinout ................... TPA3245EVM Bill of Materials Trademarks PurePath is a trademark of Texas Instruments. CoilCraft is a trademark of Coilcraft, Incorporated. Molex is a trademark of Molex, LLC. All other trademarks are the property of their respective owners.

  • Page 3: Quick Start (Btl Mode)

    Connect the positive RCA male jack to the female RCA jack input A/AB (J3-RED) and connect the negative RCA male jack to the female RCA jack input B (J14-BLACK). SLVUAT6A – September 2016 – Revised January 2018 TPA3245 Evaluation Module Submit Documentation Feedback Copyright © 2016–2018, Texas Instruments Incorporated...
  • Page 4 PBTL select IND INC/D DIFF input INC/D DIFF input 1 to 2 INA/B SE input 1 to 2 INC/D SE input TPA3245 Evaluation Module SLVUAT6A – September 2016 – Revised January 2018 Submit Documentation Feedback Copyright © 2016–2018, Texas Instruments Incorporated...

  • Page 5: Setup By Mode

    Frequency (Hz) Power (W) D004 D012 Figure 6. Molex™ Input: THD+N vs Frequency Figure 7. Molex Input: THD+N vs Power SLVUAT6A – September 2016 – Revised January 2018 TPA3245 Evaluation Module Submit Documentation Feedback Copyright © 2016–2018, Texas Instruments Incorporated...

  • Page 6: Rca Input: Thd+N Vs Frequency

    OUTC capacitor shunt OUTD capacitor shunt 1 to 2 M1 – H 2 to 3 M2 – L PBTL SELECT INC TPA3245 Evaluation Module SLVUAT6A – September 2016 – Revised January 2018 Submit Documentation Feedback Copyright © 2016–2018, Texas Instruments Incorporated...
  • Page 7 PBTL select IND – GND INC/D DIFF input INC/D DIFF input 1 to 2 INA/B SE input 1 to 2 INC/D SE input SLVUAT6A – September 2016 – Revised January 2018 TPA3245 Evaluation Module Submit Documentation Feedback Copyright © 2016–2018, Texas Instruments Incorporated...

  • Page 8: Aib Input: Thd+N Vs Frequency

    6. Connect the positive side of the load to the OUTD (J2-BLACK) terminal and the negative side of the load to the GND (J20) terminal. 7. Set both J4 and J19 jumpers position to DIFF. TPA3245 Evaluation Module SLVUAT6A – September 2016 – Revised January 2018 Submit Documentation Feedback Copyright © 2016–2018, Texas Instruments Incorporated...
  • Page 9 = 600 kHz, ROC = 22 kΩ, output filter: L = 7 μH, C = 0.68 µF, with AES17 + AUX-0025 measurement filters. SLVUAT6A – September 2016 – Revised January 2018 TPA3245 Evaluation Module Submit Documentation Feedback Copyright © 2016–2018, Texas Instruments Incorporated...

  • Page 10: Hardware Configuration

    The TPA3245EVM is equipped with LED indicators that illuminate when the FAULT or CLIP_OTW pin (or both) goes low. See Table 6 TPA3245 115-W Stereo, 230-W Mono PurePath™ Ultra-HD Analog- Input Class-D Amplifier for more details on which events trigger the pins to go low.
  • Page 11 The TPA3245EVM uses the OPA1678 to buffer the differential input signal to the differential inputs of the TPA3245 device. Use input RCA jack J3 to provide INA, RCA jack J14 to provide INB, RCA jack J18 to provide INC, and RCA jack J15 to provide IND with differential inputs.

  • Page 12: Input Connectors

    Speaker-level output from audio class-D EVM (SE or one side of BTL) Amp Out D Speaker-level output from audio class-D EVM (SE or one side of BTL) TPA3245 Evaluation Module SLVUAT6A – September 2016 – Revised January 2018 Submit Documentation Feedback Copyright © 2016–2018, Texas Instruments Incorporated...

  • Page 13: Evm Power Tree

    12 V, 5 V, and 3.3 V. Low-dropout linear regulators (LDOs) generate supplies going to the TPA3245 device itself to reduce the chance of extra added noise. LEDs are provided on the 5-V and 3.3-V supplies for easy verification that the EVM is powered (see Figure 22).

  • Page 14: Reset Circuit

    The RESET supervisor also ensures that the device is put into reset if one of the power rails experiences a brownout. This circuit combined with the RESET switch (S1) help ensure that the TPA3245 can be placed in reset easily as needed or automatically if there is a power supply issue.

  • Page 15: Tpa3245 Evaluation Module

    EVM Design Documents www.ti.com Figure 26. TPA3245 EVM Bottom Composite Assembly SLVUAT6A – September 2016 – Revised January 2018 TPA3245 Evaluation Module Submit Documentation Feedback Copyright © 2016–2018, Texas Instruments Incorporated...

  • Page 16: Tpa3245Evm Board Dimensions

    EVM Design Documents www.ti.com TPA3245EVM Board Layouts Figure 27 shows the EVM board dimensions. Figure 27. TPA3245EVM Board Dimensions TPA3245 Evaluation Module SLVUAT6A – September 2016 – Revised January 2018 Submit Documentation Feedback Copyright © 2016–2018, Texas Instruments Incorporated...

  • Page 17: Tpa3245 Evm Top Layer

    TPA3245 EVM Board Debug Plots Figure 28 Figure 29 illustrate the TPA3245EVM Debug plots Figure 28. TPA3245 EVM Top Layer SLVUAT6A – September 2016 – Revised January 2018 TPA3245 Evaluation Module Submit Documentation Feedback Copyright © 2016–2018, Texas Instruments Incorporated...

  • Page 18: Tpa3245 Evm Bottom Layer

    EVM Design Documents www.ti.com Figure 29. TPA3245 EVM Bottom Layer TPA3245 Evaluation Module SLVUAT6A – September 2016 – Revised January 2018 Submit Documentation Feedback Copyright © 2016–2018, Texas Instruments Incorporated...

  • Page 19: Slvuat6A - September 2016 - Revised January 2018 Submit Documentation Feedback

    INPUT SE D RIGHT- DIFF C- IN-D_RCA 10.0k VMID OPA1678IDGKR AGND2 Copyright © 2018, Texas Instruments Incorporated Figure 30. TPA3245EVM Schematic 1 SLVUAT6A – September 2016 – Revised January 2018 TPA3245 Evaluation Module Submit Documentation Feedback Copyright © 2016–2018, Texas Instruments Incorporated...
  • Page 20 Orange RESET-SW 1µF 0.1uF MONITORS 3.30k TPS3802K33DCKR 0.1uF RESET Copyright © 2018, Texas Instruments Incorporated Figure 31. TPA3245EVM Schematic 2 TPA3245 Evaluation Module SLVUAT6A – September 2016 – Revised January 2018 Submit Documentation Feedback Copyright © 2016–2018, Texas Instruments Incorporated...
  • Page 21 10µF 0.1uF 0.1uF 10µF 10µF 0.1uF 0.1uF GND-VMID Net-Tie Copyright © 2018, Texas Instruments Incorporated Figure 32. TPA3245EVM Schematic 3 SLVUAT6A – September 2016 – Revised January 2018 TPA3245 Evaluation Module Submit Documentation Feedback Copyright © 2016–2018, Texas Instruments Incorporated...
  • Page 22 J1, J2, J9 Dual Binding Posts with Base, 2x1, TH Dual Binding Posts with Base, 6883 Pomona Electronics 2x1, TH TPA3245 Evaluation Module SLVUAT6A – September 2016 – Revised January 2018 Submit Documentation Feedback Copyright © 2016–2018, Texas Instruments Incorporated...
  • Page 23 RES, 4.99 k, 1%, 0.063 W, 0402 0402 CRCW04024K99FKED Vishay-Dale 1.00k RES, 1.00 k, 1%, 0.063 W, 0402 0402 CRCW04021K00FKED Vishay-Dale SLVUAT6A – September 2016 – Revised January 2018 TPA3245 Evaluation Module Submit Documentation Feedback Copyright © 2016–2018, Texas Instruments Incorporated...
  • Page 24 TP15, TP16, TP17, TP18, Testpoint Test Point, 0.45mm hole size TP_H0.45P0.75 Texas Instruments TP19, TP20, TP21, TP22, TP23, TP24, TP25, TP26, TP27, TP28 TPA3245 Evaluation Module SLVUAT6A – September 2016 – Revised January 2018 Submit Documentation Feedback Copyright © 2016–2018, Texas Instruments Incorporated...

  • Page 25: Revision History

    NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Changes from Original (September 2016) to A Revision ....................Page ..................• Changed entire document for board revision C. SLVUAT6A – September 2016 – Revised January 2018 Revision History Submit Documentation Feedback Copyright © 2016–2018, Texas Instruments Incorporated...
  • Page 26 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
  • Page 27 FCC Interference Statement for Class B EVM devices NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 28 【無線電波を送信する製品の開発キットをお使いになる際の注意事項】 開発キットの中には技術基準適合証明を受けて いないものがあります。 技術適合証明を受けていないもののご使用に際しては、電波法遵守のため、以下のいずれかの 措置を取っていただく必要がありますのでご注意ください。 1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用 いただく。 2. 実験局の免許を取得後ご使用いただく。 3. 技術基準適合証明を取得後ご使用いただく。 なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。 上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。 日本テキサス・イ ンスツルメンツ株式会社 東京都新宿区西新宿６丁目２４番１号 西新宿三井ビル 3.3.3 Notice for EVMs for Power Line Communication: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page 電力線搬送波通信についての開発キットをお使いになる際の注意事項については、次のところをご覧ください。http:/ /www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page 3.4 European Union 3.4.1 For EVMs subject to EU Directive 2014/30/EU (Electromagnetic Compatibility Directive): This is a class A product intended for use in environments other than domestic environments that are connected to a low-voltage power-supply network that supplies buildings used for domestic purposes.
  • Page 29 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2018, Texas Instruments Incorporated...
  • Page 30 IMPORTANT NOTICE FOR TI DESIGN INFORMATION AND RESOURCES Texas Instruments Incorporated (‘TI”) technical, application or other design advice, services or information, including, but not limited to, reference designs and materials relating to evaluation modules, (collectively, “TI Resources”) are intended to assist designers who are developing applications that incorporate TI products;...
  • Page 31 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Texas Instruments TPA3245EVM...
