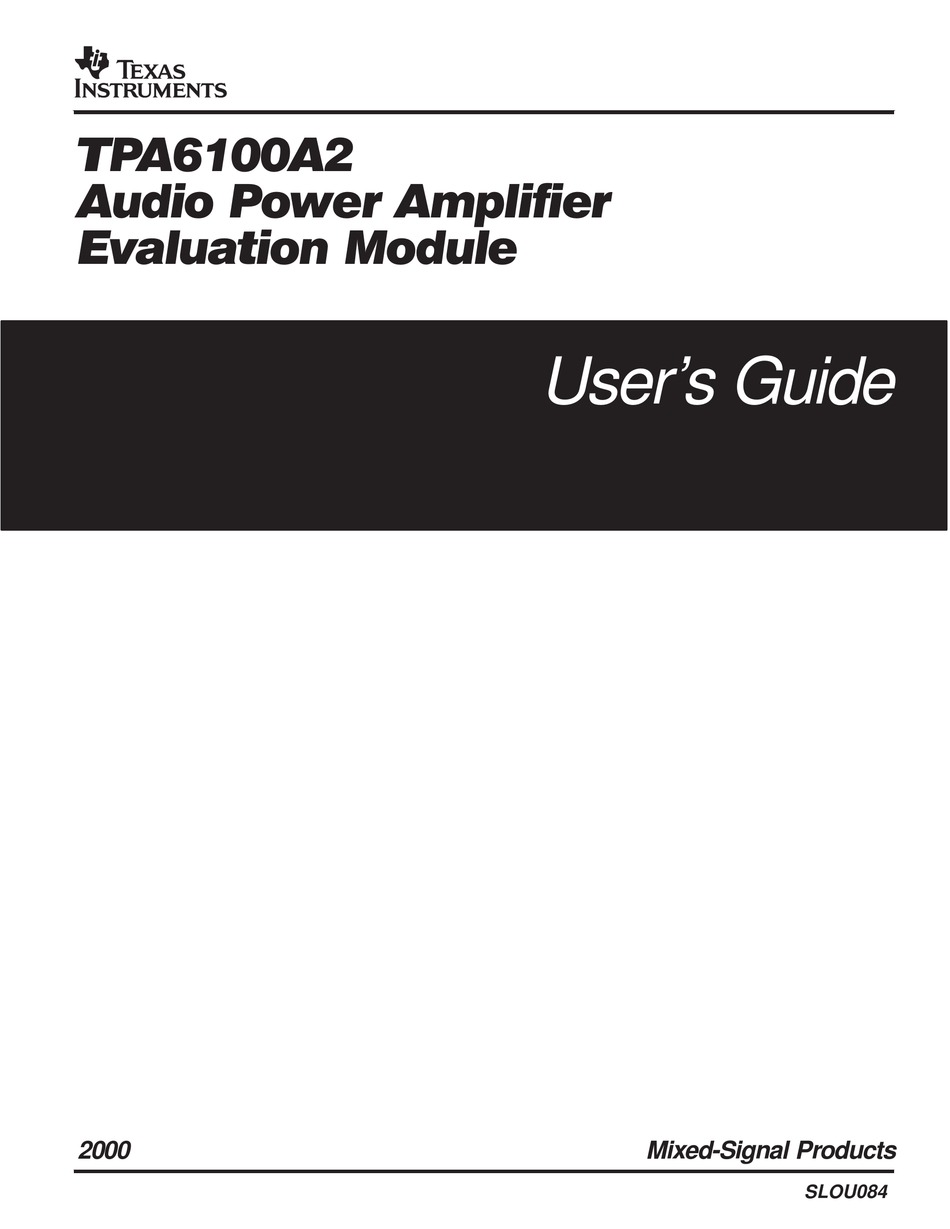

- Page 1 TPA6100A2 Audio Power Amplifier Evaluation Module User’s Guide 2000 Mixed-Signal Products SLOU084...
- Page 2 IMPORTANT NOTICE Texas Instruments and its subsidiaries (TI) reserve the right to make changes to their products or to discontinue any product or service without notice, and advise customers to obtain the latest version of relevant information to verify, before placing orders, that information being relied on is current and complete. All products are sold subject to the terms and conditions of sale supplied at the time of order acknowledgment, including those pertaining to warranty, patent infringement, and limitation of liability.
-
Page 3: Read This First
SLOU011) provides detailed information on the evaluation platform and its use with TI audio evaluation modules. TPA6100A2 50-mW Stereo Audio Power Amplifier (literature number SLOS269) This is the data sheet for the TPA6100A2 audio amplifier integrated circuit. Read This First... - Page 4 Running Title—Attribute Reference FCC Warning This equipment is intended for use in a laboratory test environment only. It generates, uses, and can radiate radio frequency energy and has not been tested for compliance with the limits of computing devices pursuant to subpart J of part 15 of FCC rules, which are designed to provide reasonable protection against radio frequency interference.
-
Page 5: Table Of Contents
......2.4.2 TPA6100A2 Audio Power Amplifier Evaluation Module Parts List .. - Page 6 Running Title—Attribute Reference Figures 1–1 The TI TPA6100A2 Audio Amplifier Evaluation Module ......2–1 Quick Start Platform Map .
-
Page 7: Introduction
Chapter 1 Introduction This chapter provides an overview of the Texas Instruments (TI) TPA6100A2 audio amplifier evaluation module (SLOP335). It includes a list of EVM features, a brief description of the module illustrated with a pictorial diagram, and a list of EVM specifications. -
Page 8: Features
Features 1.1 Features The TI TPA6100A2 audio amplifier evaluation module and the TI Plug-N-Play audio amplifier evaluation platform include the following features: TPA6100A2 Stereo Audio Power Amplifier Evaluation Module 1.6-V to 3.6-V operation Dual channel, single-ended operation 50-mW output power into 16 Ω at 3.3 V Very low distortion —... -
Page 9: Description
(see Figure 1–1). Figure 1–1. The TI TPA6100A2 Audio Amplifier Evaluation Module † Due to the very small size of the MSOP IC package, the standard part number TPA6100A2 is replaced with the code TIAJL. - Page 10 Introduction...
-
Page 11: Quick Start
Chapter 2 Quick Start The steps in this chapter can be followed to prepare the TPA6100A2 audio amplifier EVM for use. Using the TPA6100A2 EVM with the TI plug-n-play audio amplifier evaluation platform is a quick and easy way to connect power, signal and control inputs, and signal outputs to the EVM using standard connectors. -
Page 12: Quick Start Platform Map
Precautions 2.1 Precautions Power Supply Input Polarity and Maximum Voltage Always ensure that the polarity and voltage of the external power connected to V power input connector J1, J2, and/or V power input connector J6 are correct. Overvoltage or reverse-polarity power applied to these terminals can open onboard soldered-in fuses and cause other damage to the platform, installed evaluation modules, and/or the power source. - Page 13 1) Ensure that all external power sources are set to OFF and that the platform power switch S1 is set to OFF. 2) Install a TPA6100A2 module in platform socket U5, taking care to align the module pins correctly. 3) Use switch S2 to select or bypass the signal conditioning EVM (U1).
-
Page 14: Quick Start Module Map
Figure 2–2. Figure 2–2. Quick Start Module Map † Due to the very small size of the MSOP IC package, the standard part number TPA6100A2 is replaced with the code TIAJL. Power supply 1) Ensure that all external power sources are set to OFF . - Page 15 TPA6100A2 EVM Schematic 2.4 Reference 2.4.1 TPA6100A2 EVM Schematic The TPA6100A2 EVM schematic is shown in Figure 2–3. Figure 2–3. TPA6100A2 EVM Schematic Diagram 0.1 µF 10 kΩ 100 kΩ 100 kΩ BYPASS IN1– 100 kΩ 1 µF ROUT TPA6100A2...
-
Page 16: Tpa6100A2 Audio Power Amplifier Evaluation Module Parts List
TPA6100A2 Audio Power Amplifier Evaluation Module Parts List 2.4.2 TPA6100A2 Audio Power Amplifier Evaluation Module Parts List Table 2–2. TPA6100A2 EVM Parts List Manufacturer/ Ref. Description Size Qty. Vendor/Number Part Number Capacitor, 0.47 µF, 10%, C1, C2 0603 Panasonic Digi-Key Nonpolarized, SMD ECJ–1VB0J474K... -
Page 17: Tpa6100A2 Evm Pcb Layers
TPA6100A2 EVM PCB Layers 2.4.3 TPA6100A2 EVM PCB Layers The following illustrations depict the TPA6100A2 PCB layers. These drawings are not to scale. Gerber plots can be obtained from any TI sales office. Figure 2–4. TPA6100A2 EVM Top Layer Figure 2–5. TPA6100A2 EVM Bottom Layer... - Page 18 Quick Start...
