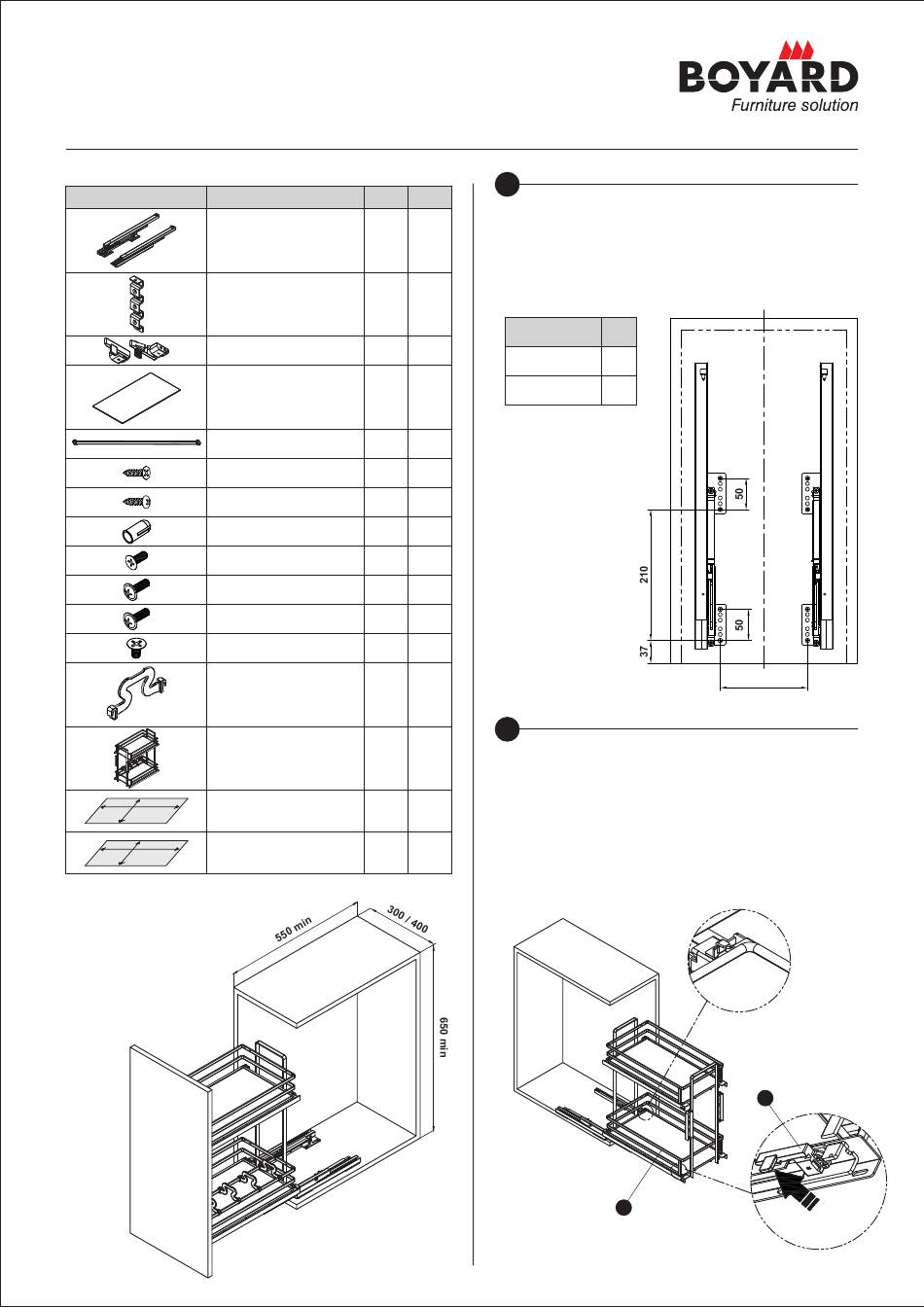

Boyard QUADRA KR28 Assembly Instructions

QUADRA KR28 ASSEMBLY INSTRUCTIONS
QUADRA KR28 is a pullout two-level basket with the standard width of 300 and
400 mm set on the guard rails with the function of synchronization and dimensioning
COMPONENT PARTS
Picture Name
Guide rails provided
(left and right)
Wall support arm
Fasteners set
Bottom
Hanging rod
Self-tapping screw, ST4×16
Self-tapping screw, ST4×16
Dowel
Screw, M5×13
Screw, M5×15
Screw, M5×20
Screw, M4×8
Separator
Basket
Master plate of guide
rail
Master plate of front
wall holder plates
BASKET PARAMETERS:
KR28/2/3/300
243x473x502 (W×D×H)
KR28/2/3/400
343x473x502 (W×D×H)
1
Tag Pcs
1.1 Drill the holes with the diameter of 5 mm and depth
of 13 mm according to the scheme. It is possible to
use the master plate (O) for application of markings.
1
A
1.2 Set the dowels (H).
1.3 Fix the guide rails (A) with the help of self-tapping
screws (F).
B 2
Article
C 1
KR28/2/3/300
KR28/2/3/400
D 2
1
E
8
F
8
G
H 8
I 4
J 2
K 2
L 4
M 4
2
2.1 Pull out the guide rails (A) from the cabinet
N 1
2.2 Fix the basket (N) on the guide rails with the help
of hooks on the end of the guide rail and fasteners
(C) of the basket. Push the basket into the cabinet.
1
O
P 1
W1
140
240
W1
С
N
