Boyard CTAPT SB08 Assembly Instruction

SB 08
COMPONENT PARTS
1 Guide rails (left and right) 1 set
2 Back wall holder plate (left and right) 1 set

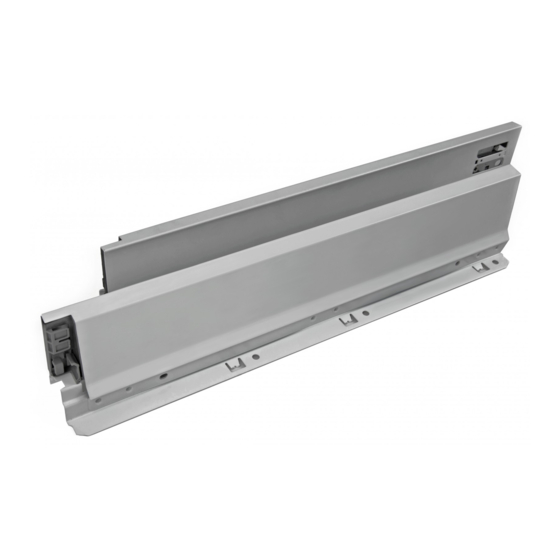

3 Side wall (left and right) with self-tapping screws
1 set
4
Front wall fastener with the self-tapping screws 2 pcs
5
Plug 2 pcs
MOUNTING DIMENSIONS for SB08
Internal body dimension=LW
Back wall length LW-87
Box bottom LW-75
Dimensions for mounting
Dimensions for back
wall fastening of front wall fasteners on the
internal surface of front wall
L W
- 8
7
DB8181
SBH45
SBDW08
SCHEME OF GUIDE RAILS ADDITION
NL – length of guide rails from the sidewall.
Minimal internal size of body in depth (NL+3 mm)
For sizes: 270 / 300 / 350 / 400
Front rim of body side wall
14
For sizes: 450 / 500 / 550
14
Holder plate SBH40
9
Dimensions of back wall for drawers with
SBR08 or SBR09 railings:
Central drawer with
1 pot rack + SBH41
L W
- 8
7
Assembly of front wall fasteners and pot rack
15,5
9
Dimensions of back wall for drawers
with SBH40 or SBH45 holder plates
Central drawer with 1 pot rack
+ SBH40 + SBH45
9
L W
- 8
7
224 37
Assembly of front wall fasteners and pot rack
37
256
15,5
High drawer with
2 pot racks + SBH42
L W
- 8
7
15,5
Back wall assembly
9
High drawer with 2 pot racks
+ SBH40 (2 pcs) + SBH45
L W
- 8
7
15,5
Back wall assembly
SB08
assembly instruction
