Installation
Instructions
If you have questions, call GE Appliances at 800.GE.CARES (800.432.2737)
or visit our website at: GEAppliances.com.
BEFORE YOU BEGIN
Read these instructions carefully and completely.
IMPORTANT
for local inspector's use.
IMPORTANT
codes and ordinances.
• Note to Installer – Be sure to leave these
instructions with the consumer.
• Note to Consumer – Keep these instructions for
future reference.
• Proper installation is the responsibility of the
installer and product failure due to improper
installation is NOT covered under warranty.
• Note – This appliance must be properly grounded.
ATTENTION INSTALLER
All electric wall ovens must be hard wired (direct
wired) into an approved junction box. A plug and
receptacle is NOT permitted on these products.

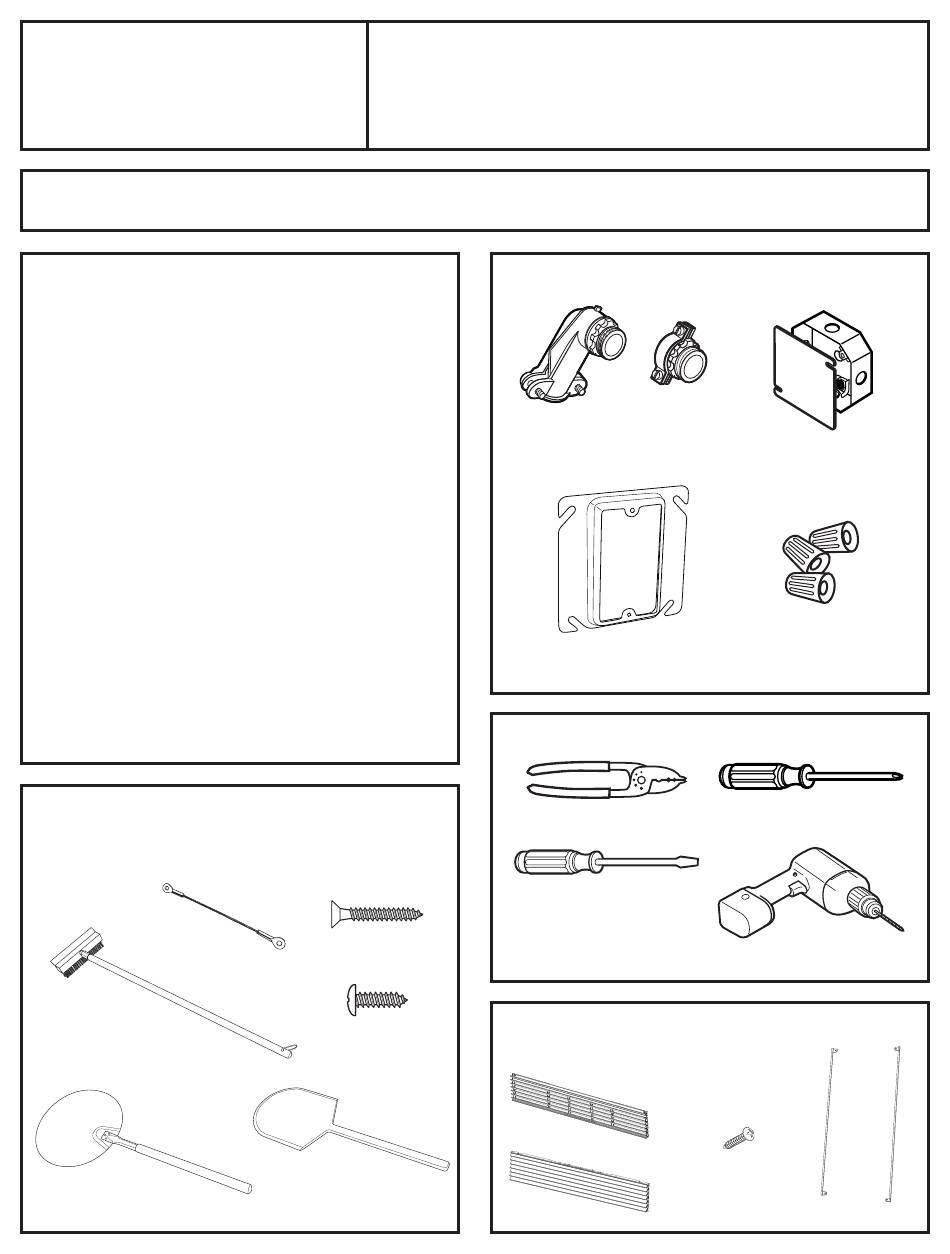

PARTS INCLUDED
(Appearance will vary)
Tether
Brush
Metal Peel
Indoor Hearth Oven
ZEP30
— Save these instructions
— Observe all governing
1" Drywall Screw
5/8" Phillips
Case Screw
Wooden Peel
MATERIALS NEEDED
Option 2
Option 1
Strain Relief Clamp
for 1/2" conduit
Plaster Ring
(Option 1)
TOOLS NEEDED
Wire Strippers
Flathead
Screwdriver
TRIM KIT PARTS
(Included with ZEP30F)
Top Grille
Bottom Grille
Junction Box
(1 1/2 Depth Max.)
Wire Nuts
Phillips #2
Screwdriver
Drill and 3/32" drill bit
3/4" Phillips
Screws (4)
Side Trim
31-11062 Rev. 3 03-19 GEA

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZEP30 and is the answer not in the manual?

Questions and answers

Summary of Contents for GE ZEP30

  • Page 1 Installation Indoor Hearth Oven Instructions ZEP30 If you have questions, call GE Appliances at 800.GE.CARES (800.432.2737) or visit our website at: GEAppliances.com. BEFORE YOU BEGIN MATERIALS NEEDED Read these instructions carefully and completely. IMPORTANT • — Save these instructions for local inspector’s use.
  • Page 2 Installation Instructions IMPORTANT SAFETY INSTRUCTIONS FOR YOUR SAFETY ELECTRICAL REQUIREMENTS • Be sure your oven is installed properly by a Rating plate is located on the bottom of the front panel. qualified installer or service technician. • Be sure the oven is securely installed in a cabinet that is firmly attached to the house structure.
  • Page 3 Installation Instructions PRODUCT DIMENSIONS (WITHOUT TRIM) 28 3/8” 9/16” 29 13/16” 7/8” 28 7/16” 31-11062 Rev. 3...
  • Page 4 Installation Instructions PRODUCT DIMENSIONS (WITH TRIM) 28 3/8” 9/16” Optional 1/4” Square Side Trim 30 5/16” With Optional Side Trim 27 1/2” 29 13/16” Without Optional Side Trim 6 1/8” 7/8” 27 1/2” 28 7/16” 31-11062 Rev. 3...
  • Page 5 Indoor Hearth Oven Instructions ZEP30 The hearth oven may be installed in a cabinet If you have questions, call GE Appliances at 800.GE.CARES (800.432.2737) or visit our website at: GEAppliances.com. BEFORE YOU BEGIN MATERIALS NEEDED Read these instructions carefully and completely.
  • Page 6 Installation Instructions CUTOUT FOR FLUSH MOUNT INSTALLATION - TRIM KIT REQUIRED A 47” is the required minimum installation height. Oven E Junction box location (May also be located in may be installed higher based on owner preference. adjacent cabinet). B Extended depth cabinet is required. Drywall is F Standard depth cabinet requires modification of acceptable as back enclosure.
  • Page 7 Installation Instructions CUTOUT FOR FLUSH MOUNT INSTALLATION - TRIM KIT REQUIRED (Cont.) STANDARD DEPTH CABINET INSTALLATION 27 5/8” (70.2) min. cutout 30” (76.2) ± 1/16” Drywall 1” (2.5) Cabinet Recommend 3/8” Plywood 5/16” (0.8) min. for Terminal Box Backer overlap of oven 5”...
  • Page 8 Installation Instructions INSTALLATION OVER A WALL OVEN NOTE: Install the oven only with specific models listed on the label on top of the oven. Cutout per Cutout per Hearth Oven Hearth Oven Requirements Requirements (See (See 29 15/16” (76.4) min. 29 15/16”...
  • Page 9 Installation Instructions ELECTRICAL CONNECTIONS NOTE TO ELECTRICIAN: The 3 power leads supplied ATTENTION INSTALLER with this appliance are UL recognized for connection to heavier gauge household wiring. The insulation of All electric wall ovens must be hard wired (direct these 3 leads is rated at temperatures much higher wired) into an approved junction box.
  • Page 10 Installation Instructions A NEW CONSTRUCTION AND FOUR- ELECTRICAL CONNECTIONS (Cont) CONDUCTOR BRANCH CIRCUIT CONNECTION 1. Turn off the circuit breaker or remove fuses to the • When installing in new construction, or oven branch circuit. • When installing in a mobile home, or 2.
  • Page 11 Installation Instructions ELECTRICAL CONNECTIONS (Cont) INSTALLING THE OVEN IN THE CABINET B THREE-CONDUCTOR BRANCH CIRCUIT CONNECTION A WITHOUT TRIM KIT NOTE: If residence leads are aluminum conductors, 1. Lift oven into cabinet cutout using the bottom as a see WARNING on page 5. grip.
  • Page 12 Installation Instructions INSTALLING THE OVEN IN THE INSTALLING THE OVEN IN THE CABINET (Cont.) CABINET (Cont.) B WITH TRIM KIT 6. Align bottom grille by inserting alignment posts into hearth oven front and pre-drill mounting holes 1. Before lifting oven into cabinet cutout, remove six using 3/32”...
  • Page 13 Notes 31-11062 Rev. 3...
  • Page 14 Installation Instructions PRE-TEST CHECKLIST Remove all protective film, if present. Remove both shipping supports Handle Check to be sure that all wiring is secure and not pinched. Remove cooking deck shipping supports by: 1. Pulling down on the shipping support by the handle.
  • Page 15 Four à pizza intérieur d'installation ZEP30 Si vous avez des questions, composez le 800-GE-CARES (800-432-2737) ou consultez notre site Web : GEAppliances.com. Au Canada : Appelez au 1-888-880-3030 ou visitez notre site Web à : monogram.ca. AVANT DE COMMENCER MATÉRIEL NÉCESSAIRE Lisez attentivement toutes ces instructions.
  • Page 16 Instructions d'installation CONSIGNES DE SÉCURITÉ IMPORTANTES POUR VOTRE SÉCURITÉ EXIGENCES ÉLECTRIQUES • Assurez-vous que votre four est correctement La plaque signalétique est située au bas du installé par un installateur ou un technicien qualifiés. panneau avant. • Assurez-vous que le four est installé dans une armoire qui est solidement fixée à...
  • Page 17 Instructions d'installation DIMENSIONS DU FOUR (SANS GARNITURE) 28-3/8 po 9/16 po 29-13/16 po 7/8 po 28-7/16 po 1 po = 2,5 cm; 1 pi = 0,3 m 31-11062 Rév. 3...
  • Page 18 Instructions d'installation DIMENSIONS DU FOUR (AVEC GARNITURE) 28-3/8 po 9/16 po Garniture latérale carrée de 1/4 po facultative 30-5/16 po avec garniture latérale facultative 27-1/2 po 29-13/16 po sans garniture latérale facultative 6-1/8 po 7/8 po 27-1/2 po 28-7/16 po 1 po = 2,5 cm;...
  • Page 19 à la hauteur de l'ouverture d'installation. La plateforme Installation Indoor Hearth Oven Instructions ZEP30 If you have questions, call GE Appliances at 800.GE.CARES (800.432.2737) or visit our website at: GEAppliances.com. doit pouvoir supporter un poids de 200 lb (91 kg). BEFORE YOU BEGIN MATERIALS NEEDED Read these instructions carefully and completely.
  • Page 20 Instructions d'installation DÉCOUPE POUR INSTALLATION ENCASTRÉE – TROUSSE DE GARNITURES REQUISE A La hauteur d'installation minimale requise est de E Emplacement de la boîte de jonction (peut 47 po. Le four peut être installé plus haut selon les également être située dans une armoire adjacente). préférences du propriétaire.
  • Page 21 Instructions d'installation DÉCOUPE POUR INSTALLATION ENCASTRÉE – TROUSSE DE GARNITURES REQUISE (suite) INSTALLATION DANS UNE ARMOIRE DE PROFONDEUR STANDARD Découpe min. de 30 po (76,2 cm) ± 27-5/8 po (70,2 cm) 1/16 po (1,6 mm) Placoplâtre 1 po Chevauchement min. (2,5 cm) Armoire Appui en...
  • Page 22 Instructions d'installation INSTALLATION AU-DESSUS D'UN FOUR ENCASTRÉ REMARQUE : Installez le four seulement avec les modèles figurant sur l'étiquette sur le dessus du four. Découpe Découpe conforme conforme aux aux exigences du exigences du four à pizza four à pizza (voir (voir Ligne...
  • Page 23 Instructions d'installation RACCORDEMENTS ÉLECTRIQUES REMARQUE DESTINÉE À L'ÉLECTRICIEN : Les 3 fils AVERTISSEMENT DESTINÉ fournis avec cet appareil sont homologués UL pour un À L'INSTALLATEUR raccordement à des systèmes électriques résidentiels de calibre supérieur. L'isolation de ces 3 fils est Tous les fours encastrés électriques doivent être certifiée pour une utilisation à...
  • Page 24 Instructions d'installation A NOUVELLE CONSTRUCTION ET RACCORDEMENTS RACCORDEMENT À UN CIRCUIT DE ÉLECTRIQUES (suite) DÉRIVATION À QUATRE CONDUCTEURS 1. Coupez le courant par l'entremise du disjoncteur ou • Lorsque vous faites l'installation dans une retirez les fusibles du circuit de dérivation du four. nouvelle construction, 2.
  • Page 25 Instructions d'installation INSTALLATION DU FOUR RACCORDEMENTS DANS L'ARMOIRE ÉLECTRIQUES (suite) A SANS TROUSSE DE GARNITURES B RACCORDEMENT À UN CIRCUIT DE DÉRIVATION À TROIS CONDUCTEURS 1. Soulevez le four pour le mettre dans l'ouverture de REMARQUE : Si les fils du domicile sont des l'armoire, en le tenant par le fond.
  • Page 26 Instructions d'installation INSTALLATION DU FOUR DANS INSTALLATION DU FOUR DANS L'ARMOIRE (suite) L'ARMOIRE (suite) 6. Alignez la grille inférieure en alignant les poteaux dans B AVEC TROUSSE DE GARNITURES le four à pizza et prépercez les trous de montage avec 1.
  • Page 27 Notes 31-11062 Rév. 3...
  • Page 28 Instructions d'installation LISTE DE VÉRIFICATION AVANT ESSAI Retirez les deux supports Retirez toute la pellicule protectrice, le cas échéant. de transport. Poignée Vérifiez que les fils sont bien fixés et qu'ils ne sont pas coincés. Enlevez les supports de transport de la plateforme de cuisson comme suit : 1.
