WCSP-Packaged bq24160/161/163/168 Evaluation Modules

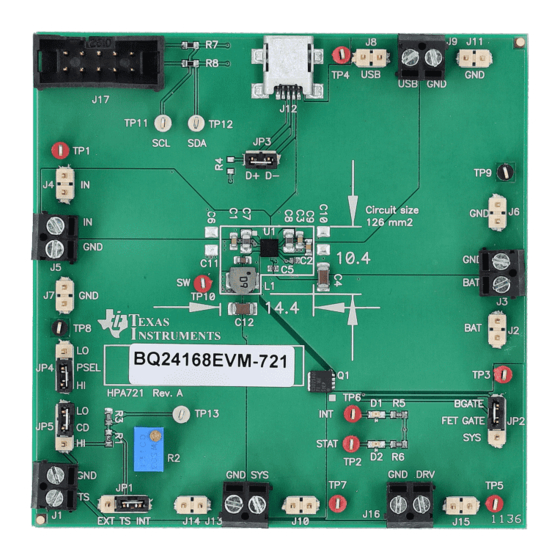

The bq24160/161/163/168 evaluation module is a complete charger module for evaluating compact,
flexible, high-efficiency, USB-friendly, switch-mode charge management solution for single-cell, Li-ion and
Li-polymer batteries used in a wide range of portable applications.
1
1.1
1.2
1.3
1.4
1.5
1.6
1.7
2
2.1
2.2
2.3
2.4
3
4
4.1
4.2
1
2
3
4
5
6
..................................................................................................................
7
8
9
10
1
2
I
C is a trademark of Philips Electronics N.V.
SLUU496A - December 2011 - Revised January 2012
Submit Documentation Feedback
..................................................................................................................
..............................................................................................
...........................................................................................................
......................................................................................................
..........................................................................................................
...............................................................................................................
...........................................................................................................
.................................................................................
..................................................................................
.................................................................................
......................................................................................
....................................................................................................
......................................................................................................
..........................................................................................
................................................................................................
......................................................................................................
........................................................................................................
....................................................................................................
...............................................................................................................
...............................................................................................
Copyright © 2011-2012, Texas Instruments Incorporated
SLUU496A - December 2011 - Revised January 2012
Contents
...........................................................................
............................................................................
...........................................................................
..........................................................................
......................................................................
........................................................
.....................................................................
List of Tables
WCSP-Packaged bq24160/161/163/168 Evaluation Modules
User's Guide
2
2
2
3
4
4
4
5
5
5
6
7
9
11
12
12
14
3
6
8
8
9
14
14
15
15
16
12
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the bq24160 and is the answer not in the manual?

Questions and answers

Related Manuals for Texas Instruments bq24160

Summary of Contents for Texas Instruments bq24160

  • Page 1: Table Of Contents

    SLUU496A – December 2011 – Revised January 2012 WCSP-Packaged bq24160/161/163/168 Evaluation Modules The bq24160/161/163/168 evaluation module is a complete charger module for evaluating compact, flexible, high-efficiency, USB-friendly, switch-mode charge management solution for single-cell, Li-ion and Li-polymer batteries used in a wide range of portable applications.

  • Page 2: Introduction

    Programmable battery voltage, charge current, input current, and status via I C™ interface • IN operating range of 4.2 V – 10 V (bq24160/161/163) or 4.2 V – 6 V (bq24168) • USB operating range of 4.2 V – 6 V •...

  • Page 3: Schematic

    Schematic Figure 1. bq24160/161/163/168EVM (HPA721) Schematic NOTE: EVMs with a printed-circuit board label that contain the suffix -X may have been assembled with incorrectly marked ICs. Regardless of the IC’s marking, the EVM was assembled with the correct part number as specified in the EVM bill of material.

  • Page 4: I/O Description

    STAT Kelvin to BAT Kelvin to USB Kelvin to SYS TP10 TP11 TP12 TP13 Control and Key Parameters Setting SLUU496A – December 2011 – Revised January 2012 WCSP-Packaged bq24160/161/163/168 Evaluation Modules Submit Documentation Feedback Copyright © 2011–2012, Texas Instruments Incorporated...

  • Page 5: Recommended Operating Conditions

    Supply voltage, V Input voltage from ac adapter (bq24168) USB voltage, V Input voltage from USB or equivalent supply System voltage, V Voltage output at SYS terminal (bq24160/161/168; depends VBATR on VBAT voltage and status of V EG+4.17 INDPM System voltage, V Voltage output at SYS terminal (bq24163;...

  • Page 6: Recommended Test Equipment

    Load #2 Between SYS and GND Although not required, a resistive load capable of sinking up to 3 A can be used. SLUU496A – December 2011 – Revised January 2012 WCSP-Packaged bq24160/161/163/168 Evaluation Modules Submit Documentation Feedback Copyright © 2011–2012, Texas Instruments Incorporated...

  • Page 7: Recommended Test Equipment Setup

    Download BQ2416xSW.zip from the charger's product folder, unzip the file, and double-click on the SETUP.EXE file. Follow the installation steps. Because the bq24160, bq24161, and bq24163 have the watchdog timers enabled, it is recommended that you set the software's Reset Watchdog Timer to reset every 5 seconds. Otherwise, after 30 seconds of operation, the IC enters Default mode.

  • Page 8: Connections Of Hpa172 Kit

    USB-TO- GPIO CM#1 PS#2 VM#1 VM#2 BAT_Load CHRG CM#2 VM#3 VM#4 Figure 4. Original Test Setup for bq24160/161/163/168EVM (HPA721) SLUU496A – December 2011 – Revised January 2012 WCSP-Packaged bq24160/161/163/168 Evaluation Modules Submit Documentation Feedback Copyright © 2011–2012, Texas Instruments Incorporated...

  • Page 9: Recommended Test Procedure

    5. Turn on PS #1 and PS #2 if used. 6. Return JP5 to LO. 7. Software setup: • Press the READ button to obtain the current settings. SLUU496A – December 2011 – Revised January 2012 WCSP-Packaged bq24160/161/163/168 Evaluation Modules Submit Documentation Feedback Copyright © 2011–2012, Texas Instruments Incorporated...
  • Page 10 Click the READ button at the top of the window and confirm that the previous settings remain. 8. For the bq24160 EVM, enable PS #2 and adjust PS #2 so that the voltage measured by VM #2, across BAT and GND, measures 3.2 V ± 50 mV. For the bq24161/163/168 EVMs, enable PS #2 and adjust PS #2 so that the voltage measured by VM #2, across BAT and GND, measures 2.5 V ±...

  • Page 11: Printed-Circuit Board Layout Guideline

    7. For high-current applications, the balls for the power paths must be connected to as much copper in the board as possible. This allows better thermal performance because the board conducts heat away from the IC. SLUU496A – December 2011 – Revised January 2012 WCSP-Packaged bq24160/161/163/168 Evaluation Modules Submit Documentation Feedback Copyright © 2011–2012, Texas Instruments Incorporated...

  • Page 12: Bill Of Materials And Board Layout

    0.100 x 0.100 inch 5002 Keystone BQ24160YFF IC, 2.5A, Dual-Input, Single Cell Switch-mode Li-Ion QFN3.3X3.3mm BQ24160YFF BATTERY CHARGER with WCSP-Packaged bq24160/161/163/168 Evaluation Modules SLUU496A – December 2011 – Revised January 2012 Submit Documentation Feedback Copyright © 2011–2012, Texas Instruments Incorporated...
  • Page 13 BQ24163YFF IC, 2.5A, Dual-Input, Single Cell Switch-mode Li-Ion QFN3.3X3.3mm BQ24163YFF BATTERY CHARGER with — Shunt, 100-mil, Black 0.100 929950-00 SLUU496A – December 2011 – Revised January 2012 WCSP-Packaged bq24160/161/163/168 Evaluation Modules Submit Documentation Feedback Copyright © 2011–2012, Texas Instruments Incorporated...

  • Page 14: Board Layout

    Bill of Materials and Board Layout www.ti.com Board Layout EXAS NSTRUMENTS Figure 6. Top Assembly Layer Figure 7. Top Layer SLUU496A – December 2011 – Revised January 2012 WCSP-Packaged bq24160/161/163/168 Evaluation Modules Submit Documentation Feedback Copyright © 2011–2012, Texas Instruments Incorporated...

  • Page 15: First Internal Layer

    Bill of Materials and Board Layout www.ti.com Figure 8. First Internal Layer Figure 9. Second Internal Layer SLUU496A – December 2011 – Revised January 2012 WCSP-Packaged bq24160/161/163/168 Evaluation Modules Submit Documentation Feedback Copyright © 2011–2012, Texas Instruments Incorporated...

  • Page 16: Bottom Layer

    Bill of Materials and Board Layout www.ti.com Figure 10. Bottom Layer SLUU496A – December 2011 – Revised January 2012 WCSP-Packaged bq24160/161/163/168 Evaluation Modules Submit Documentation Feedback Copyright © 2011–2012, Texas Instruments Incorporated...

  • Page 17: Regulatory Compliance Information

    Any exceptions to this is strictly prohibited and unauthorized by Texas Instruments unless user has obtained appropriate experimental/development licenses from local regulatory authorities, which is responsibility of user including its acceptable authorization.
  • Page 18 REGULATORY COMPLIANCE INFORMATION (continued) FCC Interference Statement for Class B EVM devices This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 19 Japan with respect to this product. Also, please do not transfer this product, unless you give the same notice above to the transferee. Please note that if you could not follow the instructions above, you will be subject to penalties of Radio Law of Japan. Texas Instruments Japan Limited (address) 24-1, Nishi-Shinjuku 6 chome, Shinjukku-ku, Tokyo, Japan http://www.tij.co.jp 【ご使用にあたっての注】...
  • Page 20 FDA Class III or similar classification, then you must specifically notify TI of such intent and enter into a separate Assurance and Indemnity Agreement. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2012, Texas Instruments Incorporated...

  • Page 21: Important Notice

    IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete.

  • Page 22: Texas Instruments

    Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Texas Instruments BQ24168EVM-721 BQ24160EVM-721 BQ24161EVM-721...
