Mixcder E9 Manual

Introduction

Thank you for purchasing the Mixcder E9 Wireless Active Noise Cancelling Headphones. Mixcder E9 active noise cancelling technology detects the noise around you and cancels it out while traveling, working or going anywhere, helping you focus on what you want to hear. The look of E9 is fashionable and its package is eco-friendly. Built-in rechargeable battery provides sufficient music playtime and standby time (Fast Charging: 5minute charging for 2-hour playtime). It's designed to sound better, filter out noise, be more comfortable and easier to carry.

E9 can be used in both wired and wireless modes via 3.5mm audio cable and Wireless V5.0 to communicate with your Wireless-enabled device within 33 ft/10 m. Its powerful and rich bass speaker brings you amazing and unprecedented audio enjoyment.

Note: Please read the user manual carefully before using, and keep it properly for future reference.

Package Contents

1× Wireless Headphones

1× Micro USB Charging Cable

1× 3.5mm Audio Cable

1× User Manual

1× Compact Carrying Case

1× Airplane Adapter

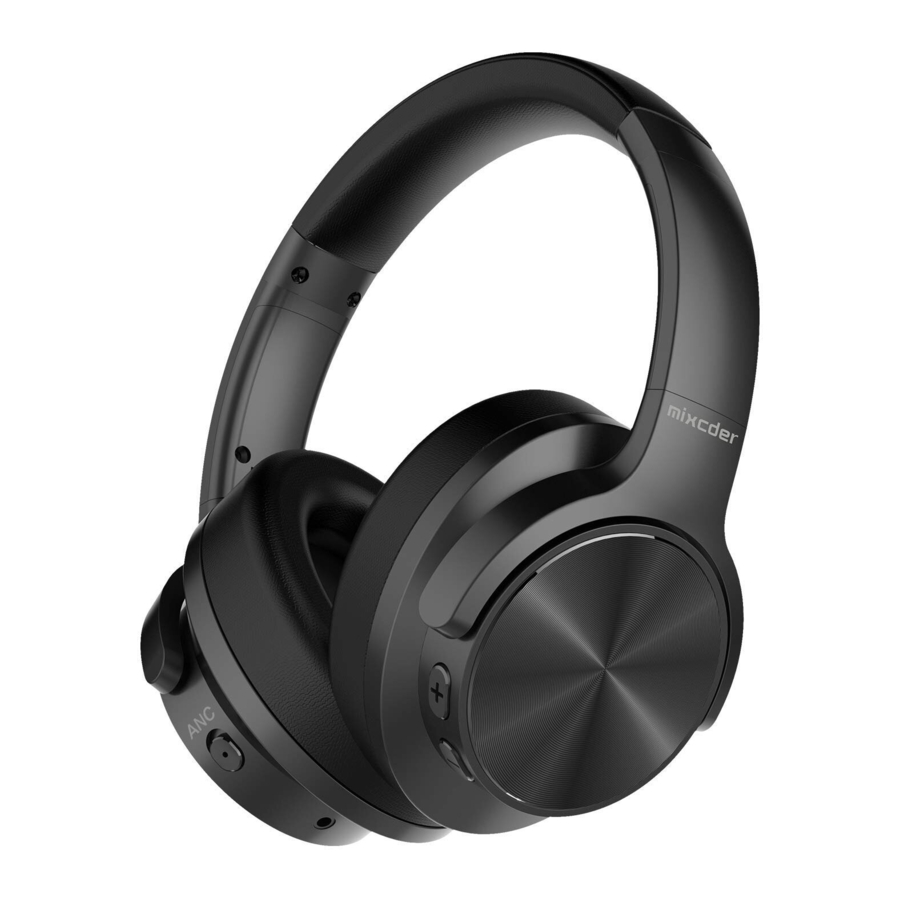

Product Overview

Charging

Use the supplied micro USB charging cable to recharge the battery. It takes about 1.5 hours for the first charge and after charging for as long as 1 hours. The headphone LED turns to solid red during charging. When the battery is fully charged, the LED turns off.

In order not to affect the charging time, please turn off the wireless function during charging, but you still can use the audio cable.

When the battery is low, the LED indicator light blinks red. At the same time the headphones also provide a low battery warning tone.

Note: It is strongly recommended fully charging for the first use. Playtime varies according to volume level and audio content.

Pairing with Wireless Devices

1. Make sure the headphones are off.
2. Do not place both devices more than one meter away from each other.
3. Turn on the wireless function of your devices.
4. Press and hold the power button on the headphones until it powers on but don't let go just yet. Continue holding down on the power button until you see the LED indicator flash blue and red alternately, which means your headphones are in pairing mode waiting to be paired with your device. You will hear a prompt.
5. Select the "Mixcder E9" to pair. Once successfully paired, the LED turns to solid blue. You will hear a prompt.

Note: Before pairing the headphones with computer, please make sure your computer or laptop has the built-in Wireless feature. If not, you must purchase a Wireless dongle, preferably version 2.1 or above. Mixcder E9 will pair with the last paired device automatically when turning on. Because of different systems, some computers or laptops may need to be manually paired every time.

Active Noise Cancelling

Mixcder E9 contains a noise cancelling circuit. Noise mainly from airplanes, buses or trains is effectively reduced.

1. The noise cancelling effect may not be pronounced in a very quiet environment as some noise may be heard.
2. The noise cancelling effect may vary depending on how you wear the headphones.
3. The noise cancelling function works for noise in the low frequency band primarily. Although noise is reduced, it is not cancelled out completely.

Making and Answering a Call

Making a Call

1. Make sure the headphones are paired with the mobile phone. Dial through the mobile phone and press the call button on the phone.
2. To end the call, press the power button once again or also end the call directly by the phone.

Answering a Call
Make sure the headphones are paired with your phone. Refer to chapter "Pairing with Wireless Devices".

1. Press the power button on your headphones to answer the call through headphones. If there is the music playback, it will pause.
2. To end the call, press the power button once again or also end the call directly by the phone.
3. As soon as the call is ended, the music will continue to play automatically.

Used as a Wired Headphones

There is a 3.5mm audio port on the left side of ear cup in which you can plug the included audio cable. It enables you to connect E9 to other devices via 3.5mm audio cable. When the headphones battery is low, you can still enjoy the music without worrying about the battery.

Note: The microphone can't work when used as wired headphones.

Taking Care of Your Headphones

• Store the headphones in the carrying case and in a dry place when it powers off.
• If you don't use the headphones for a long period, charge the battery every two months for one to two hours.
• Use a dry cloth for cleaning if needed.
• Avoid dropping the headphones from high places or on hard surfaces.
• Avoid exposing the headphones to extreme temperatures (recommended storage temperature is from -40°C to 80°C).
• The headphones are NOT waterproof. Avoid exposing the headphones to rain or getting liquids into any button port or other opening.
• Please don't twist or bend the earphones. This may cause permanent deformation.
• The built-in battery can't be disposed into fire to avoid explosion.

Protecting Your Hearing

The headphones are held close to your ears, so loud sounds pose a potential hearing risk. It is highly recommended that setting low volume level before putting on the headphones are and avoiding exposing yourself continuously to high volumes. If you need to use the headphones for a long period, rest ten minutes for a half hour using.

Controls

Note: There will be an alert tone when the volume reaches the maximum level.

Troubleshooting

Q: The headphones cannot be turned on.
A: The battery may be flat. Please recharge the battery and try again. Refer to chapter "Charging".

Q: Why don't the headphones pair with the mobile phone?
A: Please check the following:

• Check that the headphones are fully charged.
• Make sure that the mobile phones wireless function is on. You can clear all connection history on your phone.
• Make sure other paired devices' wireless function is turned off.
• Make sure the two devices are in the effective pairing range (10m).
• Make sure that there is no obstacle between the headphones and the mobile phone, such as electronic equipment and a wall.
• Furthermore, make sure that the headphones are in pairing mode and pair it with phone again.

Q: There is some noise.
A: Wireless is a radio technology, so it is sensitive to obstacles between the headphones and the pairing device. Make sure that there is no obstacle between the two devices within 10 meters.

Q: I can't hear sound.
A: Please check the following:

• Try increasing the volume.
• Make sure that the wireless function is on and whether the two devices are connected and within 33 feet/10 meters.

Q: My mobile phone or computer cannot find the headphones.
A: Please check that the headphones are in pairing mode. Refer the chapter "Pairing with Wireless Devices". Sometimes when the headphones are connected to too many wireless devices, it cannot search and pair effectively. Or your mobile phone and computer are already connected to many other devices. Try removing some connections before searching the headphones.

Specifications

Note: Features and technical specifications are subject to change without notice, we apologize for any inconvenience.

Warranty Conditions

A new product purchased in the Alza.cz sales network is guaranteed for 2 years. If you need repair or other services during the warranty period, contact the product seller directly, you must provide the original proof of purchase with the date of purchase.

The following are considered to be a conflict with the warranty conditions, for which the claimed claim may not be recognized:

• Using the product for any purpose other than that for which the product is intended or failing to follow the instructions for maintenance, operation and service of the product.
• Damage to the product by a natural disaster, the intervention of an unauthorized person or mechanically through the fault of the buyer (e.g. during transport, cleaning by inappropriate means, etc.).
• Natural wear and aging of consumables or components during use (such as batteries, etc.).
• Exposure to adverse external influences, such as sunlight and other radiation or electromagnetic fields, fluid intrusion, object intrusion, mains overvoltage, electrostatic discharge voltage (including lightning), faulty supply or input voltage and inappropriate polarity of this voltage, chemical processes such as used power supplies, etc.
• If anyone has made modifications, modifications, alterations to the design or adaptation to change or extend the functions of the product compared to the purchased design or use of non-original components.
