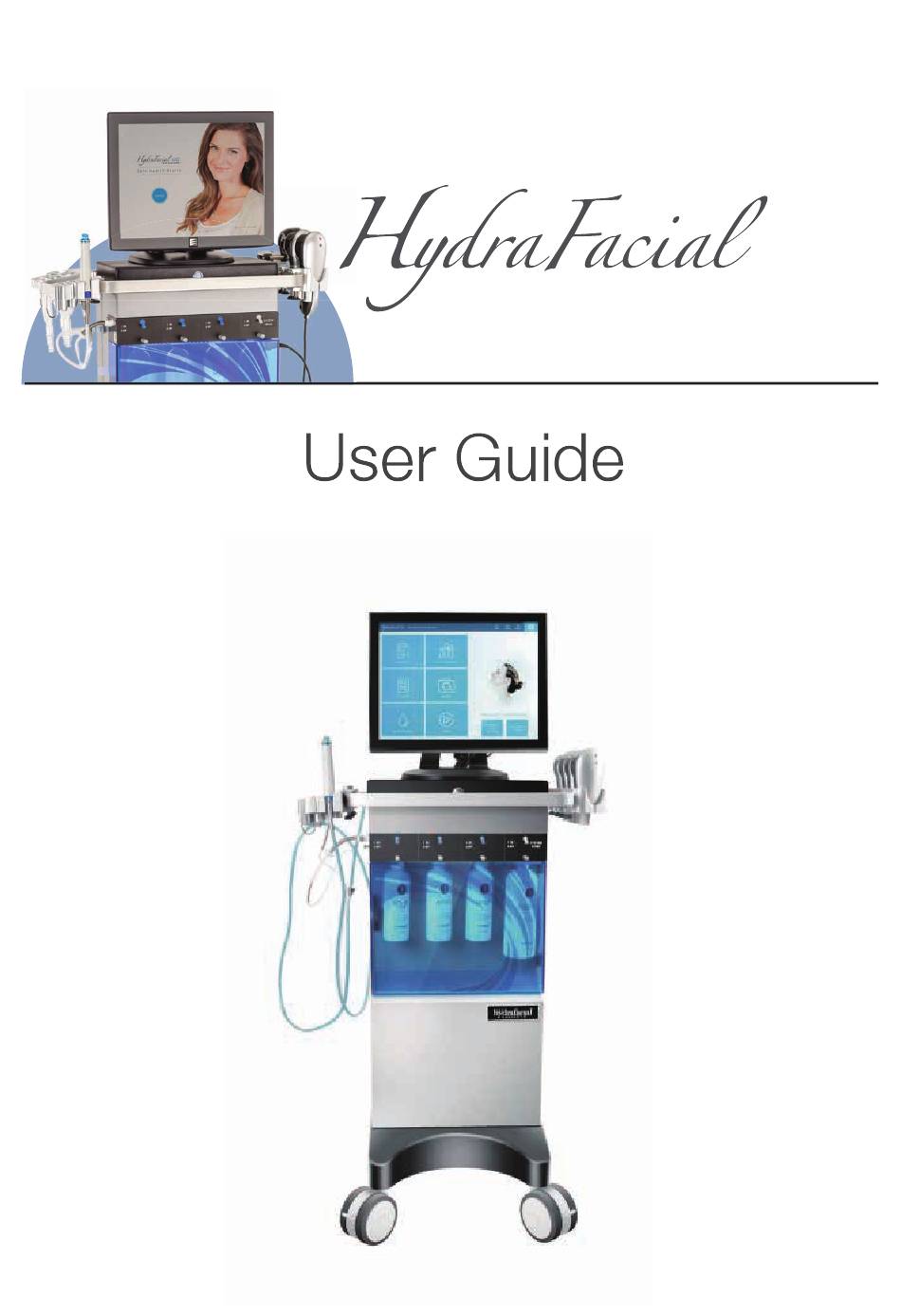

hydrafacial MD ELITE User Manual

Hide thumbs Also See for MD ELITE:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MD ELITE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for hydrafacial MD ELITE

Summary of Contents for hydrafacial MD ELITE

  • Page 3: Before You Start

    BEFORE YOU START HYDRAFACIAL MD ELITE User Guide ® ™ SAFETY INFORMATION PRODUCT MARKING SYMBOLS Attention: Refer to accompanying documentation. Aufmerksamkeit: Beziehen Sie sich begleitend auf Dokumentation. Attention : Consultez la documentation d’accompagnement. Separate collection for electronic. Trennen Sie Sammlung für elektronisch.
  • Page 4 BEFORE YOU START HYDRAFACIAL MD ELITE User Guide ® ™ CAUTION AND MARKING SYMBOLS Calls attention to a procedure, practice, or condition that could possibly cause bodily injury or death. Ruft Aufmerksamkeit zu einem Verfahren, Praxis, oder Bedingung, die vielleicht körperliche Verletzung oder Tod verursachen könnte.
  • Page 5 ® SAFETY GUIDELINES 1. Ensure that all operators of the HydraFacial® System are trained and licensed as required by the state or country. Do not operate the unit 2. Be sure to read the User Guide thoroughly before setting up the system.
  • Page 6 13. Only Edge Systems skin solutions should be suctioned through the HydraFacial® handpiece. Use of other, non-approved skin solutions will void the warranty and clog the machine. Always use solution when performing abrasion.
  • Page 7 BEFORE YOU START HYDRAFACIAL MD ELITE User Guide ® ™ DO NOT suction liquids through the dry port for crystal-free procedure located on the side of the unit. This will damage the unit and will void the warranty. üssigkeiten durch den trockenen Hafen für Kristall frei Behandlung NICHT, die auf der Seite von der Einheit befunden wird.
  • Page 8 BEFORE YOU START HYDRAFACIAL MD ELITE User Guide ® ™ Diese Ausrüstungen sind entworfen worden und sind bestimmt worden, entgegenkommend mit gesetzlichen Agenturengrenzen für EMI zu sein. Jedoch, es gibt keine Garantie, die jene Störung in einer besonderen nden wird. Wenn diese Ausrüstungen Störung verursachen, die von Drehen den Ausrüstungen ab und auf bestimmt...
  • Page 9 BEFORE YOU START HYDRAFACIAL MD ELITE User Guide ® ™ Pour prévenir les chocs électriques, n’enlevez pas le couvercle de l’instrument. Ce dernier ne contient aucune pièce pouvant être réparée par l’utilisateur. L’entretien ou le nettoyage périodique des pièces in- ternes n’est pas nécessaire.

  • Page 10: Getting Started

    GETTING STARTED HYDRAFACIAL MD ELITE User Guide ™ ® Package Contents Console Unit Wet (HydraFacial®) Handpiece Assembly Tool Holder HydroPeel® Tips Skin Solutions Puncture Tool Waste Container Assembly Cleaning Cap Options: Mechanical Lymphatic Drainage Glass Handpiece Cups Cordless Red LED Light Therapy Handpiece...
  • Page 11 GETTING STARTED HYDRAFACIAL MD ELITE User Guide ™ ® Device Components Touchscreen Port for waste container (Rear of the unit) Illuminated On/Standby Switch Accessory Rail Side Panel: Port for Mechanical Charging USB Lymphatic Drainage Ports For Cordless Handpieces LED Handpieces...

  • Page 12: Installation

    Use a Phillips screwdriver to install the ledge. Note: Always remove the waste container before transporting the unit. HydraFacial® HANDPIECE 1. Plug the small tube attached to the HydraFacial® handpiece into tting. 2. Connect the large tube attached to the handpiece into the waste container.
  • Page 13 GETTING STARTED HYDRAFACIAL MD ELITE User Guide ™ ® 5. Insert the gray cartridge into the handpiece. Align the arrow on the rmly until it snaps into place, then twist the cartridge up until the arrow aligns with the lock symbol.
  • Page 14 GETTING STARTED HYDRAFACIAL MD ELITE User Guide ™ ® 3. To re-access the skin solution bottles, remove the specialty vial and rmly until it snaps into place, then twist the cartridge up into the locked position. SKIN SOLUTION BOTTLES 1. Open the front door. Remove the cap of the skin solution bottle and use the puncture tool to pierce the seal inside the bottle.
  • Page 15 If you have purchased the optional kits, please see below. WET DIAMOND AGGRESSIVE ABRASION (Medical Use Only) 1. Place the diamond pad inside the tip and push it in. 2. Place the tip on the HydraFacial® handpiece and press-in until it is fully seated. diamond...
  • Page 16 GETTING STARTED HYDRAFACIAL MD ELITE User Guide ™ ® UNIVERSAL TOOL HOLDER rst. rst onto the accessory rail. 3. Tighten the thumbscrews to lock the handpiece holder in place. CORDLESS LED LIGHT THERAPY HANDPIECES (Optional) 1. Refer to LED Light Therapy Handpiece User Guide part number 19692 for details on installation and operation.

  • Page 17: Operation

    2. The Illuminated Power Switch will light up blue. Press the blue Illuminated Power Switch. The machine should begin its boot up cycle at this point. When the HydraFacial® page appears on the screen, select “Here” to go to the main page. STANDBY / SLEEP MODE 1.

  • Page 18: Touchscreen Operation

    3. Activate the modality you will be using on the touchscreen by pressing the button. Note: The touchscreen has been preset for opti- mal performance with the HydraFacial® program. Thus, you cannot and will not need to adjust the monitor.
  • Page 19 OPERATING INSTRUCTIONS HYDRAFACIAL MD ELITE User Guide ™ ® ACTIVATE THE LED LIGHTS (OPTIONAL) Refer to LED Light Therapy Handpiece User Guide part number 19692 for details on installation and operation. 1. To operate the LED Lights, go to the Home screen and select “Modalities.”...

  • Page 20: System Cleaning

    User Guide ™ ® SYSTEM CLEANING AND PREVENTIVE MAINTENANCE The HydraFacial MD® Elite™ system needs to be cleaned after each pro- cedure. Cleaning is especially important after the usage of vials. Skin Solution Stations And Tubing AFTER EACH SERVICE 1. Wearing gloves is recommended.
  • Page 21 User Guide ™ ® HydraFacial® Handpiece The HydraFacial® handpiece tubing chambers must be cleaned and dis- infected using the cleaning brush every week to prevent any bacterial contamination. The HydraFacial® Handpiece 1. Ensure all the blue toggles switches are in the OFF position.
  • Page 22 SYSTEM CLEANING HYDRAFACIAL MD ELITE User Guide ™ ® 5. When the brush and air cleaning are completed, make sure all the blue toggle switches are in the OFF position. Turn the gray toggle switch “SYSTEM RINSE” up to the ON position and the vacuum set- ting on “26”...

  • Page 23: Touch Screen

    SYSTEM CLEANING HYDRAFACIAL MD ELITE User Guide ™ ® Other WASTE CONTAINER 1. Wash, dry, and wipe/spray germicide over waste canister and lid. Leave open overnight to air-dry. Note: Always remove the waste container before transporting the unit. TOUCHSCREEN To avoid risk of electric shock, do not disassemble the unit cabinet.
  • Page 24 SYSTEM CLEANING HYDRAFACIAL MD ELITE User Guide ™ ® Options WET DIAMOND AGGRESSIVE ABRASION (MEDICAL USE ONLY) 1. It is always recommended to use gloves for this process. 2. After each use, remove abrasive pads and tip. Drop in hot water and let them soak for about 10 minutes, softening any debris surrounding both pads and tip.
  • Page 25 SYSTEM CLEANING HYDRAFACIAL MD ELITE User Guide ® ™ MECHANICAL LYMPHATIC DRAINAGE HANDPIECES excess treatment lotion after each procedure. 2. Clean the handpiece appropriately using cold sterilization or autoclave following manufacturer's instructions. LED LIGHT THERAPY HANDPIECES (Optional) Refer to LED Light Therapy Handpiece User Guide part number 19692 for details on installation and operation.

  • Page 26: Troubleshooting

    Toggle switch Make sure the switch is on. Make sure your skin solution bottle Empty bottle is not empty. Make sure that your HydraFacial® handpiece is properly connected to Improper the side of the skin solution station connection block, and to the waste container.
  • Page 27 TROUBLESHOOTING HYDRAFACIAL MD ELITE User Guide ™ ® Problem Possible Cause Solution Check lines for any kinks or leaks. Leak in the line Repuncture bottle if needed. Too many solu- Make sure you only have a maximum tion stations are of two skin solution stations on the “ON”...
  • Page 28 TROUBLESHOOTING HYDRAFACIAL MD ELITE User Guide ™ ® OPTIONS Problem Possible Cause Solution Kinks or leaks Check lines for kinks or leaks. Make sure the dry handpiece tubing Improper Low or No assembly and corresponding attach- connections Vacuum ments are properly connected.
