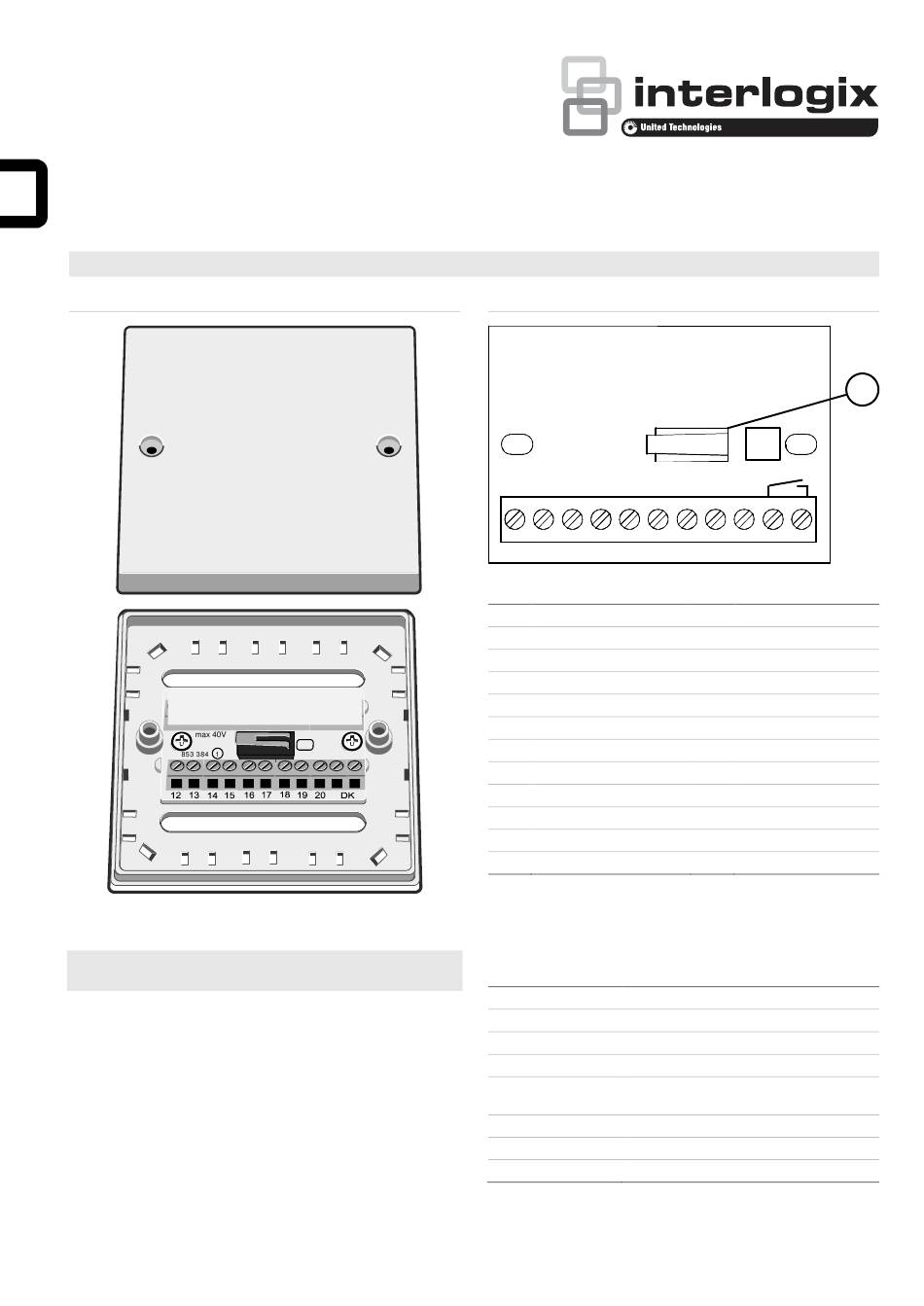

ES011 Junction Box Installation Sheet
EN DE
1
EN: Installation Sheet
Description
The cable ties must be used for traction relief.
If strands are used, they must be skillfully inserted (without
splicing).
Included accessories:
•
Cable ties for traction relief
© 2019 UTC Fire & Security. All rights reserved.
VdS
1 / 2
2
1
2
3
4
5
6
max. 40 V
12 13 14 15 16 17 18 19 20
No
12
13
14
15
16
17
18
19
20
21
22
Specifications
PCB
ES011 - 11 screw terminals
Power input
max. 40 VDC
−25°C to +65°C
Temperature range
Single wired and fine wired up to 2,5 mm²
Max. wire section
Tamper switch (see
single-pole NO contact
Figure 2, pos. 1)
Housing
LD 10 (empty box for surface mounting)
Housing dimensions
85 mm x 85 mm x 26 mm
Plastic material
S-B or A-B-S
P/N 71518500.Y71 • REV 3 • ISS 18MAR19
