AdvisorOne Battery Installation Sheet
EN CNF ES PR

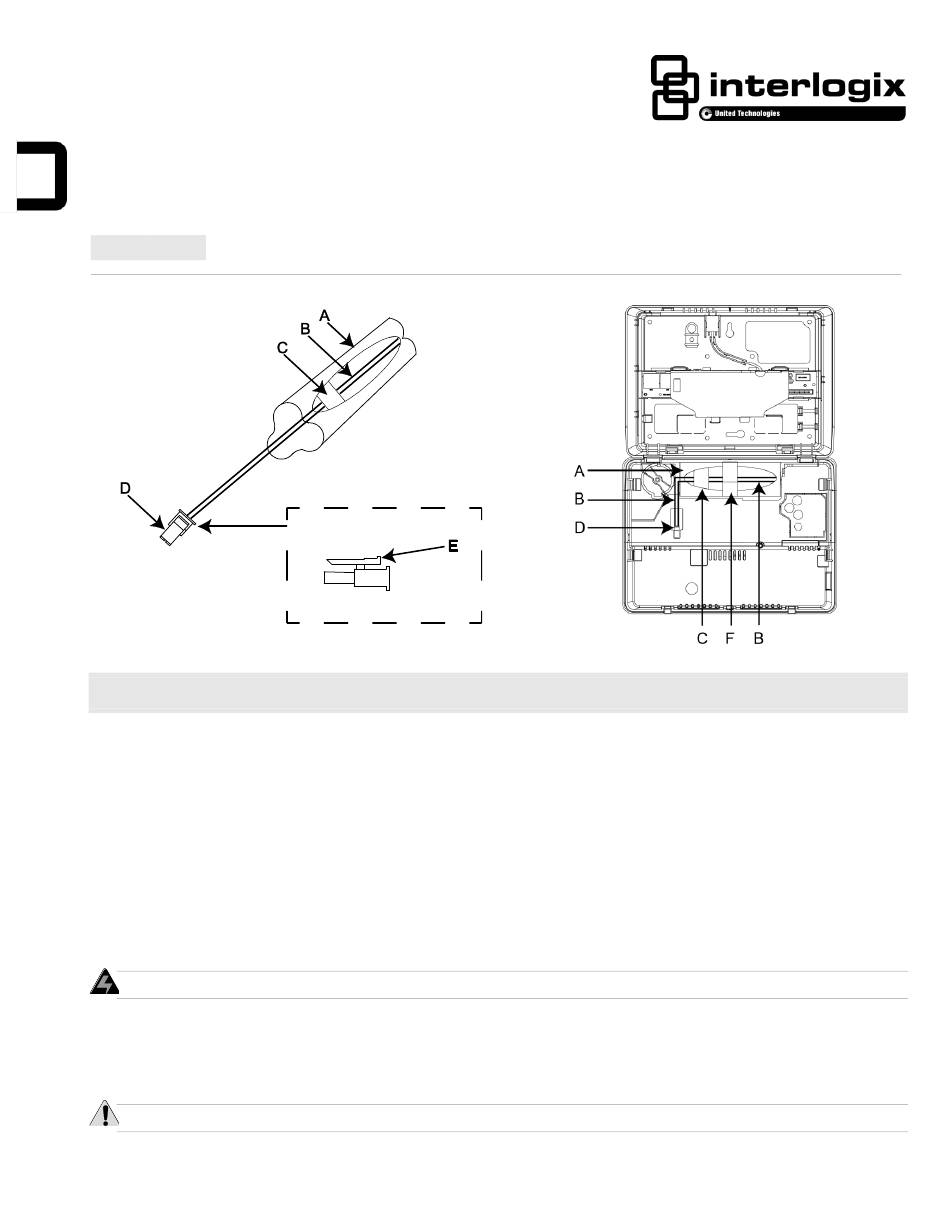

1. Battery

English: Installation Sheet

Description

The Advisor™One self-contained lifestyle management and security system detects situations and provides control and information
to home and small business owners (P/N AVO-1037).
This document provides instructions on replacing the rechargeable 7.2 VDC, 2800 mAh NIMH backup battery (P/N AVO-BAT28A)
for use with the AdvisorOne panel.
It is recommended that the backup battery be replaced every 3-5 years or as needed.

Preparation and Installation

Preparing to Install the Battery
WARNING: Use caution when installing or removing the 20JUN14power supply to an outlet with a metal cover.
1. Depending on the situation, it may be necessary to contact the central monitoring station before starting the installation.
2. If a power supply is present, remove the screw from the securement tab and unplug the power supply.
3. Remove the screw securing the panel chassis. Open the panel by pressing down on the tabs and carefully swing the panel
chassis open.
CAUTION: Use static electricity precautions when handling electronic components.
P/N 466-4419 • REV B • 20JUN14

2. Battery Location
