AdvisorOne PSTN Module Installation Sheet
EN CNF ES PR
1. PSTN Module
English: Installation Sheet
Description
The Advisor™One self-contained lifestyle management and security system detects situations and provides control and information
to home and small business owners (P/N AVO-1037).
This document provides instructions on installing and programming the AdvisorOne PSTN module (P/N AVO-PSTN) for use with
the AdvisorOne panel.
The PSTN (Public Switched Telephone Network) Module enables alarm reporting and two-way voice communication with central
stations via PSTN. The module also makes it possible to receive voice event notifications from the system. The PSTN module,
when used with the Enterprise Downloader Software (EDS), makes it possible to remotely configure and program the AdvisorOne
panel.
Preparation and Installation
Preparing to Install the PSTN Module
WARNING: Use caution when installing or removing the power supply to an outlet with a metal cover.
1.
Depending on the situation, it may be necessary to contact the central monitoring station before starting the installation.
2.
If a power supply is present, remove the screw from the securement tab and unplug the power supply.
P/N 466-4409 • REV B • 30APR15

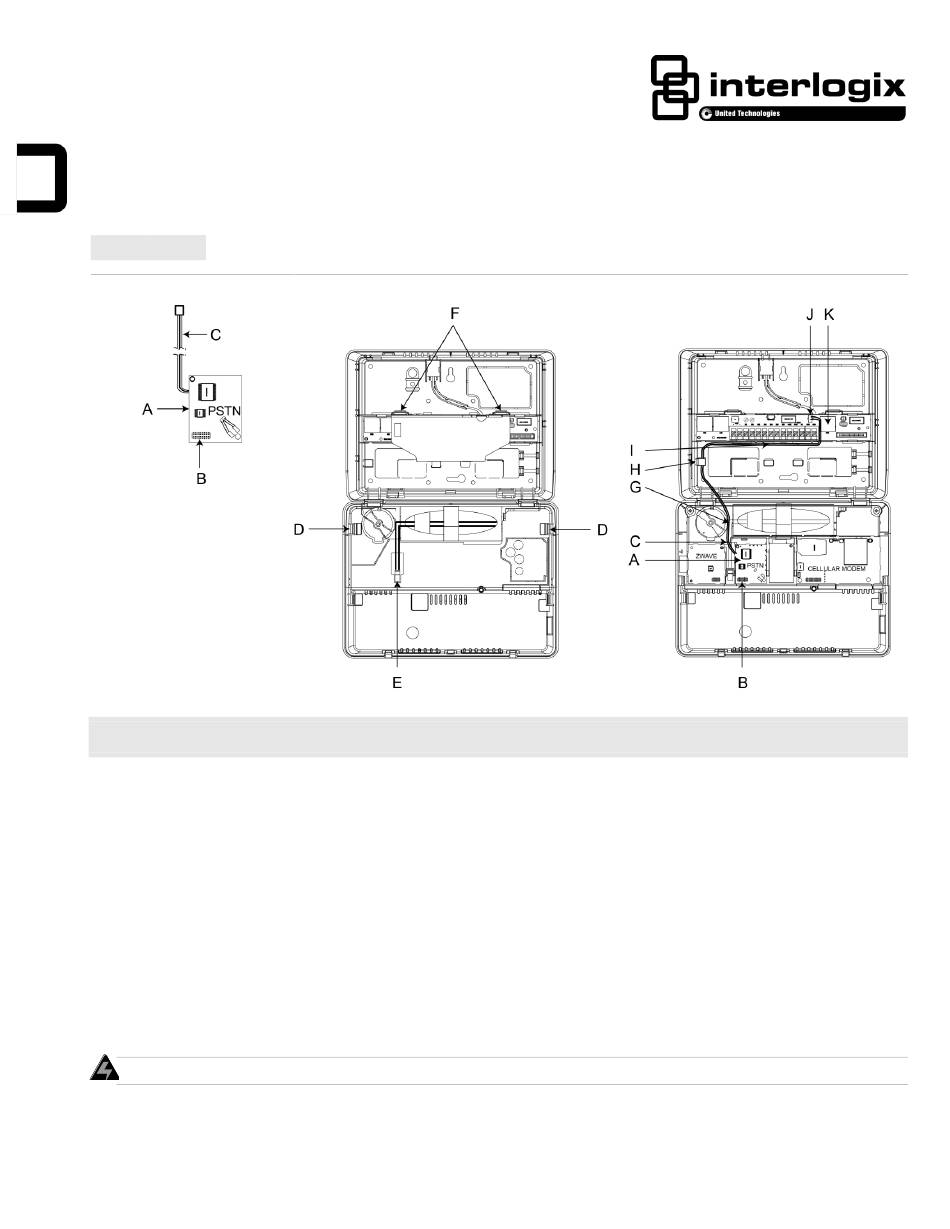

2. Tabs and Battery Connector
3. Without Covers
1 / 5
Advertisement
Table of Contents
Related Manuals for United Technologies Interlogix AdvisorOne
Summary of Contents for United Technologies Interlogix AdvisorOne
- Page 1 AdvisorOne PSTN Module Installation Sheet EN CNF ES PR 1. PSTN Module 2. Tabs and Battery Connector 3. Without Covers English: Installation Sheet Description The Advisor™One self-contained lifestyle management and security system detects situations and provides control and information to home and small business owners (P/N AVO-1037). This document provides instructions on installing and programming the AdvisorOne PSTN module (P/N AVO-PSTN) for use with the AdvisorOne panel.
- Page 2 Remove the screw securing the panel chassis. Open the panel by pressing down on the tabs and carefully swing the panel chassis open. CAUTION: Use static electricity precautions when handling electronic components. Disconnect the battery from the battery connector (E in Figure 2) by pressing down on the wire end of the battery clip. To access the location of the PSTN module, remove the Communication Modules Cover by pulling outward on the tabs (D in Figure 2) and then lifting upward when tabs release.
- Page 3 Table 1: Powering the Panel Installation Action Note Plug the power supply into the outlet and secure with the supplied screw. Canada Plug the power supply into the outlet. Do not use the securement tab and screw. All Other Installations Follow regional requirements.
- Page 4 Troubleshooting The PSTN Module is Installed and is not Recognized in the System Status • The system does not see the installed PSTN module. • The PSTN module may not be seated properly. • Remove the PSTN module and check that the pins are straight and not bent. Install the module, making sure that it is seated correctly.
- Page 5 +1 855 286 8889. © 2015 United Technologies Corporation. Interlogix is part of UTC Building and Industrial Systems, a unit of United Technologies Corporation. All rights reserved. Limitation of Liability To the maximum extent permitted by applicable law, in no event will Interlogix be liable for any lost profits or business opportunities, loss of use, business interruption, loss of data, or any other indirect, special, incidental, or consequential damages under any theory of liability, whether based in contract, tort, negligence, product liability, or otherwise.
