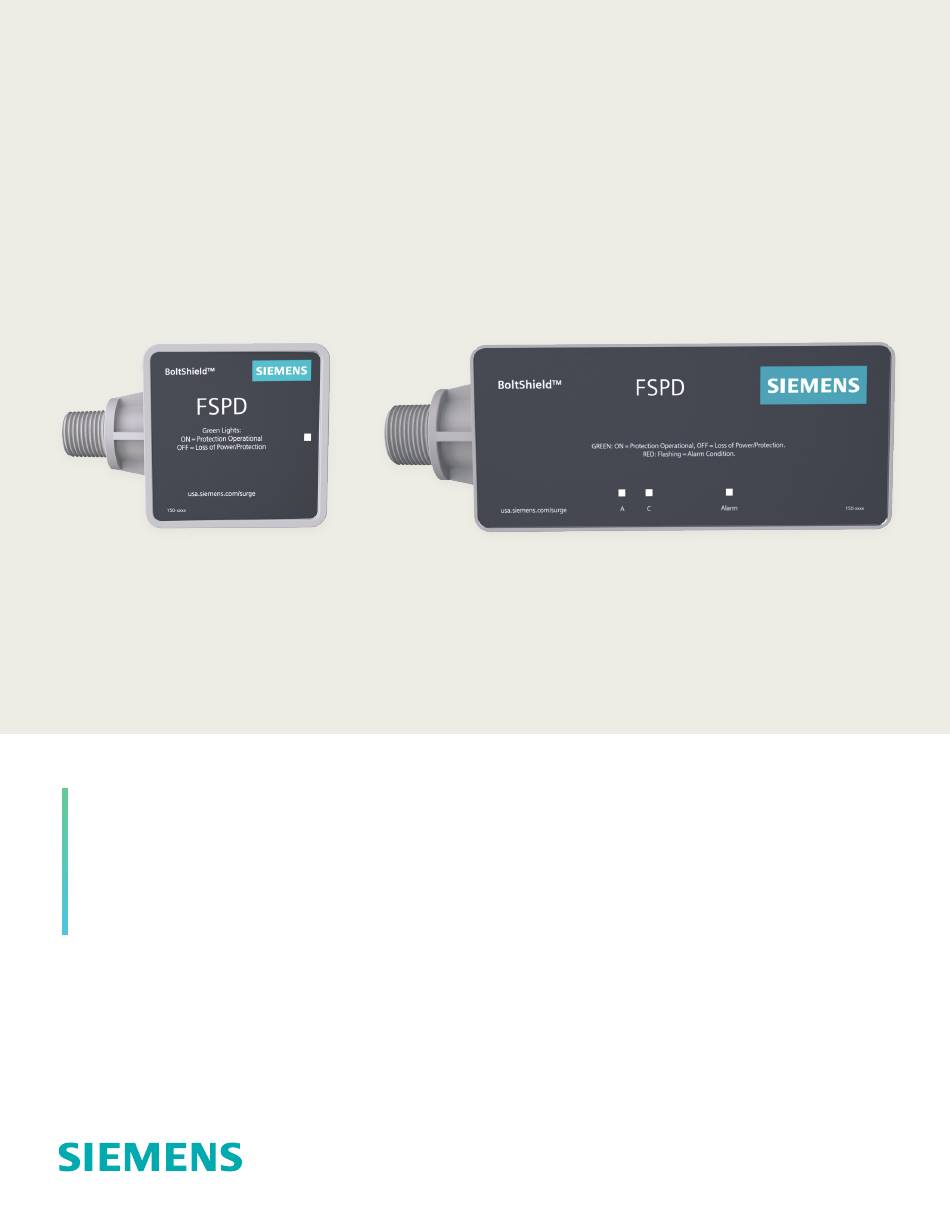

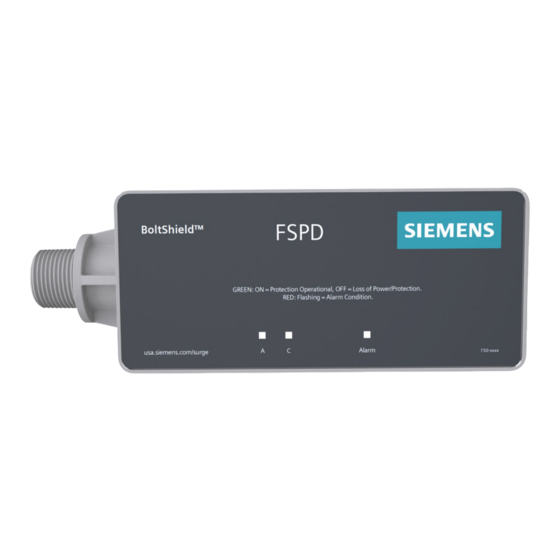

- Page 1 FSPD 036 FSPD060, FSPD100, FSPD140 FSPD SERIES FOR EXTERNAL APPLICATIONS BoltShield Surge ™ Protection Devices usa.siemens.com/surge...
- Page 2 Material ID Surge Current Rating Material ID Surge Current Rating FSPD036 36kA FSPD060 *Coming Soon* 60kA FSPD100 *Coming Soon* 100kA FSPD140 140kA General Specifications General Specifications UL Type Designation Type 1 UL Type Designation Type 2 UL 1449 I-nominal Rating 10kA UL 1449 I-nominal Rating 20kA...
- Page 3 OFF = Loss of Power/Protection ON = Protection Operational 2.75 Installation Type Indoor/Outdoor OFF = Loss of Power/Protection Mounting Method Flush/Flange/Through-hole Green Lights: usa.siemens.com/surge ON = Protection Operational OFF = Loss of Power/Protection 150-xxxx [108] 4.25 [35] [88] 1.38 3.45 4.25...
- Page 4 3617 Parkway Ln specific variables including field conditions Peachtree Corners, GA 30092 and project parameters. Siemens does not United States of America make representations, warranties, or Telephone: +1 (800) 333-7421 assurances as to the accuracy or www.usa.siemens.com/surge...
- Page 5 Integrated optimized thermal protection • 10 year standard warranty Audible alarm w/ silence switch/button Fits in footprint of Siemens QP breaker • Audible Alarm *Type 1 SPDs suitable for use in Type 2 applications Modes of protection (L-N or L-G, L-L)
- Page 6 D = 240V, 3Ø 3W (Fig.4) next level distribution equipment. This new requirement also applies when service equipment is replaced. The Siemens BoltShield **Can also be used on 208Y/120V, 1ф, 3W System family of QSPD products allows this to be done easily and at a reasonable cost.
- Page 7 Wiring configurations Split Phase A (BLK) Hot (BLK) Phase B (BLK) Neutral (WHT) Neutral (WHT) Hot (BLK) Phase C (BLK) Ground (GRN) Ground (GRN) Figure 1 Figure 2 2 Hots, 1 Neu, 1 Grnd 3 Hots, 1 Neu, 1 Grnd Hi-Leg Delta (B High) Delta &...
- Page 8 5400 Triangle Parkway constitute a performance guarantee for any Norcross, GA 30092 projects. Actual results are dependent on variable conditions. Accordingly, Siemens does not make Siemens Technical Support: 1-800-333-7421 representations, warranties, or assurances as to info.us@siemens.com the accuracy, currency or completeness of the Scan the QR code to go directly content contained herein.
- Page 9 INSTALLATION, OPERATION AND MAINTENANCE MANUAL Surge Protection Devices FSPD, TPS4 03, TPS4 09, TPS4 11 usa.siemens.com/spd...
- Page 10 FSPD, TPS4 03, TPS4 09, TPS4 11 TPS4 03, TPS4 09, TPS4 11 Installation Instructions DANGER Hazardous Voltage Will cause death or serious injury. Turn off power before working on this equipment WARNING Safety First – Hazardous Voltage and Shock Hazard •...
- Page 11 Inspect the entire shipping container for damage or signs of mishandling. Remove the packing materials and further inspect the unit for any obvious shipping damages. If any damage was found and is a result of shipping or handling, immediately file a claim with the shipping company and contact Siemens customer support.
- Page 12 FSPD, TPS4 03, TPS4 09, TPS4 11 TPS4 09 Catalog Logic TPS4 Catalog No. Voltage Code Surge Current (kA) Options A = 120/240 V, 1Ø, 3W 13 = 130 kA per phase E = Extended B = 120/240 V, 3Ø, 4W indicator light D = Dry C = 120/208 V, 3Ø, 4W...
- Page 13 FSPD, TPS4 03, TPS4 09, TPS4 11 Pre-Installation and Installation Planning Operating Environment The standard unit uses a NEMA 4X enclosure. Flush-mount kits are available as options. Before installing, ensure that your enclosure type and application are appropriate with regard to moisture, dirt, excessive dust, flammable materials or atmospheres, corrosive vapors, etc.
- Page 14 10. Make sure system is bonded per NEC® and is clear of hazards or faults before energizing (N-G bonding not per NEC® will fail SPDs: #1 cause of SPD failures). 11. Energize and confirm proper operation of indicators and/or options. If Audible Alarm cycles, de-energize immediately and contact Siemens Technical Support. INSTALLATION, OPERATION AND MAINTENANCE MANUAL...
- Page 15 FSPD, TPS4 03, TPS4 09, TPS4 11 Operation LED Operation Each SPD contains 1 green LED per phase shown in the appropriate voltage configuration. When the LEDs are green complete protection is present. Upon MOV stack failure the LED corresponding to the failed mode will extinguish.
- Page 16 3617 Parkway Ln only, and its effectiveness will be subject to specific variables including Peachtree Corners, GA 30092 field conditions and project parameters. Siemens reserves the right to United States of America modify the technology and product specifications in its sole discretion Telephone: +1 (800) 333-7421 without advance notice.
