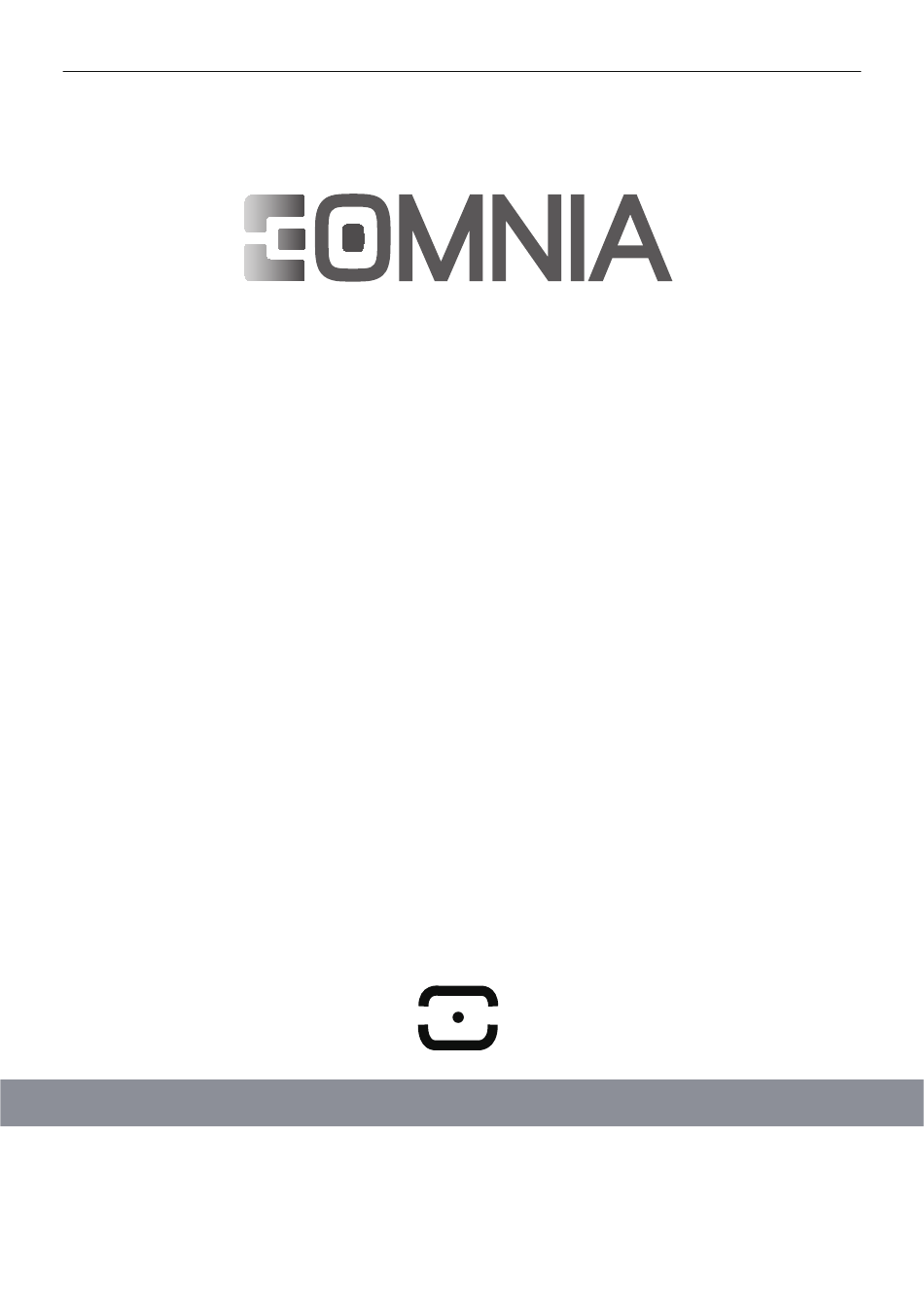

- Page 1 User Manual EH.86 Series Electronic Handlesets Version 1.1...
-
Page 3: Table Of Contents
Contents Read before use The main technical parameters ----------------------------------------------------------------------------------------- 1 Unlocking method ----------------------------------------------------------------------------------------------------------- 2 Instructions for use Unlocking method ----------------------------------------------------------------------------------------------------------- 3 Keys to unlock and lock---------------------------------------------------------------------------------------------------- 4 Electric locking and unlocking ------------------------------------------------------------------------------------------ 5 Emergency power supply unlock--------------------------------------------------------------------------------------- 6 Installing and replacing batteries-------------------------------------------------------------------------------------- 6 Reset ----------------------------------------------------------------------------------------------------------------------------- 7 Instructions Operation process icon definition-------------------------------------------------------------------------------------- 8... -
Page 4: Read Before Use
Read before use The main technical parameters Item Description Features Number of users: 100 Password Unlock (5 administrators + 95 ordinary users) Number of users: 100 IC Card (Fob) Unlock (5 administrators + 95 ordinary users) Mechanical Key 2 Pcs Operating Voltage 4 pcs 1.5V AA alkaline batteries ≤4.9V±0.1V... -
Page 5: Unlocking Method
Read before use Unlocking method 4 WAY Unlocking method 1. Key 2. Password 3. IC Card (Fob) 4. Tuya Bluetooth APP OPEN Password unlock 1. Supports 4~9 digit passwords 2. Number of users: 100 (5 administrators + 95 users) regular IC Card (Fob) unlocking 1. -
Page 6: Instructions For Use
Instructions for use Unlocking method Use key to unlock ① 1. Insert the key into the keyhole of the lock and turn ② the key to retract the deadbolt. 2. Then press down the to open the door. thumbpiece Use password to unlock 1. -
Page 7: Keys To Unlock And Lock
Instructions for use Keys to unlock and lock Right door opening ① ① ② Insert the key into Rotate the key 180° Rotate the key 90° clockwise, the cylinder hole. counterclockwise to retract the deadbolt, press the extend the deadbolt downwards, retract thumbpiece to lock the door. -
Page 8: Electric Locking And Unlocking
Instructions for use Electric locking and unlocking Right door opening Lock the door outsie Unlock the door outside Lock the door inside Unlock the door inside ① ① ① ② ① ② Press the “#” key, the 1. Enter the unlocking information Turn the knob 90°... -
Page 9: Emergency Power Supply Unlock
Instructions for use Emergency power supply unlock There is a Type-C USB backup power interface on the front panel. When the battery is low or completely dead, you can use the data cable to connect to the 5V mobile power supply, activate the door lock, enter the password or card, after successful verification, retract the deadbolt, then press down the to unlock the door. -
Page 10: Reset
Instructions for use Reset Initialize button 1. Open the battery cover. 2. Initialize button for 10 seconds (The system will prompt: 3 beeps). 3. The system prompts “Restore to factory mode” until the system prompts “Restore to factory mode completed”. 4. -
Page 11: Instructions
Instructions Operation process icon definition Enter “ ” + “#” to enter the operating system. Enter “Administrator” information. Enter “card” information. CARD The “ ” key is the “return key” or "return to the previous leve. “#” key: “confirm key” or “lock key”. When the door is locked, this key can be used as a “doorbell”. -
Page 12: Factory Mode
Instructions Factory mode 1. When the lock is brand new or has been restored to factory mode, the initial password 123456 and any IC card can be used to unlock. 2. Touch to activate button panel, the system will prompt “There is no administrator in the system, please set up an administrator”. -
Page 13: Add Regular User
Instructions Add regular user Enter “2” to add regular user Enter “2” to add a card Enter “1” to add password Exit system CARD Enter the “4 9” Enter the same digit password password Exit system Notice 1. The maximum number of regular users is 190pcs; regular user numbers: 011~200. 2. -
Page 14: Delete Regular Users
Instructions Delete regular users Enter “3” to delete Enter “2” to delete regular user regular users Enter “2” to clear all users Enter “1” to clear users by number Prompt tone: “beep” Exit system Enter number Exit system Set the door lock's opening direction Door opening direction calibration Enter “1”... -
Page 15: Automatic Lock Settings
Instructions Automatic lock settings Enter “4” system Enter “2” to automatically settings lock setting Enter “2” to turn off Enter “1” to turn on countdown unlock countdown lock Successfully set Exit system Enter “1” [5s] Enter “2” [10s] Successfully set Exit system Enter “3”... -
Page 16: Volume Settings
Instructions Volume settings Enter “4” system Enter “3” volume settings settings Enter “1” [ Low Volume ] Enter “2” [ Middle Volume ] Alert tone: beep Exit system Enter “3” [ High Volume ] Enter “0” [ Turn Sound Off ] Notice 1. -
Page 17: Prevent-Pry Settings
Instructions Prevent-pry settings Prevent-pry switch In order to prevent malicious prying of the door lock (or malicious damage), this product is equipped with an anti-pry alarm function and the anti-pry switch position (as shown in the picture). Enter “4” system Enter “5”... -
Page 18: Turn On Bluetooth Broadcast
Instructions Turn on Bluetooth broadcast Enter “08” Successfully set Notice 1. When the lock is in factory mode, Bluetooth broadcast is automatically turned on by default. 2. After the lock is registered as an administrator, the administrator needs to be verified to enable Bluetooth broadcasting. -
Page 19: Tuya App Function Introduction
Instructions Tuya APP function introduction 1. Bluetooth unlocking 2. Unlock with temporary password 3. Member management 4. APP adds user unlocking information 5. Unlocking record query 6. System language and volume For more functions, please check the APP description Notice 1.
