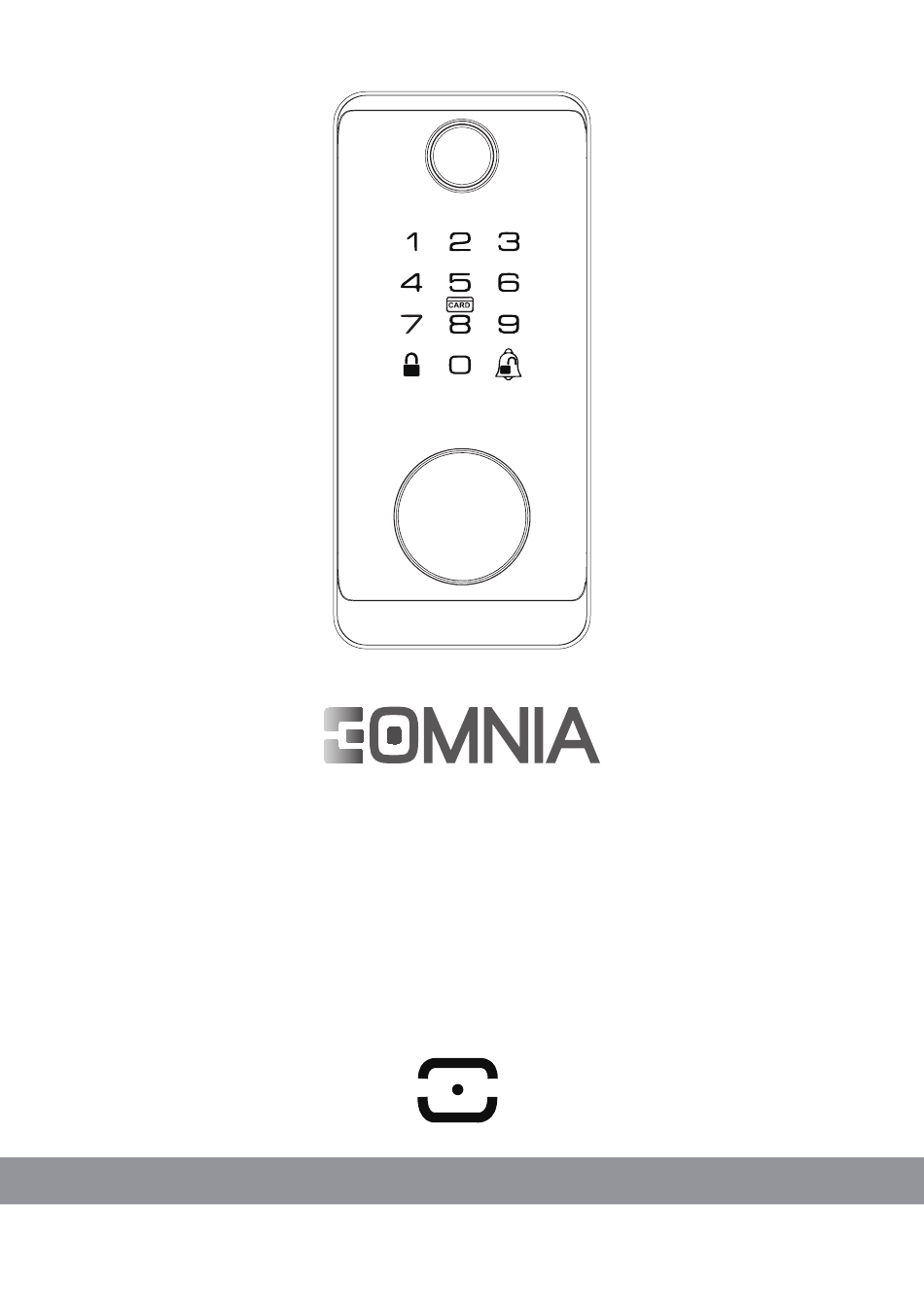

- Page 1 USER MANUAL 3112 Fingerprint Door Lock Version V1.1...
-
Page 4: Table Of Contents
CONTENTS ---------------------------------------------------------------------------------------------------- Technical Parameters --------------------------------------------------------------------------------------------------------- Package Contents ----------------------------------------------------------------------------------------------------------- Product Diagram ------------------------------------------------------------------------------------------------- Installation Instructions --------------------------------------------------------------------------------------------------- Function & Operations --------------------------------------------------------------------------------------------- 1. Description of door lock ID ----------------------------------------------------------------------------------------------------------- 2. Function setting ------------------------------------------------------------------------------------------------------------- 3. Users settings ----------------------------------------------------------------------------------------------------------- 4. System settings ----------------------------------------------------------------------------------------------- 5. Dual verification settings ------------------------------------------------------------------------------------------------------ 6. -
Page 5: Technical Parameters
Technical Parameters Type Item Description User capacity 200 pcs (Max of fingerprint + password + card) ＜100 pcs Fingerprint ＜200 pcs Password Unlock ＜200 pcs Card Remote control 2 Pcs Operating voltage 4 pcs batteries (5#), 1.5V AA alkaline batteries Battery life Used up to 14,000 times under normal conditions Power Supply... -
Page 6: Package Contents
Package Contents M6×55 Screw ×2 ST4.0×20 Screw ×4 Back Panel Deadbolt Latch Strike Plate PH0 Screw ×2 Keypad Keyhole Mounting Plate Front Panel Back Panel Mounting Plate Dust Box Strike Plate Deadbolt Latch ST4.0×20 Screw ×5 PH0 Screw ×2 M6×55 Screw ×2 IC Card (Fob）×2 Key ×2... -
Page 7: Product Diagram
Product Diagram Fingerprint Touch pad Card sensing area Ring / Confirm Lock / Return Keyhole (Rotate to open) Emergency power interlace Battery cover Turnpiece... -
Page 8: Installation Instructions
Installation Instructions Picture version 1. Insert deadbolt latch into door holes. Actual size ST40×20 Screw ×2 Make sure at the bottom Rotate deadbolt latch and adjust the length The next step 2. Strike plate and dust box are installed on the door frame. 3/4"(19mm) Screws-2ea. - Page 9 Installation Instructions 3. Installing front plate. Wires Thread the cable through the door hole under the bolt and push the keyboard onto the door. Please pull out the key when installing. 4. Remove the mounting plate. Remove the mounting plate 5.
-
Page 10: Function & Operations
Installation Instructions 7. Ensure that the cable is closely connected. 8. Tighten the screws. PH0 Screw ×2 The smooth surface of the plug shall be at the bottom. 9. Insert the key and test the lock. 10. If the mounting plate and keyboard If the lock does not extend or retract, are not straight, loosen the mounting plate adjust the screws on the mounting plate. -
Page 11: Function Setting
Function & Operations Role name Password type ID number Administrator Fingerprint / Password / IC card 001-010 Normal user Fingerprint / Password / IC card 011-200 The administrator password has more privileges than the normal user. 2. Function setting A. Adding Administrator B. -
Page 12: Users Settings
Function & Operations 3. Users settings A. Adding Users B. Delete Users Users Settings Users Settings Press “ 1 ”→ “ ” Press “ 1 ”→ “ ” Enter Administrator Information Enter Administrator Information and press “ ” and press “ ”... -
Page 13: System Settings
Function & Operations 4. System settings A. Volume settings Operating steps Voice prompt Press “ 1 ”→ “ ” Input Administration Information Enter Administrator Information and press “ ” Administrator settings User settings Three System settings Four Restore factory settings Press “... -
Page 14: Dual Verification Settings
Function & Operations 5. Dual verification settings Operating steps Voice prompt Press “ 1 ”→ “ ” Input Administration Information Enter Administrator Information and press “ ” Administrator settings User settings Three System settings Four Restore factory settings Press “ 3 ” Volume settings Dual verification settings Three... -
Page 15: Language Selection
Function & Operations 6. Language selection Operating steps Voice prompt Press “ 1 ”→ “ ” Input Administration Information Enter Administrator Information and press “ ” Administrator settings User settings Three System settings Four Restore factory settings Press “ 3 ” Volume settings Dual verification settings Three... -
Page 16: Unlock Direction Settings
Function & Operations 7. Unlock direction settings Operating steps Voice prompt Press “ 1 ”→ “ ” Input Administration Information Enter Administrator Information and press “ ” Administrator settings User settings Three System settings Four Restore factory settings Press “ 3 ” Volume settings Dual verification settings Three... -
Page 17: Auto-Lock Setting
Function & Operations 8. Auto-lock setting Operating steps Voice prompt Press “ 1 ”→ “ ” Input Administration Information Enter Administrator Information and press “ ” Administrator settings User settings Three System settings Four Restore factory settings Press “ 3 ” Volume settings Dual verification settings Three... -
Page 18: Restore Factory Settings
Function & Operations 9. Restore factory settings Operating steps Voice prompt Press “ 1 ”→ “ ” Input Administration Information Enter Administrator Information and press “ ” Administrator settings User settings Three System settings Four Restore factory settings Press “ 4 ” Please to confirm If confirm. -
Page 19: Other Instructions
Function & Operations 10. Other instructions Function Functional description 3 9 0 5 Correct password Anti-peep tech Random number Note: Anti-peep password length supported 20 bits When volt is lower than 4.8 V, the lock will automatically alarm (voice broadcast "insufficient power, please replace Low battery alarm the battery").
