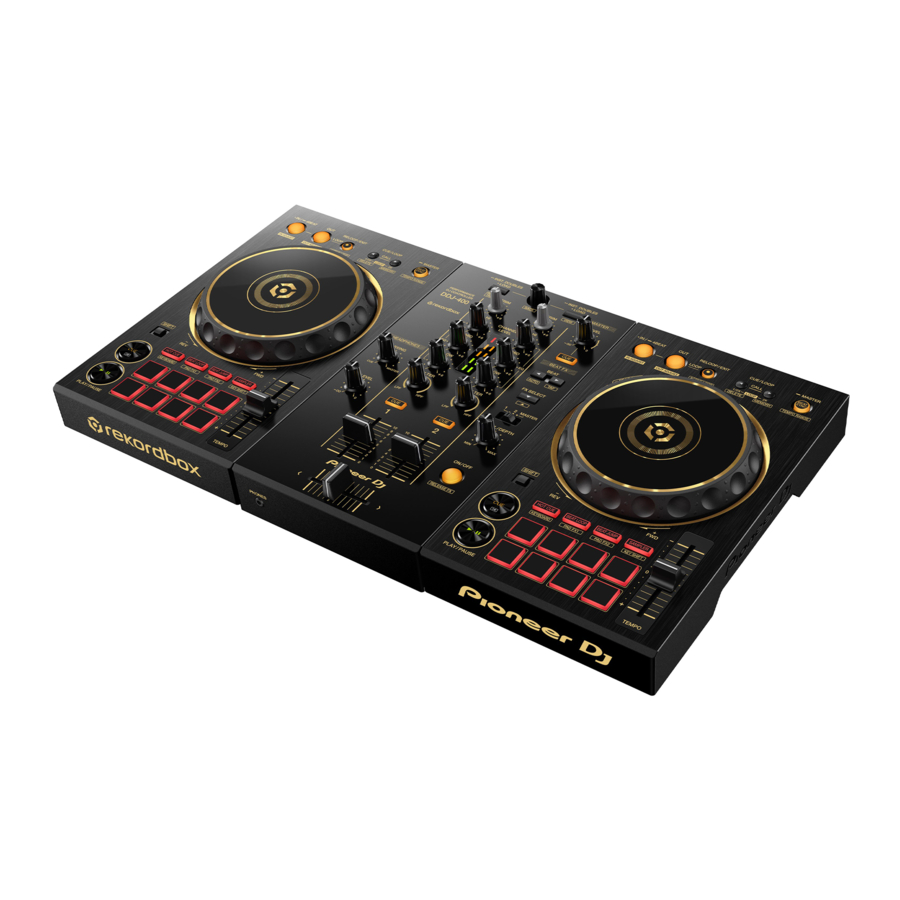

PIONEER DJ DDJ-400 Manual

Connecting to a PC

*1 RCA audio cables are not supplied with the unit.
*2 Adjust the volume of the device* connected to the [MASTER] output until you have a volume level you're happy with.
*Speakers with built-in amplifiers, etc.
*3 The [MIC] input supports only unbalanced input.
*4 If you don't use a microphone, minimize the volume level using the [MIC LEVEL] knob.
*5 Be sure to use the supplied USB cable for constant high-level performance. If your PC has only a USB Type-C port, you'll need to use a USB Type-C male to USB-A female cable (sold separately).
Be sure to launch djayPRO for Windows first, then connect the unit with your PC using the supplied USB cable.

Prior to use (important)

• Download djayPRO for Windows from the Microsoft Store. (paid feature)https://www.microsoft.com/en-us/p/djay-pro/9nblggh4vm4h?activetab=pivot: overviewtab
• If you already have djayPRO for Windows installed, update it to the latest version.
• If your PC has only a USB Type-C port, you'll need to use a USB Type-C male to USB-A female cable (sold separately).
• Refer to the Hardware Diagram on the Pioneer DJ support page for functions you can control from the unit.

System requirements

Supported operating systems: Windows® 10 Version 1607 or later (32/64-bit)
USB port: Your PC must have a USB 2.0 port to connect with the unit.
Internet connection: You'll need an internet connection for downloading the software and streaming.
For information on the latest system requirements, compatibility and supported operating systems, visit the Microsoft Store.
https://www.microsoft.com/en-us/p/djay-pro/9nblggh4vm4h?activetab=pivot: overviewtab

Turn the power on

First, turn on your PC. Then, turn on the power of all connected devices such as speakers with built-in amplifiers.
Be sure to launch djayPRO for Windows first, then connect the unit with your PC using the supplied USB cable.

Check the audio device settings

Follow the instructions below to confirm that the unit is recognized as an audio device.
