- Page 1 Cal. 5D22, 5D44 INSTRUCTIONS (P. 3) BEDIENUNGSANLEITUNG (S. 23) INSTRUCTIONS (P. 43) ISTRUZIONI (P. 63) INSTRUCCIONES (P. 83) INSTRUÇÕES (P. 103) (123 )
- Page 2 SEIKO KINETIC . Conservez ce mode d’emploi pour toute référence ultérieure. Grazie di aver acquistato questo orologio SEIKO KINETIC® Cal. 5D/5D44. Per ottenerne i migliori risultati leggere attentamente le istruzioni di questo libretto prima di passare all'uso dell'orologio stesso.
-
Page 3: Table Of Contents
CONTENTS Page FEATURES..............................DISPLAY.AND.BUTTON.OPERATION......................CROWN.WITH.DRIVING.WHEEL........................HOW.TO.CHARGE.AND.START.THE.WATCH....................HOW.TO.READ.THE.DIRECT.DRIVE.INDICATOR..................TIME/CALENDAR.SETTING......................... . IMPROPER.FUNCTION..........................AUTOMATIC.HAND.ALIGNMENT........................ . POWER.SOURCE.(KINETIC.E.S.U.)......................SPECIFICATIONS............................IFor the care of your watch, see "TO PRESERVE THE QUALITY OF YOUR WATCH"... -
Page 4: Features
Unlike the conventional quartz watch powered by the button-type battery, the KINETIC is an analog quartz watch equipped with an Automatic Generating System, the unique technology developed by SEIKO, which generates electrical energy to power the watch by utilizing the movement of the arm or wrist, and stores it in the KINETIC ELECTRICITY STORAGE UNIT (KINETIC E.S.U.) The watch... -
Page 5: Display.and.button.operation

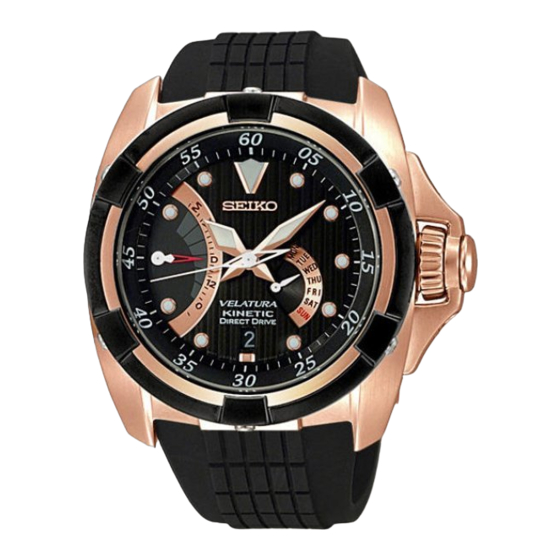

DISPLAY AND BUTTON OPERATION CAL. 5D44 ● Button (only used for Minute hand special operations) Normal position: Electric power generation by manual winding First click position: Date Hour hand and day setting Direct drive indicator hand (for indicating amount of CROWN power reserved, power generation status and amount of generated... - Page 6 CAL. 5D22 ● Button (only used for Minute hand special operations) Normal position: Electric power generation by manual winding First click position: Date Hour hand setting CROWN Direct drive indicator hand (for indicating amount of power reserved, power Second click position:...
-
Page 7: Crown.with.driving.wheel
CROWN WITH DRIVING WHEEL u Some models may have a crown with a special structure as illustrated below. Refer to the following instructions when operating this type of crown, as it should be operated in a different way from that of ordinary ones. -
Page 8: How.to.charge.and.start.the.watch
HOW TO CHARGE AND START THE WATCH 1. Turn the crown clockwise repeatedly to charge the watch. The manual winding mechanism for generating the ✽ electric power functions when the crown is turned clockwise. The watch can also be charged when the crown is turned in a reciprocating motion. - Page 9 . Continue to turn the crown to sufficiently charge the watch. The direct drive indicator hand moves up and down to display the electric power generation ✽ status. When you stop turning the crown, the indicator hand displays the amount of power generat- ✽...
-
Page 10: How.to.read.the.direct.drive.indicator
HOW TO READ THE DIRECT DRIVE INDICATOR The direct drive indicator can be used to check the following: (1) Power reserve amount (continuous operating time) () Real-time power generation status and newly generated amount of power while charging the watch “M+1”... - Page 11 ■ POwER RESERvE INDICATOR The watch checks power reserved in the KINETIC E.S.U and displays how ● long the watch will keep operating in 1 steps (0 - M scale marking). The continuous operating time until approximately one month (0 days) ● can be displayed. The power reserve indicator provides an approximate time that the watch keeps operating ✽...
- Page 12 ■ SCALE TABLE Of POwER RESERvE AmOUNT AND GENERATED POwER AmOUNT Scale. Standby. marking. position. Indication.on. dial (12.h) (Day) 12.H 15.H 18.H 21.H 1.D Power. The.watch. reserve. stops. amount operating. Amount.of. 1.H. 1.H. 1.H. 2.H. 2.H. 3.H. 3.H. Min. Min. generated. power Min. Min. Min. Min. Min. Min. H : Hour Scale.
- Page 13 Ex.) How to read the scale table of power reserve and generated power. Scale.marking. Power.reserve Scale.marking. Generated.power Not.shorter.than.9.hours. 1.hour.or.more. and.not.longer.than.12. 3.hour.or.more hours 6.hour.or.more Not.shorter.than.2.days. and.not.longer.than.3.days 30.days...
- Page 14 ■ HOw TO READ THE DIRECT DRIvE INDICATOR wHILE CHARGING THE wATCH 1. Turn the crown clockwise. After approximately 1 second, the direct drive indicator hand starts moving. . Continue to turn the crown. The indicator hand moves upward and downward according to the power generation status. When fur ther continuing to turn the crown, the point where the indicator hand starts moving goes up as the amount of generated power increases.
- Page 15 will result. The watch can be charged if it is swung from side to side, however, it may take time until it ✽ displays the power generation status. Even if the watch is worn on the wrist after it is charged fully (power reserve of 30 days), ✽...
- Page 16 <Display and movement flow of the direct drive indicator hand while charging the watch> Power generation status and generated power display Power reserve Initial status In-progress display A..While.turning.the. B..When.temporarily. After. crown stopping.turning.the. approximately. crown 1.second.since. starting.to.turn. the.crown. The power reserve indicator hand ✽ points at a scale marking between 0 Power reserve and ”M+1” according to power gen- display eration status. After.
-
Page 17: Time/Calendar.setting
TIME/CALENDAR SETTING 1. Pull out the crown to second click when the second hand is at the 1 o’clock position. . Turn the crown to set the time. ✽ When setting the hour hand, check that AM/PM is correctly set. The watch is de- signed so that the calendar changes once in 24 hours. - Page 18 ■ HOw TO SET THE DATE AND DAy (DAy SETTING ONLy fOR 5D44) 1. Pull out the crown to first click. . Turn the crown counterclockwise until the current date appears. . Turn the crown clock wise to set the day hand to point at the correct day of the week. ✽ Do not set the date and day of the week between 9:00 p.m.
-
Page 19: Improper.function
IMPROPER FUNCTION When the watch stops operating even though it displays the remainder of the power reserve, follow the instructions below to reset the built-in IC. ■ HOw TO RESET THE BUILT-IN IC 1. Pull out the crown to the second click. . Press the button for seconds or more using a sharp-pointed tool (e.g. ball point pen). -
Page 20: Automatic.hand.alignment
If the indicator hand points at under the 0 position, sufficiently charge the watch. ✽ Refer to “How to charge and start the watch”. By conducting this operation, the indicator hand moves to the 0 position even ✽ though it displayed that there was remaining power reserve; however, this is not a malfunction. -
Page 21: Power.source.(Kinetic.e.s.u.)
POWER SOURCE (KINETIC E.S.U.) This watch requires no periodic battery replacement as it is powered by the exclusive secondary battery, which is completely different from conventional batteries for watches. This exclusive secondary battery is an environmentally friendly, clean energy storage device. CAUTION Never install a silver oxide battery for conventional watches in place of the KINETIC E.S.U. , which can generate heat that can cause bursting or ignition. -
Page 22: Specifications
SPECIFICATIONS Frequency.of.crystal.oscillator......32,768.Hz.(Hz.=.Hertz.….Cycles.per.second) Loss/gain.(monthly.rate)........Less.than.15.seconds.(worn.on.the.wrist.at.normal. temperature.range.5°.C.~.35°.C) Operational.temperature.range......–10°.C.~.+60°.C. Driving.system............Step.motor:.2.pieces Display.system............. Hour,.minute,.second,.date,.and.day.of.the.week.(day. display.only.for.5D44). Power.reserve.display,.power.generation.status. display,.and.generated.power.amount.display. KINETIC.electricity.storage.unit......Button.type,.1.piece Duration.of.charge..........Approximately.1.month.(if.the.watch.is.fully. charged) Additional.functions..........Overcharge.prevention.function IC.(Integrated.Circuit)..........C-MOS-IC,.1.piece. 10. Generating.system..........Miniature.AC.generator The.specifications.are.subject.to.change.without.prior.notice.for.product.improvements.
