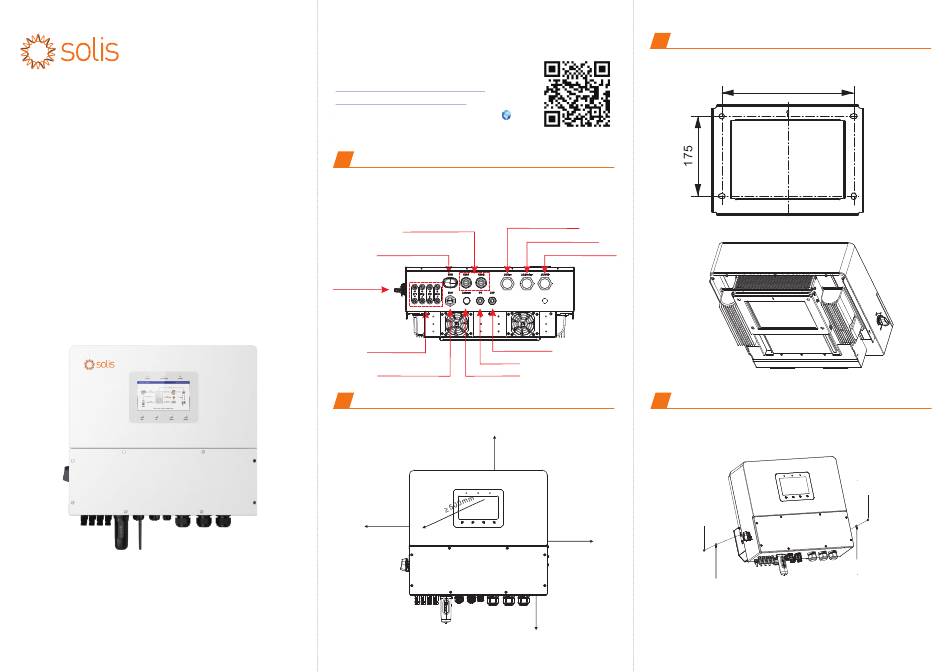

Quick Installation Guide
Version 1.0
S6-EH3P(12-20)K-H
S6-EH3P(8-12)K-LV-H
Ginlong Technologies Co., Ltd.
Note:
Installation Manual Download
For access to the manual please scan
the QR code below or you can go the URL
https://www.solisinverters.com/
global/downloadcenter.html
After entering the page, you can click "
icon to change to preferred language.
Product Description
1
The Solis S6 Series is designed for residential hybrid systems,
which can work with batteries to optimize self-consumption.
The unit can operate in both off- and on-grid modes.
Generator Port
Communication
Data Logging
Stick (Optional)
DC Switch
PV Input
ATS Signal
CT
Battery Input
Antenna
2
Installation Clearance
Minimum clearance is required.
≥300mm
≥300mm
3
Mounting Hole Size
Dimensions of mounting bracket.
"
AC Backup Port
AC Grid Port
4
PE Cable Installation
An external ground connection is provided at the right side of
inverter. Prepare OT terminals: M4..
Grounding screw
≥300mm
≥500mm
289
unit:mm
Grounding screw
