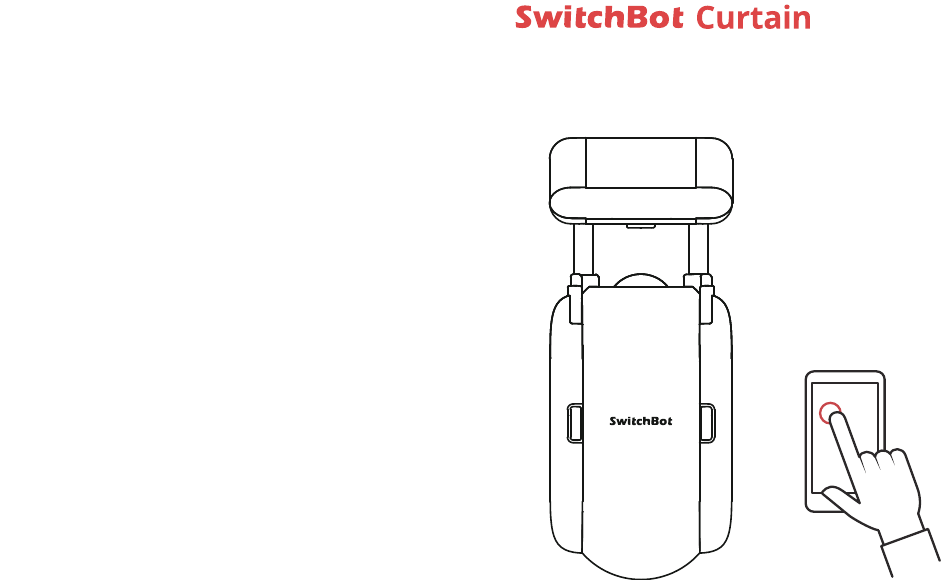

- Page 1 User Manual (Rod) www.switch-bot.com...
-
Page 2: Table Of Contents
Contents 1. In the Box 2. Device Instruction 3. What You’ll Need before Installation 4. Installation 5. Control 6. Settings 7. Charging, Firmware and Factory Reset 8. Specification 9. Return and Refund Policy 10. Contact and Support Want to see how it’s done? Go to support.switch-bot.com installation videos and additional tips. -
Page 3: In The Box
In the Box Device Instruction Top Lid Wheel Top Lid Button Main Body Hook Pair (Rod) Rod Hook Arm Motor Hook Arm Switch Top Lid (Rod) Type-C Cable Reset Button Hook Clip Type-C Charging Port Indicator Light & Hook Light Sensor Clip... -
Page 4: What You'll Need Before Installation
• Wi-Fi if you want to enable Cloud Service After downloading the App, go to • Charge the Curtain for about 4 hours Add Device from the left side menu. Then select Curtain. Follow the App instruction and add your device. - Page 5 Select the Right Curtain Track Select the Open Mode I Rail H＞10.0mm 17.5mm ≥ W ≥ 7.5mm Diameter 15.0mm - 40.0mm U Rail W ≥ 12.5mm H ≥ 6.0mm 8.0mm > W > 6.0mm For single side curtain, tap For double side curtain, tap "Open from right to left"...
- Page 6 Step 2: Install on Your Curtain Track Retrofitting is simple with SwitchBot Curtain. It only takes a few seconds to make your existing curtains smart. It is straight forward and intuitive with our App instruction. Open Adjust The Parts When the Top Lid is connected to the Hook Arms, press...
- Page 7 The Hook Arm Switches will skip off by themselves when the Top Lid and the Motor are firmly attached to the rod. Close the curtain. Then place the Curtain onto the rod Conceal them into the slots. between the first and the second ring behind the panel.
- Page 8 The Hook Arm Switches will skip off by themselves when the Top Lid and the Motor are firmly attached to the rod. Close the curtain. Then place the Curtain onto the rod Conceal them into the slots. between the first and the second grommet behind the panel.
- Page 9 Tab Top Curtains Attach Clips on every other tab. The opposite way Grab the Clips provided in the box. First tab All other Clips should be attached the opposite way Open against the first Clip. Make sure all Clips are sitting on the top of the rod and are aligned with each other.
- Page 10 Place the Curtain onto the rod between the first and the Compress the space between the Top Lid and the Motor second tab behind the panel. as much as you can. Second tab Place onto the rod Compress First Clip...
- Page 11 Installation complete. The Curtain should be hidden Back Tab Curtains behind the panel. Grab the Clips provided in the box. Second tab First tab Open Attach a Clip on the first tab. Attach towards this way First tab...
- Page 12 Attach Clips on every other tab. Place the Curtain onto the rod between the first and the second tab behind the panel. The opposite way Place onto the rod First tab First Clip Second tab All other Clips should be attached the opposite way against the first Clip.
- Page 13 Compress the space between the Top Lid and the Motor as Installation complete. The Curtain should be hidden much as you can. behind the panel. Compress Second tab First tab The Hook Arm Switches will skip off by themselves when the Top Lid and the Motor are firmly attached to the rod.
- Page 14 It requires more Clips and a special plastic Strip which can be purchased from us. Close the curtain and make sure the distances between each fold line are approximately equal. Straigthen the Strip and align the first hole with one outer fold line.
- Page 15 You need to determine how many Clips you need. Count Grab the Clips provided in the box. the number of inner fold lines on the curtain panel. You need one Clip on each inner fold line. Open Attach a Clip to the end of the Strip. Insert the gap on the Strip into the Clip head and flip it over.
- Page 16 Install one Clip onto every inner fold line of the curtain In previous steps, you have counted the number of holes between two outer fold lines. Use this number to panel. Keep the Strip straightened when you install the determine the next position on the Strip that you are to Clips.
- Page 17 Place the Curtain onto the rod between the first and the The Hook Arm Switches will skip off by themselves when second grommet behind the panel. the Top Lid and the Motor are firmly attached to the rod. Conceal them into the slots.
- Page 18 Settings. Curtain. To do that, fully close the curtain so the 2 panels are closest to each other. Connect the upper parts of the two panels by using the Clip. Draw the curtain back and forth to make sure the two panels move as one.
-
Page 19: Control
Lots of convenient ways to control, at your will. App Control Voice Control and Home Automation* Open and close the curtain at your Smart living is powered by your voice fingertip. We offer intuitive App commands. Wouldn't it be great to... -
Page 20: App Control
Even with SwitchBot Curtain, you‘d probably still instinctively draw the curtains by hand sometimes. When it senses you drawing the curtain by more than 5 cm*, the SwitchBot Curtain will kick in and do the work for you. For double side curtain, drawing on one side of curtain will trigger both Curtains to open or close simultaneously. - Page 21 Voice Control and Home Automation* SwitchBot Scene You need to turn on Cloud Service in Settings and then You can set up SwitchBot Scene for home automation within connect respective service. Voice command can trigger the SwitchBot eco-system when you turn on the Cloud fully open and fully close.
-
Page 22: Settings
Tap the gear icon on the Home Page near the Curtain You can pair a Remote in the icon to go to the Settings. Or tap the Curtain icon to go to Settings. Please place your phone, the Control page. - Page 23 It's still in the beta stage and upgrading continuously, so please explore the details in the latest App. Please send feedback via the SwitchBot App in the left side menu with the details. Your feedback is very much appreciated.
-
Page 24: Motion Mode
Performance Mode is the default mode with more powerful strength* but higher noise level. Silent Mode has lower noise level with less powerful strength. The best use case would be waking up with sunshine. * Up to 8 kg / 17 pounds of curtain. -
Page 25: Charging, Firmware And Factory Reset
1. 5V 1A adapter is required to charge with adapter. Hook Arm Switch 2. Battery life is tested under condition of runway of 3 meters, loaded with 8 kg of curtain, opened and closed twice Reset Button Hook Clip Type-C Charging Port day, 25℃. -
Page 26: Specification
Connectivity: Bluetooth 5.0 Long Range Sensor: Accelerometer, light sensor Caution: Strength: Up to 8 kg / 17 pounds of curtain You may lose all the settings after Factory Reset and you may Max Runway: 3 meters need to add the device again and re-calibrate. -
Page 27: Return And Refund Policy
2. Battery life is tested under condition of runway of 3 meters, loaded with 8 kg purchasing day). of curtain, opened and closed twice day, 25℃. Battery life may vary given The situations below do not fit the Return and Refund Policy different condition. -
Page 28: Contact And Support
20cm must be maintained between the user’s body and the device, including the antenna. Use only the supplied Feedback: Please send feedback via the SwitchBot App in or an approved antenna. the left side menu with the details of the issue. - Page 29 KCC Warning equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are 인증받은자의 상호: Woan Technology (Shenzhen) Co., Ltd. designed to provide reasonable protection against harmful interference in 제품명/모델명: 특정소출력...
