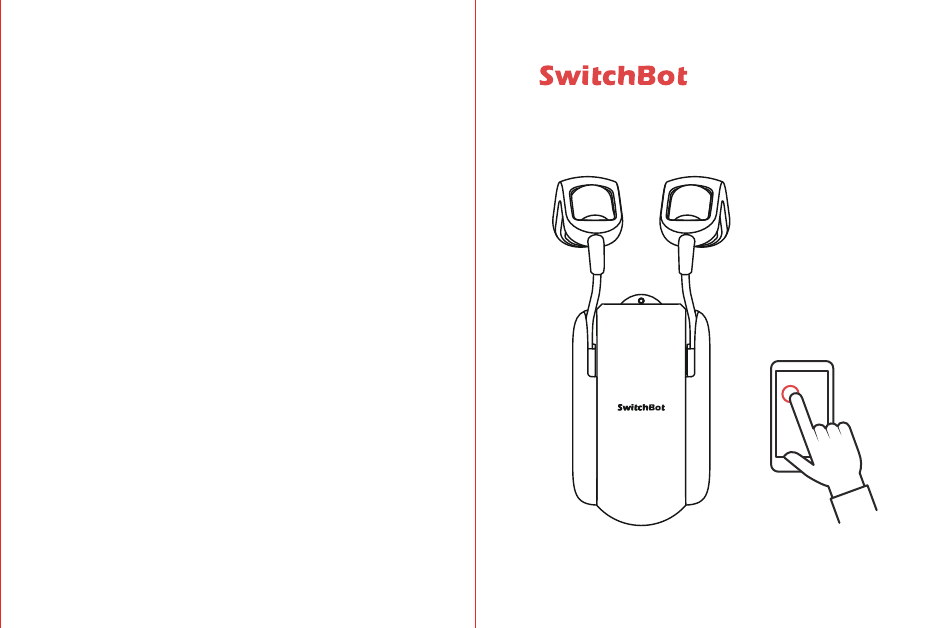

- Page 1 Curtain Rod 2 User Manual www.switch-bot.com ※ Please read this user manual carefully before using V4.4-2112 the device.
-
Page 2: Table Of Contents
Contents 1. Package Contents ------------------------------------------------ 02 2. Name of Parts ---------------------------------------------------- 03 3. Preparation ------------------------------------------------------- 04 4. Installation -------------------------------------------------------- 06 5. Control -------------------------------------------------------------- 23 6. Settings ------------------------------------------------------------- 26 7. Charging, Firmware and Factory Reset ----------------- 27 8. Specifications ---------------------------------------------------- 29 9. -
Page 3: Package Contents
Package Contents Name of Parts Hook Arm (Rod 2) Main Body Hook Pair (Rod 2) Type-C Cable Motor Hook Button Reset Button Type-C Charging Port Hook Indicator Light & Light Sensor Beads Fixer (beads installed) Clip... -
Page 4: Preparation
(Optional) If you intend to use Cloud Services, you need • to set up a SwitchBot Hub Mini (sold separately) and connect your phone to the internet. If SwitchBot Curtain Rod 2 does not work on your curtain track, please contact: support@wondertechlabs.com iOS 11.0+... -
Page 5: Installation
Step 1: Add SwitchBot Curtain in the App Stretchable Hook Arm Create a SwitchBot account or sign in from the app's profile page. On the Home page, tap the top right + sign, select the Curtain logo and follow the instructions... - Page 6 ① Close your curtain and remove the first hook from it. you will hear a click when it is firmly installed. ④ Finish by adjusting the position of the SwitchBot Curtain to keep it perpendicular to the ground, make sure the logo ②...
- Page 7 ① Install SwitchBot Curtain at the back of your curtain. body, you will hear a click when it is firmly installed. ④ Adjust the position of the SwitchBot Curtain to keep it ② Pull the detached Hook and attach it between the first perpendicular to the ground, make sure the logo faces and second grommet.
- Page 8 (with beads installed in it), make Install the clips provided according to the pictures below sure that you clip it on the grommet firmly. Finish by before you install SwitchBot Curtain. cutting the remaining beads or put it behind your curtain. Open Close your curtain, attach a clip on the first tab.
- Page 9 ① Install SwitchBot Curtain at the back of your curtain. Attach the remaining clips on other tabs as shown on the picture. The opposite way First tab Beware that all other clips should be attached the opposite ② Pull the detached Hook and attach it between the first way against the first clip, make sure all the clips are sitting and second tab onto your curtain rod.
- Page 10 firmly installed. before you install SwitchBot Curtain. Open ④ Finish by adjusting the position of the SwitchBot Curtain Close your curtain, attach a clip on the first tab. to keep it perpendicular to the ground, make sure the logo faces indoor.
- Page 11 ① Install SwitchBot Curtain at the back of your curtain. Attach the remaining clips on other tabs as shown on the picture. The opposite way First tab Beware that all other clips should be attached the opposite ② Pull the detached Hook and attach it between the first way against the first clip, make sure all the clips are sitting on the top of the rod and are aligned with each other.
- Page 12 firmly installed. If you are using a double side curtain, we recommend you to use 2 SwitchBot Curtains to open it from the middle. ④ Finish by adjusting the position of the SwitchBot Curtain to keep it perpendicular to the ground, make sure the logo faces indoor.
-
Page 13: Control
Settings page anytime. OTA firmware update is also available for better user experience. Note: You can group 2 SwitchBot Curtains and control them if you choose to open from the middle. Before you calibrate, please make sure that their Touch & Go positions are the same as stated on the app's picture. - Page 14 Link third-party services to your SwitchBot account • Control SwitchBot Curtain using a SwitchBot Remote. There are two buttons on SwitchBot Remote and you can set an Alexa, close the curtain. action for each of them from the app, for example, fully open/fully close.
-
Page 15: Settings
25℃. Battery life may vary given different the countdown time, percentage of opening or closing, conditions. and Motion Mode. 3. When you wish to charge SwitchBot Curtain with Solar Schedule Panel, illuminance level 6 is required. You can set up 5 Schedules on board, or unlimited Schedules with a SwitchBot Hub. -
Page 16: Specifications
(from controlled experiments in our lab) on both SwitchBot Curtains. Max Runway: 3 m (9.8 ft) Schedule: Up to 5, or unlimited with a SwitchBot Hub Mini Caution: Voice Control (SwitchBot Hub Required): Amazon Alexa,... -
Page 17: Return And Refund Policy
This product has a one-year warranty which begins from the date of purchase. The situations below do not fit the 3. SwitchBot Hub Plus/Mini is sold separately. Return and Refund Policy. Note: Use under regular temperature only. -
Page 18: Contact And Support
20 cm must be the Profile > Feedback page in the SwitchBot app. maintained between the user’s body and this device, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. - Page 19 FCC Warning KCC Warning 인증받은자의 상호: Woan Technology (Shenzhen) Co., Ltd. This device complies with Part 15 of the FCC Rules. Operation is subject to 제품명/모델명: 특정소출력 무선기기(무선데이터통신시스템용 무선기기) / W������� the following two conditions: 제조자 및 제조국가: Woan Technology (Shenzhen) Co., Ltd. /China (1) This device may not cause harmful interference.
