Summary of Contents for SwitchBot W0701600

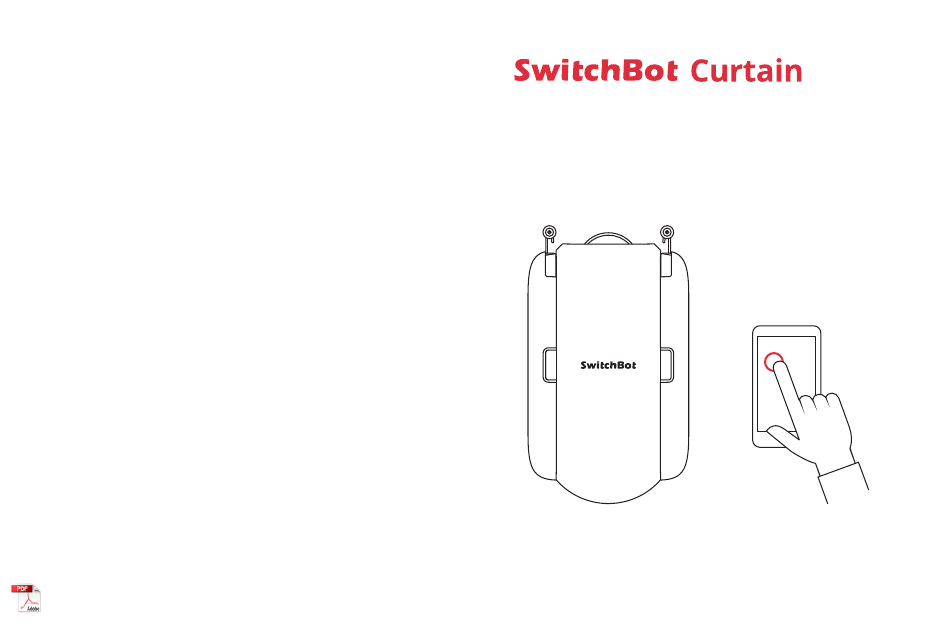

- Page 1 User Manual (U Rail) www.switch-bot.com...
-
Page 2: Table Of Contents
Contents 1. In the Box 2. Device Instruction 3. Preparation 4. Installation 5. Control 6. Settings 7. Charging, Firmware and Factory Reset 8. Specification 9. Return and Refund Policy 10. Contact and Support Want to see how it’s done? Go to support.switch-bot.com installation videos and additional tips. -
Page 3: In The Box

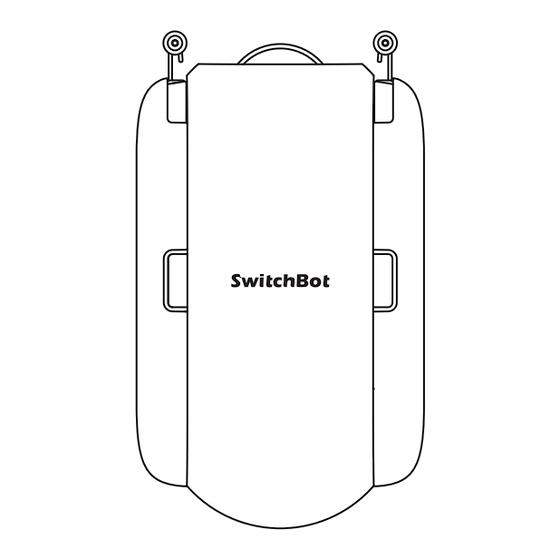

In the Box Device Instruction Motor Hook Wheel Main Body Hook Pair* (U Rail) Reset Button Hook Clip Type-C Charging Port Hook Clip Type-C Cable Indicator Light & Light Sensor Hook Wheel Hook Wheel Attachment *One Hook is attached to the Main Body upon delivery. -
Page 4: Preparation
Charge Curtain for about 4 hours • (Optional) If you intend to use the Cloud Service feature, you need to set a SwitchBot Hub Mini (sold separately) up and connect your phone to the internet Step 2: Install on Your Curtain Track... - Page 5 1. Insert the separate Hook into the curtain rail and rotate 2. Replace the Hook Wheels. it by 90º. Detach the existing Hook Wheel from a Hook. - If the Hook cannot fit in or you cannot rotate the Hook inside the rail, you need to replace with a smaller set of Hook Wheels.
- Page 6 Method 1 Installation for Common Models simultaneously, rotate them by 90°, and instantly attach Close your curtain and then detach the end curtain the separate Hook back to the Main Body. The SwitchBot hook from the rail. LOGO should face your room.
- Page 7 Put the curtain back in place so the Curtain is hidden. Method 2 Installation for Specific Models If you have troubles with Method 1 or you know the model of the curtain rail in your home, please visit the following link on a web browser to find which set of Hook Wheels to use and how to install, https://support.switch-bot.com/hc/en-us/articles/...
-
Page 8: Control
Install with the Clip (Optional) Control If you use double side curtain, you need two SwitchBot Curtains to open it from the middle. Alternatively, you can use the auxiliary Clip we provide to turn it into a single side Lots of convenient ways to control, at your will. - Page 9 Even with SwitchBot Curtain, you‘d probably still instinctively draw the curtains by hand sometimes. When it senses you drawing the curtain by more than 5 cm*, the SwitchBot Curtain will kick in and do the work for you. Voice Control and Home Automation* For double side curtain, drawing on one side of curtain will Smart living is powered by your voice commands.
- Page 10 Enable Cloud Service in Curtain's Settings page • Link third-party services to your SwitchBot account • You can set up SwitchBot Scene for home automation within the SwitchBot eco-system when you turn on the Alexa, close the curtain. Cloud Service within the Settings. There are unlimited possibilities.
-
Page 11: Settings
Control with SwitchBot Remote Settings (Sold Separately) You can control Curtain using a SwitchBot Remote. There Navigate to Curtain's detail page and settings page are two buttons on Remote and you can set an action for for a variety of features such as Light Sensing (Beta), each of them from the app. -
Page 12: Charging, Firmware And Factory Reset
Schedule Charging, Firmware and Factory Reset You can set up 5 Schedules on board, or unlimited Schedules with a Hub. You can set the day, time, percentage of opening or closing, and Motion Mode. Charging It takes about 10 hours to fully charge the battery and Motion Mode the battery lasts 8 months after a full charge... -
Page 13: Specification
Long press the button for 15 seconds until the LED light lights up. Then release the button. If you are using double side curtain, you will need to redo the calibration on both Model Number: W0701600 Curtains. Color: White / Black... -
Page 14: Return And Refund Policy
1. Battery life is tested under condition of runway of 3 meters, Return and Refund Policy loaded with 8 kg of curtain, opened and closed twice day, 25℃. Battery life may vary given different condition. 2. Solar Panel is sold separately. This product has one-year warranty (start from the 3. -
Page 15: Contact And Support
Use only the supplied or an approved antenna. the Profile > Feedback page in the SwitchBot app. This device in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. All essential radio test suites have been carried out. - Page 16 제조년월: 2020.06 the instructions, may cause harmful interference to radio communications. 인증번호: R-R-Woa-W0701600 However, there is no guarantee that interference will not occur in a 이 장치는 보안성이 없으므로 통신보안에 위배되는 사항의 통신을 금지하며 운용...
