Drolet DB03182 Owner's Manual
Hide thumbs Also See for DB03182:

Advertisement

Quick Links

Wood Stove
Owner's Manual
Part 2 of 2

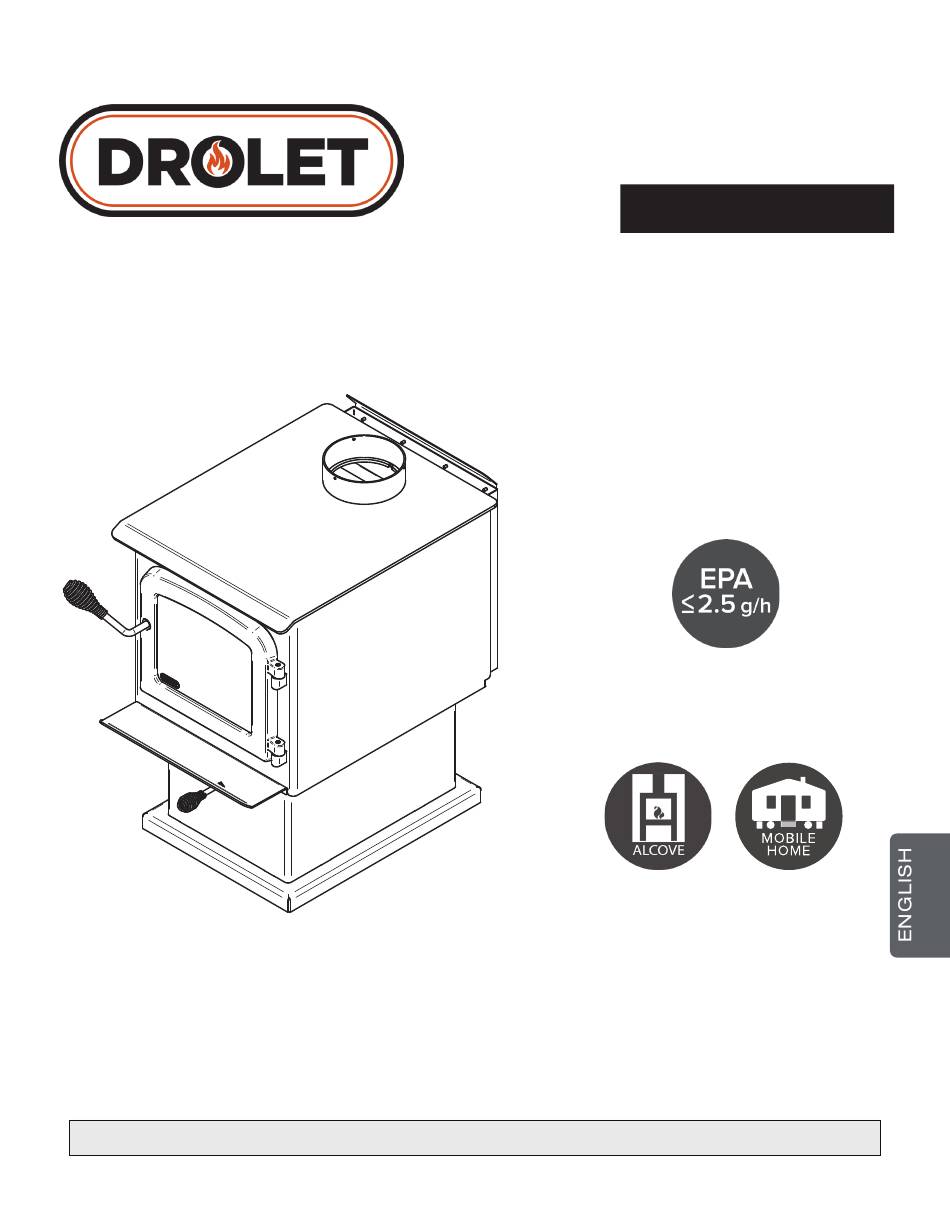

INSTALLATION AND
ESCAPE 1200
OPERATION REQUIREMENTS
(DB03182 model)
US Environmental Protection Agency
phase II certified wood stove compliant
with 2020 cord wood standard
Safety tested according to ULC S627,
UL 1482 and UL 737 standards by an
accredited laboratory.
MOBILE
HOME
CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION REQUIREMENTS
IN LOCAL AREA.
READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS WOOD STOVE. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.
READ AND KEEP THIS MANUAL FOR REFERENCE
46242_IA
Printed in Canada
2022-09-07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DB03182 and is the answer not in the manual?

Questions and answers

Summary of Contents for Drolet DB03182

  • Page 1 Owner's Manual Part 2 of 2 INSTALLATION AND ESCAPE 1200 OPERATION REQUIREMENTS (DB03182 model) US Environmental Protection Agency phase II certified wood stove compliant with 2020 cord wood standard Safety tested according to ULC S627, UL 1482 and UL 737 standards by an accredited laboratory.
  • Page 2: Phone Number

    If it can not be provided, the warranty period will be determined by the date of manufacture of the product. It is also highly recommended to register the warranty online at https://www.drolet.ca/en/warranty/warranty-registration/ Registering the warranty will help to quickly find the information needed on the unit.
  • Page 3: Table Of Contents

    7.1 Replacement ........................29 7.2 Gasket ..........................30 7.3 Door ..........................30 7.3.1 Adjustment ......................30 7.3.2 Door Alignment ......................31 7.3.3 Gasket ........................32 8. Exploded Diagram and Parts List ..................33 DROLET LIMITED LIFETIME WARRANTY...................36 Installation and Operation Manual - Escape 1200 Page 3...
  • Page 4: Certification Plate

    1. CERTIFICATION PLATE Page 4 Installation and Operation Manual - Escape 1200...
  • Page 5 Installation and Operation Manual - Escape 1200 Page 5...
  • Page 6: General Information

    2. General Information Performances Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output. Model Escape 1200 (DB03182) Combustion type Non-catalytic Fuel Type Dry Cordwood Recommended heating area (sq. ft.
  • Page 7: Specifications

    Specifications Maximum log length 17 in (432 mm) north-south Flue outlet diameter 6 in (150 mm) Recommended connector pipe diameter 6 in (150 mm) Type of chimney ULC-S629, UL 103 HT (2100 °F) Minimum chimney height 12 feet Baffle material Vermiculite Approved for alcove installation Approved for mobile home installation...
  • Page 8: Dimensions

    Dimensions 2.3.1 Stove Dimensions 18 1/2" 470mm 9 1/4" 235mm 6" 153mm Figure 1: Top View 28 7/8" 732mm 22 3/4" 578mm 8 1/2" 216mm 10 1/4" 260mm 20 5/8" 523mm 15 3/4" 400mm Figure 2: Front View Figure 3: Side View Page 8 Installation and Operation Manual - Escape 1200...
  • Page 9: Combustion Chamber Dimensions

    2.3.2 Combustion Chamber Dimensions 7 5/8" 195mm 12" 305mm Figure 4: Door Opening 1/4" 3/16" 11 3/4" 298mm 14 1/4" 19 1/8" 360mm 484mm Figure 5: Front View - Combustion Chamber Figure 6: Side View - Combustion Chamber Installation and Operation Manual - Escape 1200 Page 9...
  • Page 10: Epa Loading

    EPA loading The charging methods shown below are those that were used during emissions certification. 2.4.1 Air control The air control is located underneath the ash shelf. To open the air control, push the air control handle completely to the left (High). This will increase the burn rate.
  • Page 11: Clearances To Combustible Material

    3. Clearances to Combustible Material The clearances shown in this section have been determined by tests according to procedures set out in safety standards ULC S627 (Canada), UL 1482 (U.S.A.) and UL 737 (U.S.A.). When the stove is installed so that its surfaces are at or beyond the minimum clearances specified, combustible surfaces will not overheat under normal and even abnormal operating conditions.
  • Page 12 48" Flush 48" 36" 122 cm 92 cm Figure 7: Clearances - Top Figure 8: Clearances - Corner 84" 213 cm Figure 9: Clearances - Side Page 12 Installation and Operation Manual - Escape 1200...
  • Page 13: With Heat Shield Ac02762

    3.1.1 With Heat Shield AC02762 To reduce the clearances of an appliance using a single wall pipe connector, the use of a heat shield certified with the single wall pipe connector to be used as close as 6" from combustible materials must be used.
  • Page 14: With Lowered Ceiling

    3.1.2 With Lowered Ceiling APPLIANCE CLEARANCES WITH SINGLE WALL PIPE CONNECTOR Canada 14" (356 mm) 14" (356 mm) 20" (508 mm) 20" (508 mm) 11" (279 mm) 11" (279 mm) 72" (1829 mm) 72" (1829 mm) APPLIANCE CLEARANCES WITH DOUBLE WALL PIPE CONNECTOR Canada 6"...
  • Page 15: With Heat Shield Ac02762 And Lowered Ceiling

    3.1.3 With Heat Shield AC02762 and Lowered Ceiling To reduce the clearances of an appliance using a single wall pipe connector, the use of a heat shield certified with the single wall pipe connector to be used as close as 6" from combustible materials must be used.
  • Page 16: Inside A Combustible Alcove

    3.1.4 Inside a Combustible Alcove See section 3.1 for single wall pipe installation. APPLIANCE CLEARANCES WITH DOUBLE WALL PIPE CONNECTOR Canada 6" (152 mm) 6" (152 mm) 20" (508 mm) 20" (508 mm) 48" (1219 mm) 36" (914 mm) 72" (1829 mm) 72"...
  • Page 17: Mobile Home With Heat Shield Ac02762

    3.1.6 Mobile Home With Heat Shield AC02762 It is strictly forbidden to install a unit with a single wall pipe in a mobile home. APPLIANCE CLEARANCES WITH DOUBLE DISTANCES FROM PIPE CONNECTOR WALL PIPE CONNECTOR WITH DOUBLE WALL PIPE CONNECTOR Canada Canada 3"...
  • Page 18: Floor Protection

    4. Floor Protection This stove is designed to prevent the floor from overheating. However, it must be placed on a non-flammable surface to protect the floor from hot embers that may fall during loading. The floor protection must be a continuous, non combustible material, such as steel with a minimum thickness of 0.015"...
  • Page 19: Reducing Wall And Ceiling Clearances Safely

    5. Reducing Wall and Ceiling Clearances Safely It is often desired to use as little space as possible when installing a wood stove. To do this, it is possible to reduce the clearances safely and install the stove closer to the walls by permanently installing a heat shield between the stove and the flammable material.
  • Page 20 Figure 13: Heat shield clearances Figure 14: Heat shield clearances Page 20 Installation and Operation Manual - Escape 1200...
  • Page 21 CLEARANCES MAY BE REDUCED BY THESE PERCENTAGES TYPE OF SHIELD SIDES AND REAR TOP (CEILING) CAN / CAN / USA (%) MIN. USA (%) MIN. Sheet metal, a minimum of 24 gauge (0.61 mm) in thickness , spaced out at least 1" (25 mm)* by non-combustible spacers 12"...
  • Page 22: Options Installation On Your Product

    6. OPTIONS INSTALLATION ON YOUR PRODUCT Optional Fresh Air Intake Kit Installation THE IMAGES SHOWN ARE INDICATIVE ONLY AND MAY DIFFER OF YOUR PRODUCT, BUT THE ASSEMBLY REMAINS THE SAME. This mobile home approved stove requires the installation of a fresh air intake kit (A) and an insulated fresh air intake pipe (HVAC type, must meet ULC S110 or UL 181 class 0 or class 1) (B), sold separately.
  • Page 23: Optional Fire Screen Installation

    Optional Fire Screen Installation THE IMAGES SHOWN ARE INDICATIVE ONLY AND MAY DIFFER OF YOUR PRODUCT, BUT THE ASSEMBLY REMAINS THE SAME. In the United States or in provinces with a particulate emission limit (eg US EPA), the use of wood stoves with open door with and fire screen is prohibited.
  • Page 24: Optional Blower And Thermodisc Installation

    Optional Blower And Thermodisc Installation THE IMAGES SHOWN ARE INDICATIVE ONLY AND MAY DIFFER OF YOUR PRODUCT, BUT THE ASSEMBLY REMAINS THE SAME. A blower and a thermodisc, sold separately, can be installed on the stove. The installation of the blower is identical for a stove on legs or pedestal.
  • Page 25: Air Tubes And Baffle Installation

    Air Tubes And Baffle Installation Starting with the rear tube, lean and insert the right end of the secondary air tube into the rear right channel hole. Then lift and insert the left end of the tube into the rear left channel. Align the notch in the left end of the tube with the key of the left air channel hole.
  • Page 26 Note that secondary air tubes (B) can be replaced without removing the baffle board (A) and that all tube are not necessarely identical (look at the part number on the tube). Page 26 Installation and Operation Manual - Escape 1200...
  • Page 27: Mobile Home Installation

    Mobile Home Installation THE IMAGES SHOWN ARE INDICATIVE ONLY AND MAY DIFFER OF YOUR PRODUCT, BUT THE ASSEMBLY REMAINS THE SAME. Screw the base on the floor with the proper hardware (O). Installation and Operation Manual - Escape 1200 Page 27...
  • Page 28: Maintenance/Parts Replacement

    7. Maintenance/Parts Replacement Do not clean the glass when the stove is hot. Do not abuse the glass door by striking or slamming shut. Do not use the stove if the glass is broken. Replacement The glass used is a ceramic glass, 5/32" (4 mm) thick, tested to reach temperatures up to 1400º F.
  • Page 29: Gasket

    Gasket The glass gasket is flat, adhesive-backed, woven fibreglass. The gasket must be centred on the edge of the glass. Follow the steps of the previous section to remove the glass. Remove the old gasket and clean the glass thoroughly. Peel back a section of the paper covering the adhesive and place the gasket on a table with the adhesive side up.
  • Page 30: Door Alignment

    7.3.2 Door Alignment Door alignment should be checked before lighting the wood stove for the first time, as it may not be properly aligned. To align, open the door and loosen the pressures screws located on the lower and upper hinges of the door using a 3/32”...
  • Page 31: Gasket

    7.3.3 Gasket It is important to replace the gasket with another having the same diameter and density to maintain a good seal. Remove the door and place it face-down on something soft like a cushion of rags or a piece of carpet.
  • Page 32: Exploded Diagram And Parts List

    8. Exploded Diagram and Parts List Page 32 Installation and Operation Manual - Escape 1200...
  • Page 33 IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your stove, please provide the model number and serial number. We reserve the right to change parts due to technology upgrade or availability. Contact an authorized dealer to obtain one of these parts.
  • Page 34 Item Description AC02055 QUICK CONNECT THERMODISC 44028 CERAMIC THERMODISC F110-20F AC02050 BLOWER ASSEMBLY WITH VARIABLE SPEED CONTROL (UP TO 100 CFM) 44085 RHEOSTAT KNOB 44087 RHEOSTAT NUT 44080 RHEOSTAT WITHOUT NUT (MODEL KBMS-13BV) 44073 CROSSFLOW BLOWER 115V-60Hz-39W 100 CFM 60013 POWER CORD 96"...
  • Page 35 Installation and Operation Manual - Escape 1200 Page 35...
  • Page 36: Drolet Limited Lifetime Warranty

    Shall your unit or a component be defective, contact immediately your DROLET dealer. To accelerate processing of your warranty claim, make sure to have on hand the following information when calling: •...
  • Page 38 Resale is strictly prohibited. The manufacturer may update St-Augustin-de-Desmaures (Québec) Canada this document from time to time and cannot be responsible G3A 2H3 for problems, injuries, or damages arising out of the use 1-877-356-6663 of information contained in any document obtained from https://www.drolet.ca/en/ unauthorized sources. tech@sbi-international.com...
