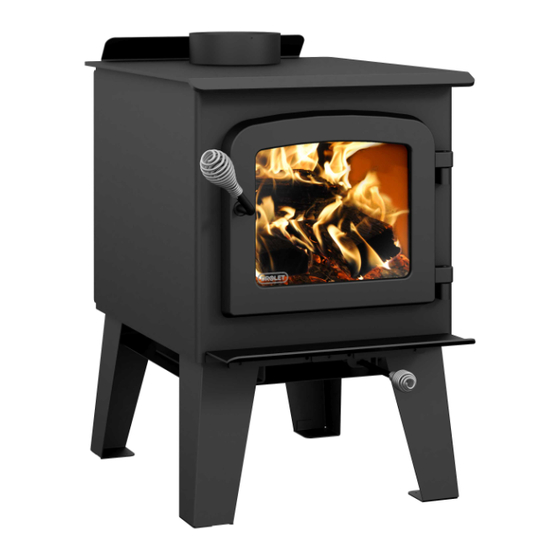

FOX
(DB03186 model)
SPARK II
(DB03401 model)
CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION REQUIREMENTS
IN LOCAL AREA.
READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS WOOD STOVE. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.
READ AND KEEP THIS MANUAL FOR REFERENCE
Printed in Canada
Wood Stove
Owner's Manual
Part 2 of 2
INSTALLATION AND
OPERATION REQUIREMENTS
US Environmental Protection Agency
phase II certified wood stove compliant
with 2020 cord wood standard
Safety tested according to ULC S627,
UL 1482 and UL 737 standards by an
accredited laboratory.
46259_IA
2022-09-07
Advertisement
Table of Contents
Related Manuals for Drolet FOX
Summary of Contents for Drolet FOX
- Page 1 Wood Stove Owner's Manual Part 2 of 2 INSTALLATION AND OPERATION REQUIREMENTS (DB03186 model) SPARK II (DB03401 model) US Environmental Protection Agency phase II certified wood stove compliant with 2020 cord wood standard Safety tested according to ULC S627, UL 1482 and UL 737 standards by an accredited laboratory.
- Page 2 If it can not be provided, the warranty period will be determined by the date of manufacture of the product. It is also highly recommended to register the warranty online at https://www.drolet.ca/en/warranty/warranty-registration/ Registering the warranty will help to quickly find the information needed on the unit.
-
Page 3: Table Of Contents
7.2 Gasket ..........................33 7.3 Door ..........................33 7.3.1 Adjustment ......................33 7.3.2 Door Alignment ......................34 7.3.3 Gasket ........................35 8. Exploded Diagram and Parts List ..................36 Drolet Limited Lifetime Warranty ....................39 Installation and Operation Manual - Fox et Spark II Page 3... -
Page 4: Certification Plate
1. CERTIFICATION PLATE Page 4 Installation and Operation Manual - Fox et Spark II... - Page 5 Installation and Operation Manual - Fox et Spark II Page 5...
-
Page 6: General Information
Tested and certified in compliance with CFR 40 part 60, subpart AAA, section 60.534(a)(1(ii) and ASTM E3053-17 based on the ALT-125 sent by EPA on February 28 , 2018. Carbon monoxide. Page 6 Installation and Operation Manual - Fox et Spark II... -
Page 7: Specifications
Tested and certified in compliance with CFR 40 part 60, subpart AAA, section 60.534(a)(1(ii) and ASTM E3053-17 based on the ALT-125 sent by EPA on February 28 , 2018. Installation and Operation Manual - Fox et Spark II Page 7... -
Page 8: Dimensions
Figure 1: Top View 28 7/8" 732mm 22 3/4" 578mm 8 1/2" 216mm 10 1/4" 260mm 21" 532mm 17 7/8" 454mm Figure 2: Front View Figure 3: Side View Page 8 Installation and Operation Manual - Fox et Spark II... -
Page 9: Combustion Chamber Dimensions
Figure 4: Door Opening 1/4" 3/16" 11 3/4" 298mm 14 1/4" 19 1/8" 360mm 484mm Figure 5: Front View - Combustion Chamber Figure 6: Side View - Combustion Chamber Installation and Operation Manual - Fox et Spark II Page 9... -
Page 10: Epa Loading
Leave to burn with the primary air control open for approximately 10 minutes and then close the primary air control completely for the low burn rate and halfway for the medium burn rate. Page 10 Installation and Operation Manual - Fox et Spark II... -
Page 11: Clearances To Combustible Material
13 ½" (343 mm) The pipe distances listed in this table refer to the distances obtained when the stove is installed in accordance with the appliance clearances above mentioned. Installation and Operation Manual - Fox et Spark II Page 11... - Page 12 48" Flush 48" 36" 122 cm 92 cm Figure 7: Clearances - Top Figure 8: Clearances - Corner 84" 213 cm Figure 9: Clearances - Side Page 12 Installation and Operation Manual - Fox et Spark II...
-
Page 13: With Heat Shield Ac02762
The pipe distances listed in this table refer to the distances obtained when the stove is installed in accordance with the appliance clearances above mentioned. Installation and Operation Manual - Fox et Spark II Page 13... -
Page 14: With Lowered Ceiling
14 ½" (368 mm) The pipe distances listed in this table refer to the distances obtained when the stove is installed in accordance with the appliance clearances above mentioned. Page 14 Installation and Operation Manual - Fox et Spark II... -
Page 15: With Heat Shield Ac02762 And Lowered Ceiling
The pipe distances listed in this table refer to the distances obtained when the stove is installed in accordance with the appliance clearances above mentioned. Installation and Operation Manual - Fox et Spark II Page 15... -
Page 16: Inside A Combustible Alcove
16 ½" (419 mm) The pipe distances listed in this table refer to the distances obtained when the stove is installed in accordance with the appliance clearances above mentioned. Page 16 Installation and Operation Manual - Fox et Spark II... -
Page 17: Mobile Home With Heat Shield Ac02762
Les distances de tuyau listées dans ce tableau se réfèrent aux distances obtenues lorsque le poêle est installé en accord avec les dégagements de l’appareil mentionnés ci-dessus. Installation and Operation Manual - Fox et Spark II Page 17... -
Page 18: Floor Protection
The floor protection at the back of the stove is limited to the stove’s required clearance if such clearance is smaller than 8 inches (203 mm). Only required under the horizontal section (Ho) of the connector. Must exceed each side of the connector by at least 2 inches (51 mm). Page 18 Installation and Operation Manual - Fox et Spark II... -
Page 19: Reducing Wall And Ceiling Clearances Safely
G) Edge clearance for ceiling shields to side and back walls: 3" (75 mm) Shield extension beyond each side of the appliance: 18" (450 mm). Figure 11: Heat shield clearances Figure 12: Heat shield clearances Installation and Operation Manual - Fox et Spark II Page 19... - Page 20 Figure 13: Heat shield clearances Figure 14: Heat shield clearances Page 20 Installation and Operation Manual - Fox et Spark II...
- Page 21 Brick, with a minimum of 24 gauge (0.61 mm) sheet metal backing, spaced out at least 1" (25 mm)* by non-combustible spacers 12" (305 mm) * In Canada this space can be " (21 mm) Installation and Operation Manual - Fox et Spark II Page 21...
-
Page 22: Options Installation On Your Product
6. OPTIONS INSTALLATION ON YOUR PRODUCT Page 22 Installation and Operation Manual - Fox et Spark II... -
Page 23: Legs Installation
ASSEMBLY REMAINS THE SAME. Remove the door and the firebricks from the stove. Put the stove on its side. Unscrew and discard the metal plate (B) located under the fireplace. Installation and Operation Manual - Fox et Spark II Page 23... - Page 24 Put the stove on its side. Install the legs (A) on the stove and secure them with the washers (B) and nuts (C). Install the heat shield plate (D) under the stove and secure it with screws (E) and nuts (F) from the top only. Page 24 Installation and Operation Manual - Fox et Spark II...
- Page 25 Put back the firebricks, the ash plug and the door on the stove. (See step 1) The baffle and the bricks must be put back in the right place after the final positioning of the stove. Installation and Operation Manual - Fox et Spark II Page 25...
-
Page 26: Optional Fresh Air Intake Kit Installation
After installing the fresh air intake, before screwing the heat shield plate (D) under the stove, remove the metal rectangle cut in the heat shield plate by cutting the micro-joints with pliers. Page 26 Installation and Operation Manual - Fox et Spark II... -
Page 27: Optional Fire Screen Installation
Lift the fire screen upwards and push the bottom part towards the stove then let the fire screen rest on the bottom of the door opening. Warning: Never leave the stove unattended while in use with the fire screen. Installation and Operation Manual - Fox et Spark II Page 27... -
Page 28: Optional Blower And Thermodisc Installation
Ensure that the blower’s power cord is not in contact with any surface of the stove to prevent electrical shock or fire damage. Do not run the power cord beneath the stove. Page 28 Installation and Operation Manual - Fox et Spark II... -
Page 29: Air Tubes And Baffle Installation
Put the baffle in place. Repeat steps 1 and 2 for the three other tubes. To remove the tubes use the above steps in reverse order. Installation and Operation Manual - Fox et Spark II Page 29... - Page 30 Note that secondary air tubes (B) can be replaced without removing the baffle board (A) and that all tube are not necessarely identical (look at the part number on the tube). Page 30 Installation and Operation Manual - Fox et Spark II...
-
Page 31: Mobile Home Installation
Mobile Home Installation THE IMAGES SHOWN ARE INDICATIVE ONLY AND MAY DIFFER OF YOUR PRODUCT, BUT THE ASSEMBLY REMAINS THE SAME. Screw the legs in place with the proper hardware (A). Installation and Operation Manual - Fox et Spark II Page 31... -
Page 32: Maintenance/Parts Replacement
Reinstall the glass, being careful to centre the glass in the door and not to over-tightening the retaining screw. The two main causes of broken door glass are uneven placement in the door and over-tightening the retaining screws. Page 32 Installation and Operation Manual - Fox et Spark II... -
Page 33: Gasket
Turn the handle one counterclockwise turn to increase pressure. Reinstall the split pin with a small hammer. Figure 15: Removing the split pin Figure 16: Installing the split pin Installation and Operation Manual - Fox et Spark II Page 33... -
Page 34: Door Alignment
Using a flat screwdriver, turn the adjustable hinge rods in the direction shown to adjust the doors. Tighten all door hinge pressure screws when they are at the desired positions. Configurations 1-2-3-4-5-6, show in which direction these act on the adjustment of the door. Page 34 Installation and Operation Manual - Fox et Spark II... -
Page 35: Gasket
Tuck any loose fibers under the gasket and into the silicone. Close the door. Do not use the stove for 24 hours. Installation and Operation Manual - Fox et Spark II Page 35... -
Page 36: Exploded Diagram And Parts List
8. Exploded Diagram and Parts List 52 SPARK II / FOX SPARK II Page 36 Installation and Operation Manual - Fox et Spark II... - Page 37 AC06500 SILICONE AND 5/8" X 8' BLACK DOOR GASKET KIT AC01420 RIGID FIRESCREEN PL06728 PAINTED AIR CONTROL HANDLE 30129 METAL SCREW #10 X 1/2" PAN QUADREX ZINC "A" TYPE Installation and Operation Manual - Fox et Spark II Page 37...
- Page 38 BOTTOM HEAT SHIELD KIT 30141 LEG KIT HARDWARE BAG SE74358 FOX DOOR PLATE ASSEMBLY AC06810 SELF ADHESIVE BLACK GASKET KIT 1/8" X 3/8" X 6' SE74364 SPARK II GLASS AND MOLDING KIT Page 38 Installation and Operation Manual - Fox et Spark II...
-
Page 39: Drolet Limited Lifetime Warranty
Shall your unit or a component be defective, contact immediately your DROLET dealer. To accelerate processing of your warranty claim, make sure to have on hand the following information when calling: •... - Page 40 Resale is strictly prohibited. The manufacturer may update St-Augustin-de-Desmaures (Québec) Canada this document from time to time and cannot be responsible G3A 2H3 for problems, injuries, or damages arising out of the use 1-877-356-6663 of information contained in any document obtained from https://www.drolet.ca/en/ unauthorized sources. tech@sbi-international.com...
