Honeywell BARDIC Zircon Series Operating Instructions

End user operating instructions
Conventional Fire Panels
Zircon range

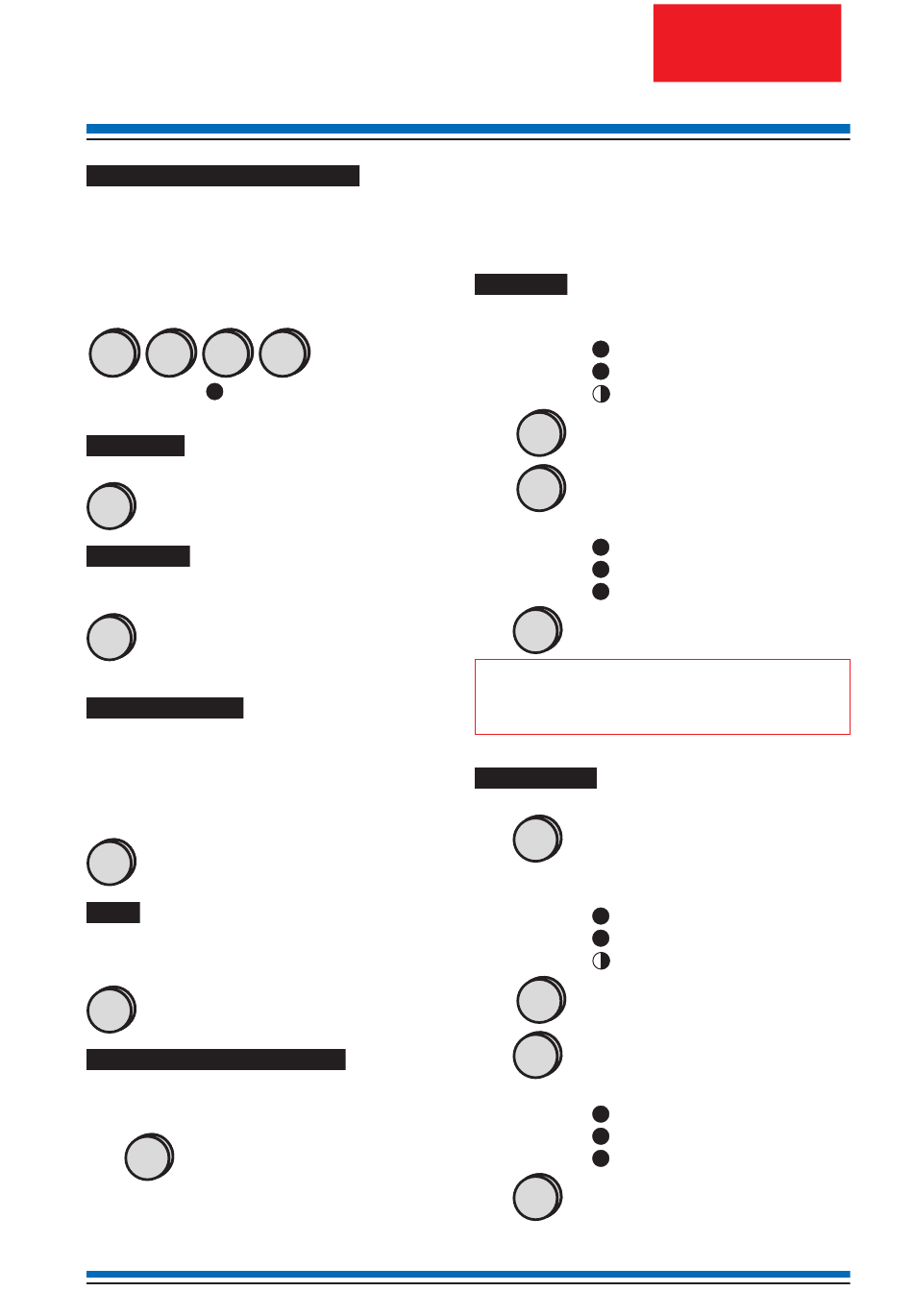

Accessing Supervisory Mode
Normally the panel is in Code Entry Mode which does not allow
the use of the control functions available in the panel.
To go into Supervisory Mode , enter the four digit security
password code detailed below.
The panel will revert back to Code Entry Mode if the Reset
button is pressed, or 20 seconds after the last button press.
Enter
4 4 1
Supervisory Mode
The following functions can all be used in Supervisory Mode:
Lamp Test
Hold down SELECT for a minimum of 2 seconds.
Select
(Release once test complete)
Mute Panel
To silence the panel's internal buzzer press MUTE PANEL.
Select and Deselect Mute Panel
Mute
The panel will continue to beep every 8 seconds until reset.
Sounders On/Off
If the panel is in alarm the sounder circuits may be silenced by
pressing this button. If the sounders are silent, either because
the panel is in alarm and the sounders have been silenced or if
there is no alarm, the sounders will be activated by pressing
this button.
Select and deselect Sounders
Sounders
On/Off
Reset
Will clear any non-latched devices and return the panel to
Code Entry Mode. If the cause of the activation is still present
the alarm will be Re-established within 10 seconds.
Reset
Test and Disablement Mode
The one man walk test and disablement of detection zones and
sounders enables the system to be checked for any faults that
the panel is unable to test.
Advance
Press for 2 seconds until you hear a
double beep.
61640620 issue 4_6/07 generic ops zircon
5
Test
One Man Test and Disablement of Detection Zones and
Sounders
Test Zone
Follow Test and Disablement Mode on front cover.
The following LEDs will illuminate
Test
Supervisory Mode
Zone (a flashing indication)
Select
Press to put zone in TEST
Advance
Press to move to next zone
If the zone is in TEST, the zone LED is constantly lit.
Test
Supervisory Mode
Zone
Reset
Press to accept settings
"
The Auxiliary Fault Output is disabled when
in test.
Disable Zone
Follow Test Disablement Mode on front cover
Advance
Press until Test LED goes out and the Disable LED
illuminates
The following LED's will illuminate
Disabled
Supervisory Mode
Zone (a flashing indication)
Select
Press to Disable zone
Advance
Press to move to next zone
If the zone is DISABLED the zone LED is constant.
Disabled
Supervisory Mode
Zone
Reset
Press to accept settings
BARDIC
by Honeywell
1
