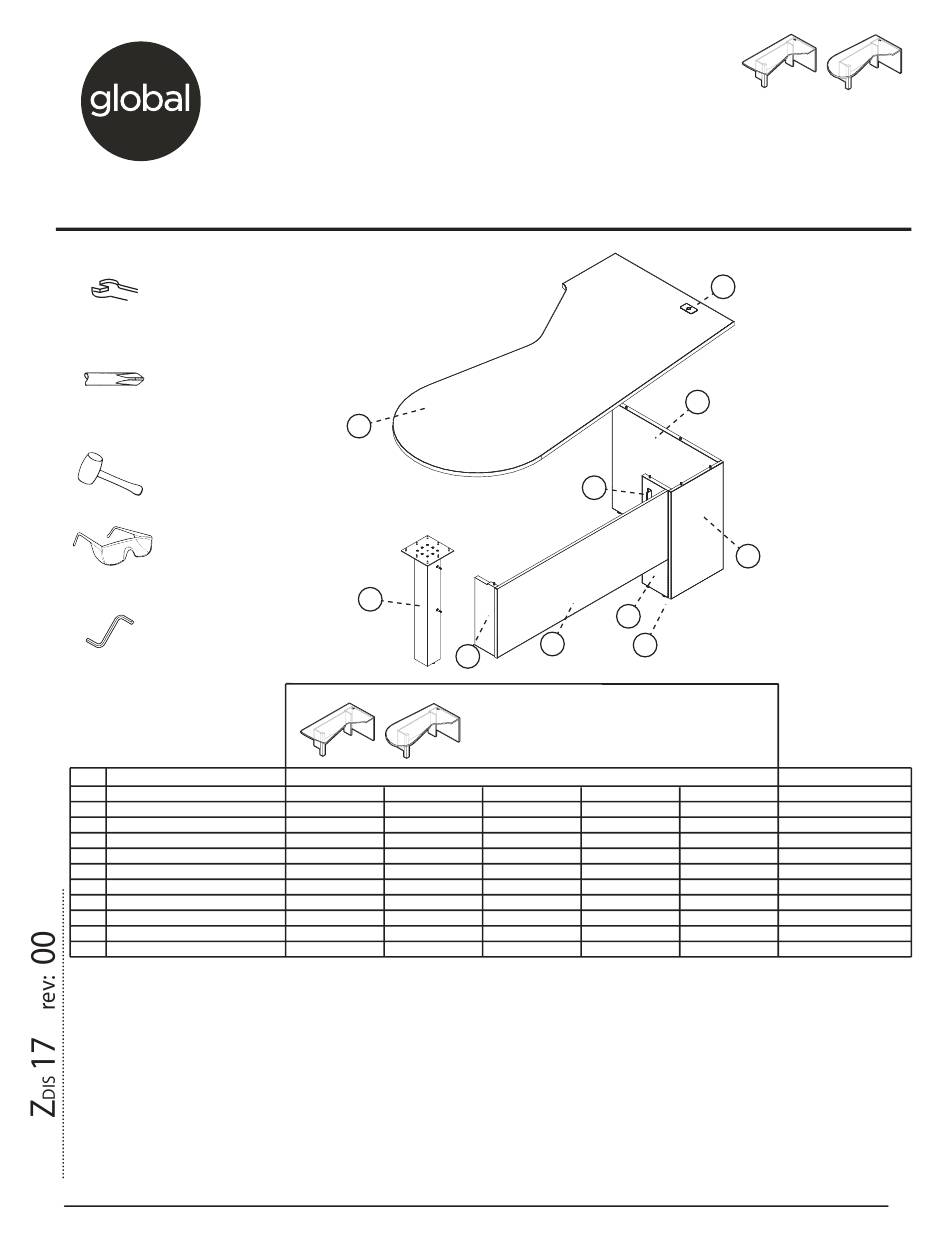

Global ZIRA Z4272EDF R Disassembly Instructions Manual

Extended corner island

Advertisement

Quick Links

ZIRA
Extended Corner Island (Faux Ped)
Disassembly Instructions
TOOLS REQUIRED
WRENCH
Size #16 or 5/8"
PHILLIPS
Screwdriver size #2
Rubber Mallet
Safety Glasses
ALLEN KEY
Size #5
ITEM DESCRIPTION
1
TOP
2
FAUX PED LARGE GABLE
3
FAUX PED SHORT GABLE
4
FAUX PED BACK
5
MODESTY PANEL
6
MODESTY SIDE
7
ALUMINIUM CLEAT / COVER
8
GROMMET
9
LEVELER
10
SCREWS/BOLTS
11
LEG
STEPS
A
Remove Aluminium Cleat Cover.
B
Unscrew and remove leveler. Unscrew and
remove Leg and aluminium cleat.
C
Untighten Blum Connectors.
D
Untighten Minifix Connectors in Modesty
panel.
NOTE: Any alterations to listed components will void the manufac turer 's warrant y. The manufac turer will not be responsible for any damage or bodily harm caused by alterations in accordance with national or local
elec trical codes and manufac turer 's specifications. In accordance with the manufac turer 's polic y of continual produc t improvement, the produc t presented in this document is subjec t to change without notice or obligation.
Printed in Canada
1
11
6
QUANTITIES
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
6
6
34
34
1
1
P lea se cont ac t Glob al Cus tome r Ca re at 90 5- 6 60 -5 10 1 for any q u est i on s o r co ncer ns.
E
Faux ped.
F
G
2
7
4
5
9
Untighten Blum Connectors and released
Untighten Blum Connectors from Faux ped.
Unscrew Blum and Minifix bolts.
ZDIS 17 Rev.00
Z4272...84EDF L/R
Z4272...84EPF L/R
Z3660...72EDF L/R
Z3660...72EPF L/R
8
3
MATERIAL
PARTICLEBOARD
PARTICLEBOARD
PARTICLEBOARD
PARTICLEBOARD
PARTICLEBOARD
PARTICLEBOARD
ALUMINIUM
PLASTIC
STEEL/PLASTIC
STEEL
STEEL
Pg 1 of 3
