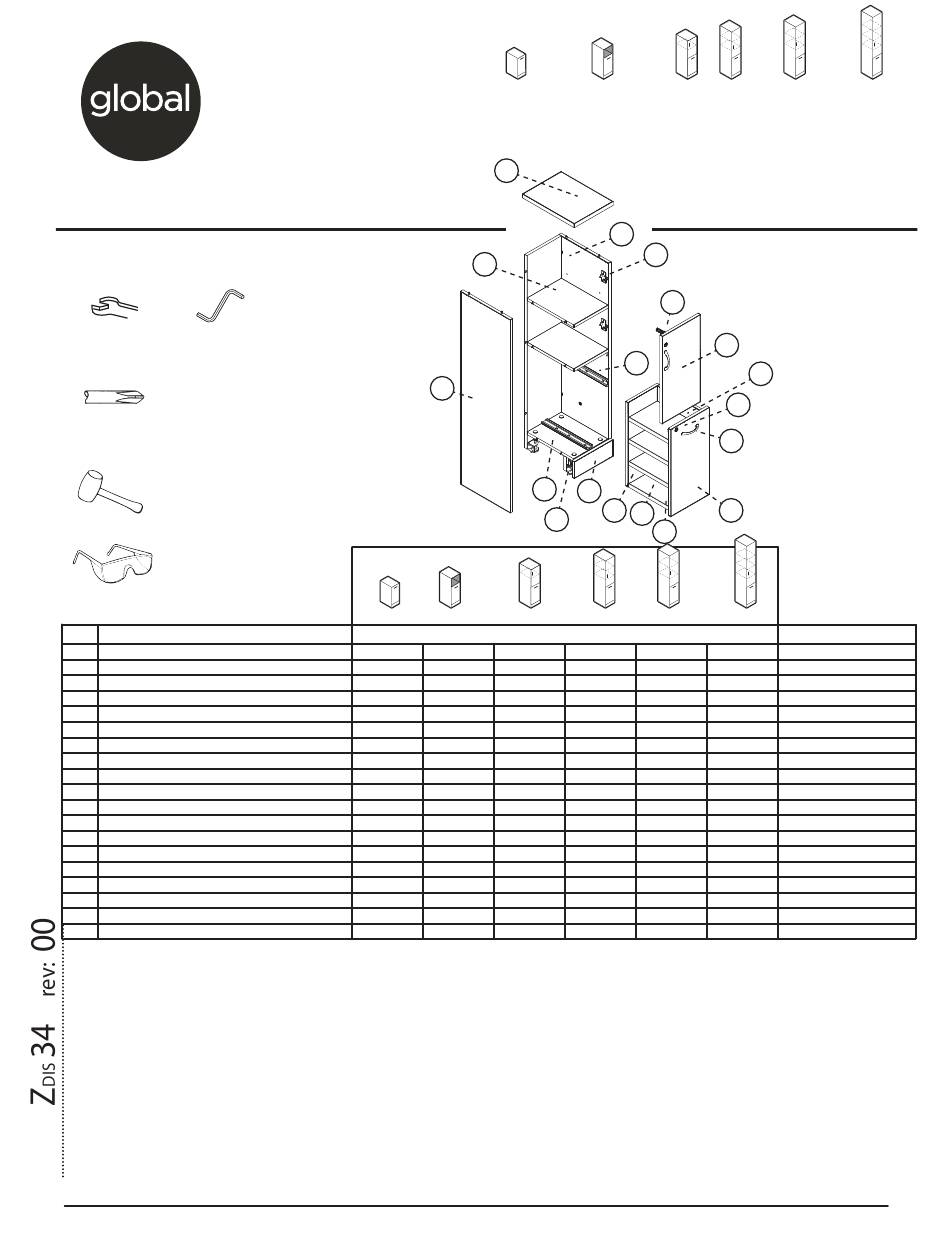

Global ZIRA Z12L2VDL/R Disassembly Instructions

ZIRA
Vertical Utility Drawer (29"H -84"H)
Disassembly Instructions
TOOLS REQUIRED
WRENCH ALLEN KEY
Size #16 or 5/8" Size #5
PHILLIPS
Screwdriver size #2
Rubber Mallet
Safety Glasses
ITEM DESCRIPTION
1 TOP
2 SIDE
3 BACK
4 BOTTOM
5 DRAWER LOCK MECHANISM
6 KICKBASE
7 CORNER BRACKET W/LEVELER
8 SCREWS/BOLTS
9 HANDLES
10 DRAWER FRONT
11 DRAWER - SHELF EDGE
12 DRAWER - SHELF
13 DRAWER - BACK
14 DRAWER - SIDE
15 DOOR
16 DOOR LOCK MECHANISM
17 HINGES
18 SLIDES (INNER)
19 SLIDES (BASE PLATE)
STEPS
A
Remove door by pressing on back of hinges and pulling
doors forward. Remove shelf.
B
Unscrew and remove hinges, handles and door lock
mechanism from doors.
C
Remove Drawer by Fully Extending and Disengaging
latch on each slide while pulling drawer out.
D
On Drawer boxes, unscrew and remove slide channels,
handles and door lock mechanism. Untighten Minifix and
NOTE: Any alterat ions to listed components will void the manufac turer 's warrant y. Th e manufac turer will not be responsible for a ny d a m a g e o r b o d i l y h a r m c a u s e d by a l te rat i o n s i n a cco rda n ce w i t h n at i o n a l o r l o c a l
e l e c t ric a l cod e s a n d m a nu fa c tu rer 's sp ec i fi cati on s. In accordance wi th t he manufa c tu re r 's po li c y of co nti nual pro d u c t im p rove me n t, t h e p ro d u c t p re s e nte d i n t h i s d o c u m e nt i s s u b j e c t to c h a n g e w i t h o u t n o t i ce o r
o b li g atio n.
Printed in Canada
29"ht
Z12L2VDL/R
Z12M2VDL/R
Z12S2VDL/R
1
3
2
4
7
29"ht 41"ht 52.5"ht
QUANTITIES
1 1 1
2 2 2
1 1 1
1 1 1
1 1 1
1 1 1
4 4 4
57 73 85
1 1 2
1 1 1
4 4 4
4 4 4
1 1 1
1 1 1
1
1
2
2 2 2
2 2 2
Unscrew and remove, Shelves , side and back.
E
Turn unit. Pull kickbase and unscrew kick base
connector.
F
Untighten Blum and Rafix Connectors. Unscrew
and remove corner brackets with leveler.
G
Unscrew Blum and Rafix Bolts. Unscrew and
remove glide channels.
41"ht 52.5"ht 65"ht
Z12L4VDNL/R Z12L5VDL/R
Z12L7VDL/R
Z12M4VDNL/R Z12M5VDL/R
Z12M7VDL/R
Z12S4VDNL/R Z12S5VDL/R
Z12S7VDL/R
2
17
16
15
18
5
9
6
13 10
12
11
65"ht 71.5"ht 84"ht
1 1 1
2 2 2
1 1 1
1 1 1
1 1 1
1 1 1
4 4 4
90 99 102
2 2 2
1 1 1
4 4 4
4 4 4
1 1 1
1 1 1
1 1 1
1 1 1
2 2 3
2 2 2
2 2 2
ZDIS 34 Rev.00
71.5"ht 84"ht
Z12L8VDL/R
Z12M8VDL/R
Z12S8VDL/R
14
P l e a s e conta c t G l o b a l
Cu stom er Care at
905-660-5101 for any
q u e st i on s or co ncern s.
MATERIAL
PARTICLEBOARD
PARTICLEBOARD
PARTICLEBOARD
PARTICLEBOARD
STEEL\PLASTIC
PARTICLEBOARD
STEEL
STEEL
ALUMINIUM
PARTICLEBOARD
PLASTIC
PARTICLEBOARD
PARTICLEBOARD
PARTICLEBOARD
PARTICLEBOARD
STEEL
STEEL
STEEL
STEEL
Pg 1 of 3
