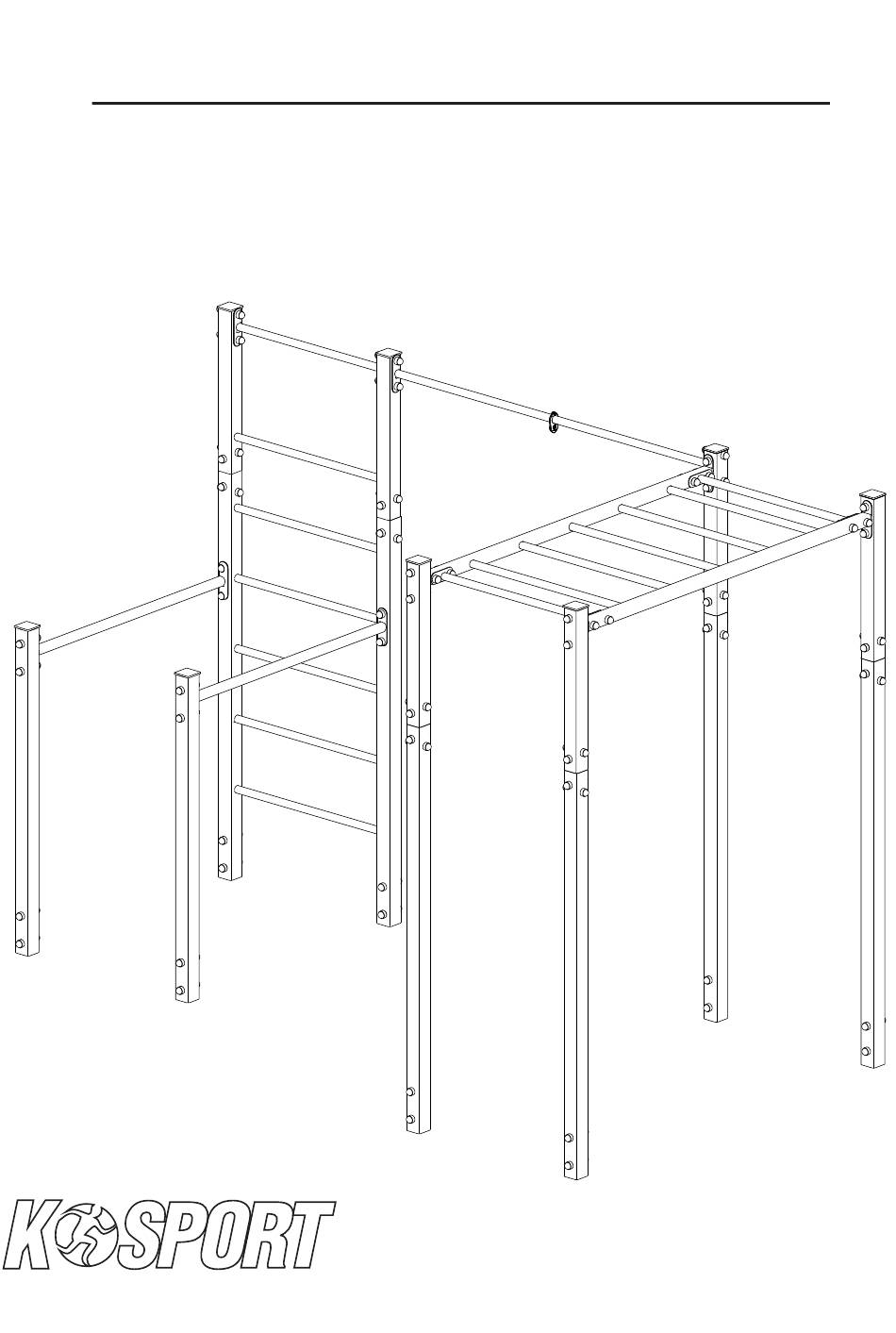

- Page 1 KSOZ006 ASSEM BLY I NS T R U CT IO N WWW.K-SPORT-DE.DE...
- Page 2 KSOZ006 1 x 1 2 x 6 3 x 2 4 x 11 600 x 50 x 50 250 x 45 x 45 1500 x 50 x 50 Ø 26,9 x 780 5 x 2 6 x 62 7 x 70...
- Page 3 KSOZ006 17mm find difficult to fit the pipe inside the opening, use a hammer shorten diameter of the pipe by 1 mm. 8 7 9...
- Page 4 KSOZ006...
- Page 5 KSOZ006 After the assembly of the upper part of the device, measure the distance between the profiles or place the construction on the gro- und and dig the hole (at least 60 cm deep). The anchors ( part number 1) should be pla-...
- Page 6 KSOZ006...
- Page 7 KSOZ006 To prevent movement of the clamp, place a piece of a rubber be- tween the rod and the clamp.
- Page 8 17. If the assembly of the device is not possible because of the technical errors (missing or missplaced holes, uneven parts), contact us on the given e-mail adress: info@k-sport-de.de . In the message include photos of defected parts.
