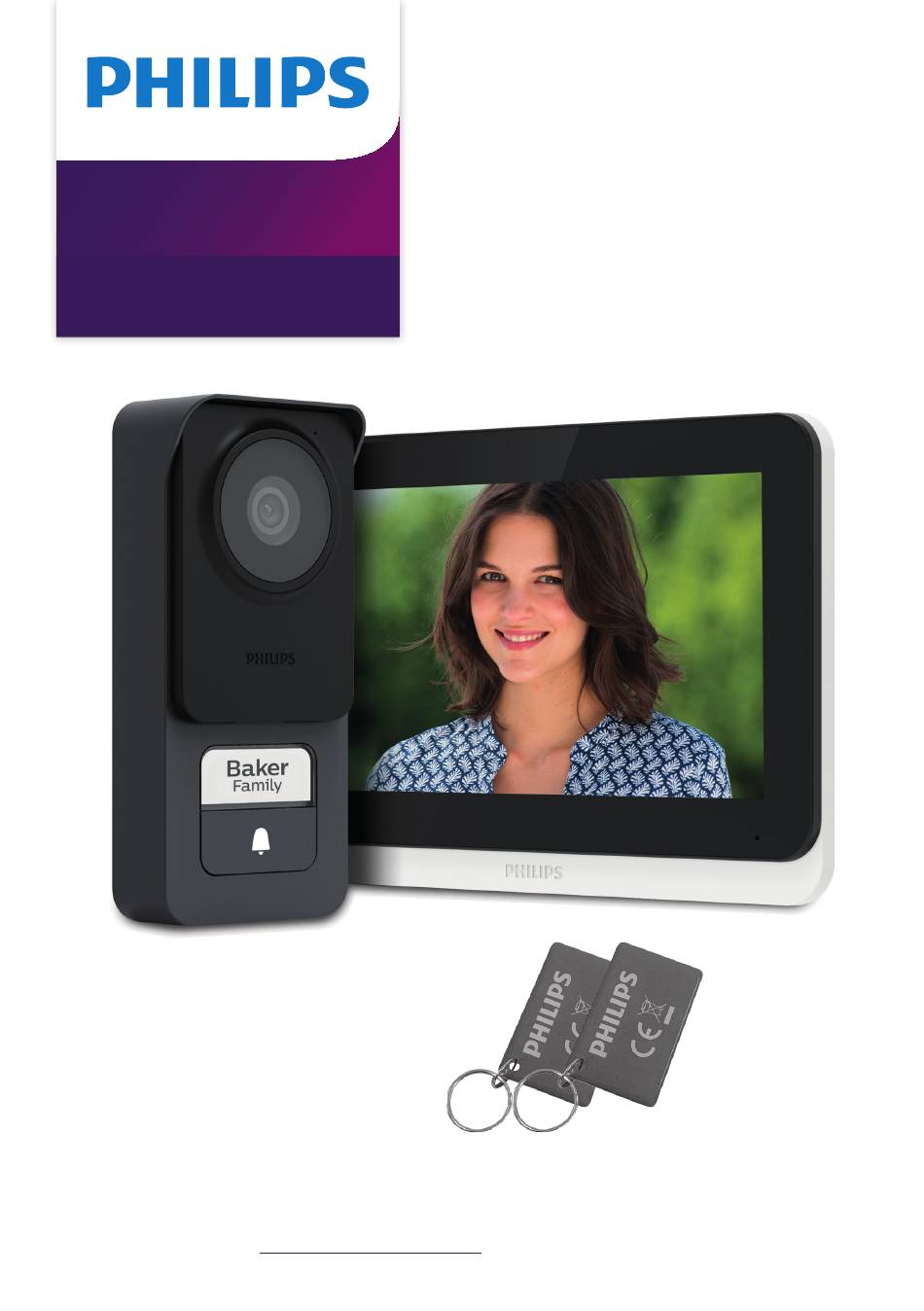

- Page 1 WelcomeEye Lite 2 Video Doorphone User Manual Register your product on www.philips.com/register...
- Page 2 WelcomeEye Lite 2 / V1...
- Page 3 Fig. 1 15 Vdc 100-240 V~ 50/60 Hz 1 Gate A Gate B 2 3 Lock A Lock B 4 5 Bus A Bus B 6 WelcomeEye Lite 2 / V1...
- Page 4 WelcomeEye Lite 2 / V1...
-
Page 5: Table Of Contents
Contents SAFETY INSTRUCTIONS ................p.2 KIT CONTENTS .................... p.2 OVERVIEW ....................p.3 DETAILED DESCRIPTION ................. p.3 PRODUCT INSTALLATION ............... p.6 5.1. Wiring 5.2. Installing the monitor 5.3. Installing the intercom panel MONITOR INTERFACE ................p.11 TECHNICAL SPECIFICATIONS ...............p.14 FAQ.......................p.15 TECHNICAL SUPPORT - WARRANTY ..........p.17 10 SAFETY MEASURES .................p.18 11 FCC/CE WARNING ...................p.19 12 DECLARATION OF CONFORMITY ............p.19... -
Page 6: Safety Instructions
1. SAFETY INSTRUCTIONS Important! • Please carefully read the user manual before installing or using this product. • If you are installing this product for someone else, remember to leave the manual or a copy of it with the end user. Warning: •... -
Page 7: Overview
3. OVERVIEW The Philips WelcomeEye Lite 2 videophone consists of an indoor touchscreen monitor and an outdoor unit with one call button and a microphone, loudspeaker and camera for viewing and communicating with the visitor who rings. The intercom panel also features a control output for controlling the opening of a gate motor drive and another powered output for controlling the opening of a side gate. - Page 8 Location of wall Wall bracket bracket retaining connection pins lugs Bus A and Bus B: Connections to the intercom panel GND and +15Vdc: Connections for the mains power supply supplied Intercom panel: Protective Microphone shield Brightness Lens sensor Loudspeaker Name holder RFID scan area Screw for locking Call button...
- Page 9 Important: The locking screw must not be removed. To remove the front of the intercom panel, unscrew the screw using the tool provided. The screw will go in instead of out when you unscrew it: this is normal. Do not force the screw once it has been retracted: risk of damage. Microphone Silicone protective cover for connection terminal...
-
Page 10: Product Installation
5. PRODUCT INSTALLATION Important notes and advice: - If you test your product before installing it, make sure you do not test it with the intercom panel and the monitor nearby or the videophone may emit a shrill noise (feedback). - Do not expose the camera lens to direct sunlight or a reflective surface. - Page 11 d. RFID badges RFID badges can be associated with the intercom panel using the monitor. Please refer to the corresponding section in the manual. RFID badges can also be removed from the monitor if lost. Once linked via the mobile application, RFID badges can be used to open the electric strike plate or gate motor drive connected to the intercom panel.
-
Page 12: Installing The Monitor
5.2. Installing the monitor 15 Vdc 100-240 V~ 50/60 Hz WelcomeEye Lite 2 / V1... -
Page 13: Installing The Intercom Panel
1- Position the wall bracket so that the screen of the monitor is approximately 1.60 m above the floor. 2- Mark the location of the holes by placing the bracket on the wall. Note: if you prefer, you can use the 2 holes in the centre of the bracket, which are designed to match a 68 mm wall recess-mount housing. - Page 14 OPTION OPTION 1 Gate A Gate B 2 1 Gate A Gate B 2 1 Gate A Gate B 2 3 Lock A Lock B 4 3 Lock A Lock B 4 3 Lock A Lock B 4 5 Bus A Bus B 6 5 Bus A Bus B 6...
-
Page 15: Monitor Interface
When screwed in, the screw comes out and locks the front panel. Do not force the screw, as this could damage the screw head. 14- You can now power on the system monitor. When the power is switched on, the Philips logo appears on the monitor. - Page 16 B. Settings Settings Image adjustments Here you can change the brightness, contrast and colour of the image. In this menu, the image of the intercom panel is displayed so that you can immediately see the effect of the settings on screen. Volume EN12 WelcomeEye Lite 2 / V1...
- Page 17 : sound volume on the monitor during discussion with visitors : Volume of chimes emitted by the monitor : Sound volume on the intercom panel during discussion with visitors : Chime assigned to intercom panel : Allows you to activate or deactivate the sound emitted by the monitor when you click on the screen RFID badges Here you can combine the two badges supplied, remove them or add extra badges up to a limit of...
-
Page 18: Technical Specifications
Reset Here you can reset your monitor. This deletes all personalised settings and all badges stored in the monitor. 7. TECHNICAL SPECIFICATIONS Monitor: - 2 wires - 7" touchscreen - Resolution: 1024 x 600 - Radio power emitted: 20 dBm maximum - Power supply: 100-240Vac / 15Vdc 1.5A mains adapter supplied - Current consumption: 500 mA max - Power consumption: 6 W max (0.5 W max on standby) - 6 melodies (85dB) -
Page 19: Faq
8. FAQ Failure Cause Solution Verify that the power supply is properly The monitor is not connected and turned on. receiving power. Check the polarity on the monitor or at the The monitor will not power supply output. turn on. Poor connection or Solve the connection problem. - Page 20 The electric strike plate or lock to be controlled must preferably be equipped with a mechanical memory. The strike plate Electric strike plate or Unsuitable strike plate current cannot exceed 1.1A. lock does not work or lock The strike plate or lock to be controlled must be fail-secure, not fail-safe: it must open when the power is on and close when the power is off.
-
Page 21: Technical Support - Warranty
Important : veuillez conserver précieusement cette carte de garantie, ainsi que votre preuve d’achat. Philips and the Philips shield emblem are registered trademarks of Koninklijke Philips N.V. and are used under licence. This product was manufactured and is sold by Avidsen SAS, the sole guarantor of the product. -
Page 22: Safety Precautions
10. SAFETY PRECAUTIONS Damage caused by failing to adhere to the manual nullifies the warranty. We will not accept liability for damage resulting from non-compliance! We will not accept liability for any harm to goods or people caused by improper handling or failure to adhere to safety instructions. -
Page 23: Declaration Of Conformity
Die Philips Warenzeichen sind eingetragene Warenzeichen der Koninklijke Philips N.V. Las marcas registradas de Philips son marcas registradas de Koninklijke Philips N.V. As marcas registadas da Philips são marcas registadas da Koninklijke Philips N.V. I marchi Philips sono marchi registrati di proprietà di Koninklijke Philips N.V. - Page 24 Philips and the Philips shield emblem are registered trademarks of Koninklijke Philips N.V. and are used under licence. This product was manufactured and is sold by Avidsen SAS, the sole guarantor of the product. EN20 WelcomeEye Lite 2 / V1...
