ASENWARE AW-D612 User Manual

---------------------------------Please read this manual carefully before installing and using the product----------------------------------
BEFORE INSTALLING
NOTICE: This manual should be left with the owner/user of this equipment.
IMPORTANT: The detector must be tested and maintained regularly following the proper authorities' requirements. The detector
should be cleaned at least once a month.
1. Overview
The detector is a temperature detector using the best hot runner and is
very responsive and designed to provide open area protection without
wiring, and is easy to install and construct.
The red LED on each detector provides a local 360°visible alarm
indication. They flash once every minute, indicating that the detector is in
quiescent condition. When an alarm occurs, the red LED is on,it will be off
until the smoke concentration is lower than the alarm threshold ; when the
low battery warning , the red LED will flash and the buzzer will beeps.
The test button is used to test whether the detector works normally,when
pressing button, the buzzer will beeps, the red LED flashes. This button can
be used for local silencing during a fire condition.
2. Product characteristics
2.1 Easy to install, mounting bracket included
2.2 High quality durable sensor
2.3 Loud 85dB alarm and LED warning indicator
2.4 Excellent reliability and high stability
2.5 Suitable for all families and other places where needs
2.6 The battery is used for ten years, and it does not need to be replaced for ten years of normal operation.
3. Technical parameters
3.1 Operating voltage: 9VDC(with battery 6F22)
3.2 Operating current: monitoring status≤8uA, alarm status≤20mA
3.3 Fix temperature Alarm:57℃ (135°F) A2R
3.4 Rate of rise Alarm
3.5 Low battery warning voltage: ≤7.6V
3.6 Battery Life: ≥1 Year
3.7 Alarm SPL: ≥85dB @3m
3.8 Operating temperature: -10℃～50℃，Relative humidity: 5% to 95%(non-condensing)
3.9 Application: For indoor use only
3.10 Standard: BS 5446-2
3.11 Materials and colors: ABS, white
3.12 Size:φ98.6mm*37.3mm(Figure1)
3.13 Weight: about 120g
:
≥10℃/2 Minutes A2R
ASENWARE LTD
Zhongshan Guta Fire Equipment Technology CO.,Ltd
WEBSITE: www.asenware.com
Standalone Heat Detector AW-D612

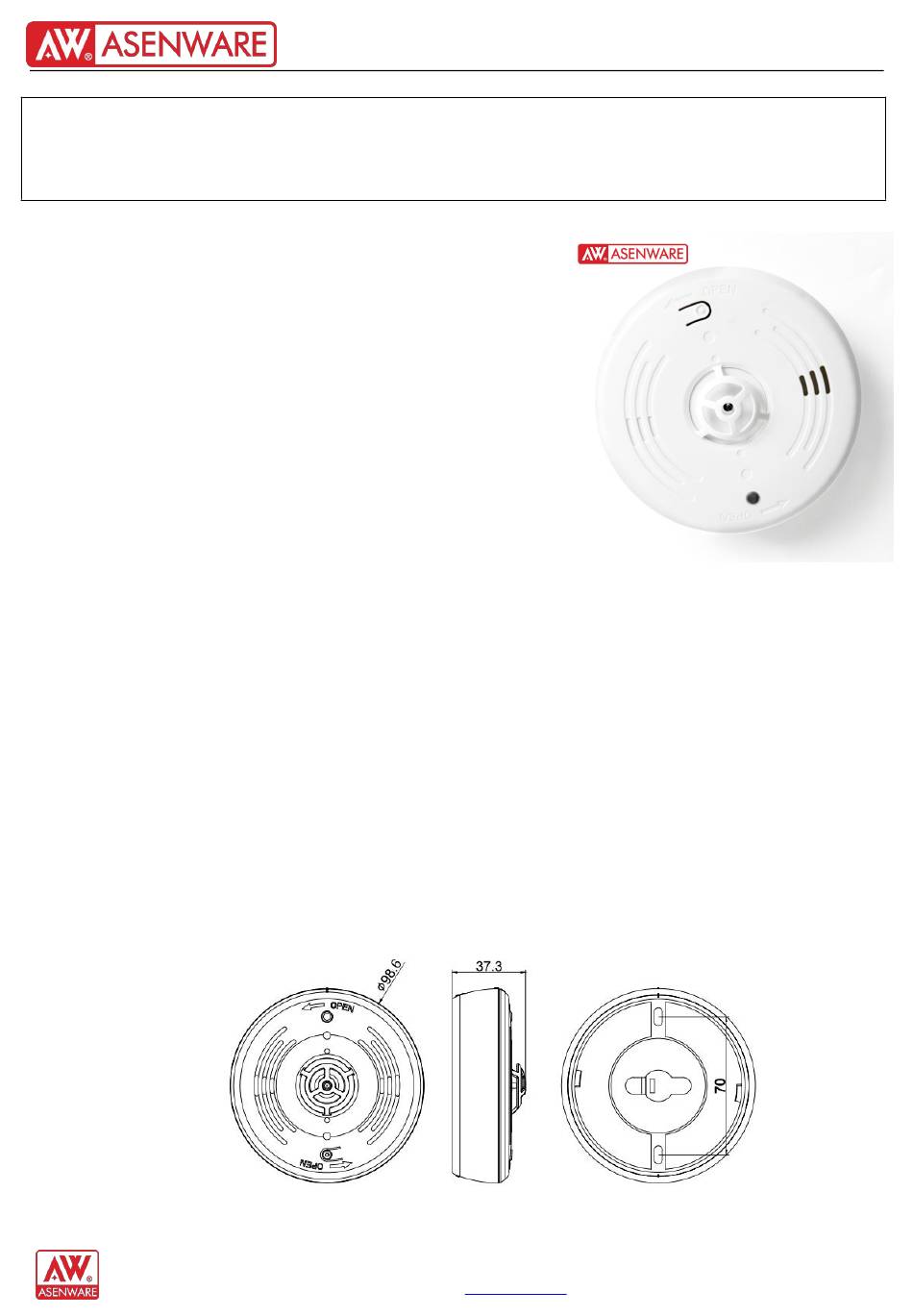

Figure1
EMAIL: info@asenware.com
Version: V1.0 Jan. 12 th ,2022
