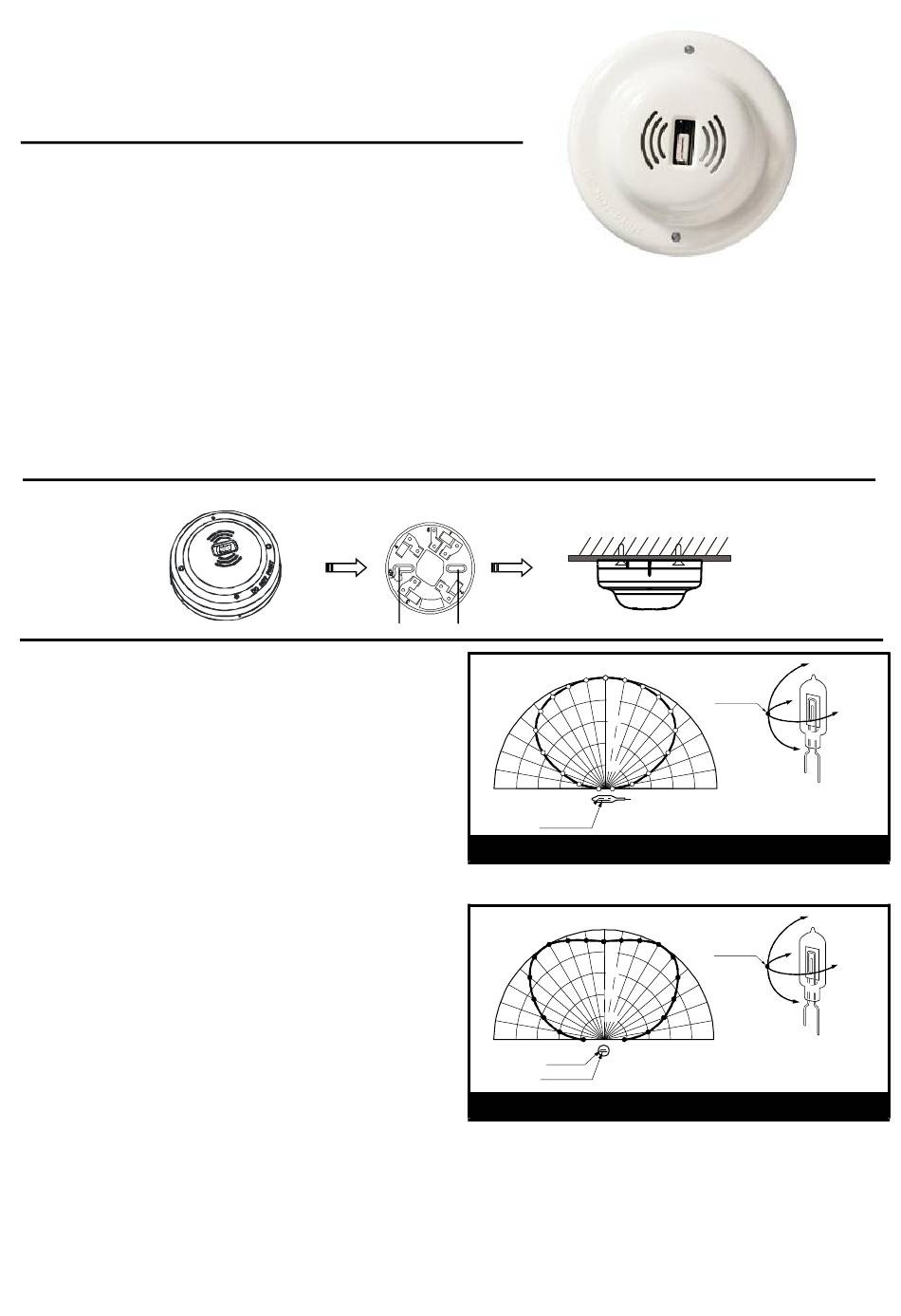

INSTALLATION AND MAINTENANCE INSTRUCTIONS
AW-FD602-UV
Flame Detector with Relay Output
SPECIFICATIONS
Operating Voltage Range:
Standby Current:
Alarm Current
Spectrum:
Detection Angle:
Detection Sensitivity:
Relay Contact Load:
Normal Status:
Alarm Status:
Protection rating:
Operating Humidity Range:
Operating Temperature Range:
Height:
Diameter:
Weight:
INSTALLATION
BEFORE INSTALLING
NOTICE: This manual should be left with the
owner/user of this equipment.
GENERAL DESCRIPTION
The device is an Ultraviolet-only flame detector designed
to detect fires and provide alarm outputs directly from the
detector while maintaining false alarm immunity. It
detects in the ultraviolet (UV) spectral range for
optimized speed of response.
It is fast and capable to detecting the ultraviolet (UV) rays
emitted by a burning substance and is used in high hazard
applications such as petrochemical plants, munitions
factories and other areas where flammable or explosive
liquids or solids are handled or stored.
The flame sensor adopts an ultraviolet photosensitive
tube, with qualities of highly sensitive, reliable,
dust-resistant, corrosion proof and moisture-resistant,
therefore is not sensitive in sunlight, dust, oil, tolerance of
fume, and humidity. Set in a standard calibration to detect
a flames at a distance of 25 meters, which flame created
by 2Kg ethanol in a Container of Base 33cmX33cm,
Height 5cm.
12 to 30 VDC Volts
≤10 mA @ 24 VDC
≤30 mA @ 24 VDC
180~290nm
110 degree
Grade I, 25m@flame (Container 33cmX33cm,Height 5cm with 2Kg ethanol )
1A@DC24V
LED blinking in 5 seconds interval
LED lit steady
IP 32
10% to 93% Relative Humidity, Non-condensing
-10°C to 50°C (14°F to 122°F)
1.8˝ (45 mm) installed in Base
4.0˝ (103 mm)
5.4 oz. (153g)
60mmm
0
10 0%
30
80
60
60
40
20
90
A N O D E
V E R T IC A L V IE W IN G
C A T H O D E
FIGURE1 Vertical Detection Angular Sensitivity(Directivity)
0
10 0%
30
80
60
60
40
20
90
A N O D E
H O R IZ O N T A L V IE W IN G
C A T H O D E
FIGURE2 Horizontal Detection Angular Sensitivity(Directivity)
V E R T IC A L V IE W IN G
3 0
U V E M IS S IO N
P O IN T
60
90
V E R T IC A L V IE W IN G
3 0
U V E M IS S IO N
P O IN T
60
90
H O R IZ O N T A L
V IE W IN G
H O R IZ O N T A L
V IE W IN G
