Summary of Contents for ASENWARE IR3 Series
- Page 1 Series flame detectors Instruction Manual ShenZhen Asenware Test and Control Technology Co.,Ltd. Address: 701,Bd 8, Dongfangming Industry Zone, Dabao Rd.,Baoan,Shenzhen,China-518101 Tel: 27663815 Fax： 27663815 Postal Code：518000 Page 1 Of 8...
- Page 2 . Make sure to read this operating guide carefully before installing，operating or maintaining the device. This manual describes the use of scope, installation and operation of IR3 series flame detectors in detail. Also it contains the related notes for using the flame detector safety. Before...
- Page 3 Contents Summary ........................4 Main Features ......................4 Technical parameters ....................5 Structure and installation ..................5 Wiring ......................... 7 Package, transport and storage ................7 Test........................7 Maintaining ........................ 8 Appendix ........................8 Page 3 Of 8...

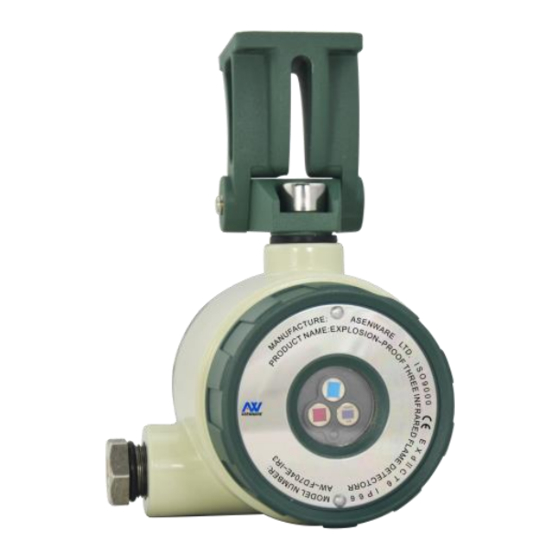

- Page 4 AW-FD704E-IR3 IR3 series IR3 Series flame detectors (short-called the flame detector as follows) provide a new generation of fire detection capability and technical standards.The flame detectors which adopt a specially designed pieces of narrow-band infrared sensors and Blind type solar daylight UV sensors can...
- Page 5 Notice: All connections adopt more than 1.0 square wire, the end of connections cut about 6mm Isolation jacket, then connect to the terminal blocks of IR3 series flame detectors. Warning: expose lead wire too much or too less may cause wrong connection.
- Page 6 The shape of detector(UV/IR3 as follow: Installation as follows: Wall surface mounting Flip down mounting Page 6 Of 8...
- Page 7 5. Wiring +24V/GND: DC 24V supply; +24V/GDN/MA：Three wire 4mA-20mA current loop signal output; FRJD/FRJK: Normally opened contact output of the alarm relay ; FLJD/FLJB: Normally closed contact output of the fault relay ; 6. Package, transport and storage The flame detector packages with carton in whose interior fills with damping foam. Flame detectors can be transported by rail, road or air transport, but should pay attention to handling, prohibit using the handling tools to hit the upper surface of the box, in order to avoid damaging to the panel of device.
- Page 8 If the lens has dirt, use the alcoholic cotton to wipe the lens, prohibit scratching the lens by hard object. Follow the above procedure to test the detector after the cleaning of the detectors. 9. Appendix IR3 Series flame detectors inside the package one; Instruction one;...
