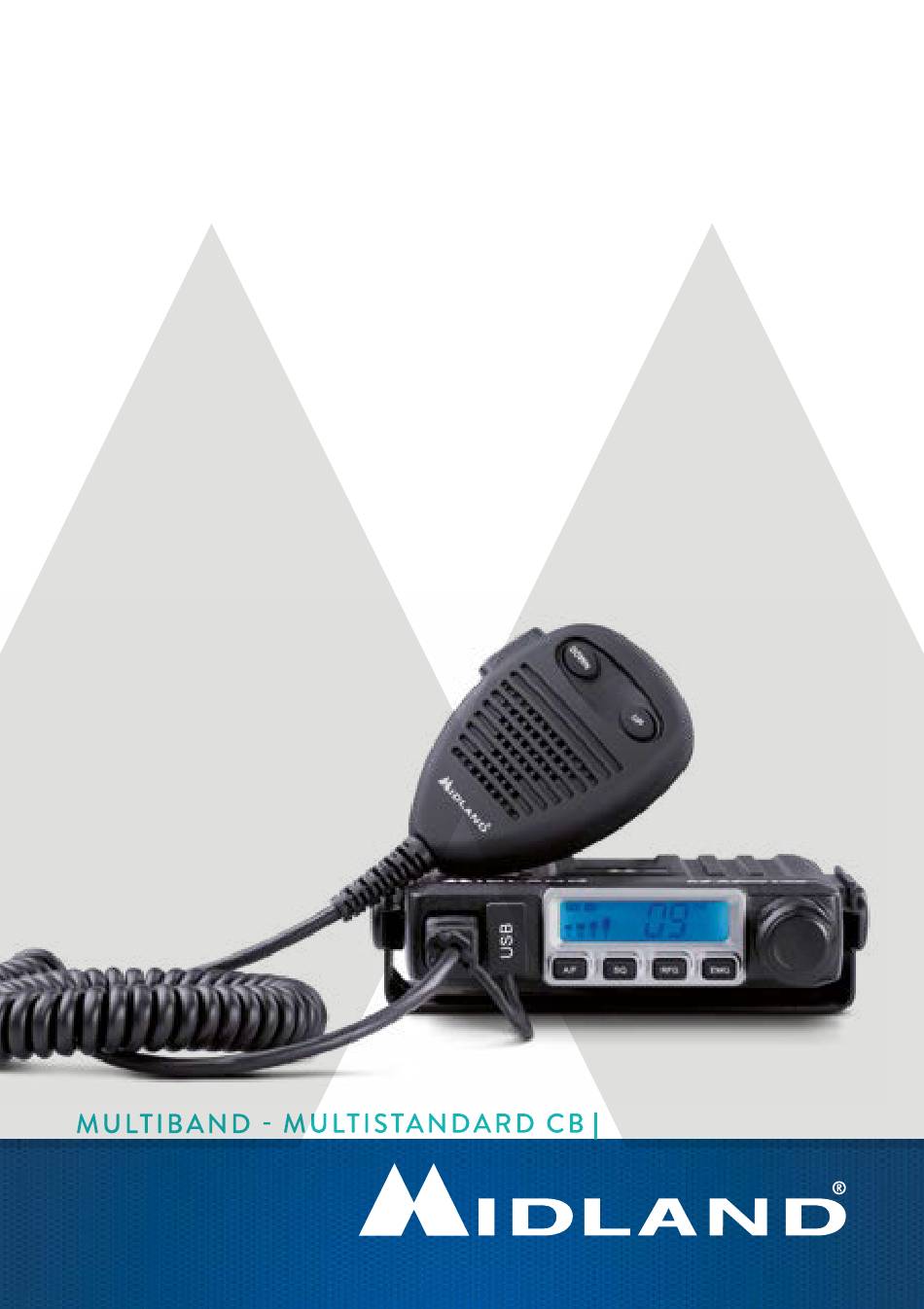

- Page 1 M-Mini USB > RICETRASMETTITORE VEICOLARE CB AM/FM > AM/FM CB MOBILE TRANSCEIVER > AM/FM CB MOBILFUNKGERÄT > TRANSCEPTOR MÓVIL CB AM/FM > EMETTEUR-RÉCEPTEUR MOBILE CB AM/FM > RADIO CB AM/FM > STATIE RADIO CB AM/FM...
- Page 2 Index Features Descriptions and commands Display Back panel Microphone Installation Power supply Antenna connection Operation Power On/Off the radio Volume control Channel Selection Squelch level control (28 level and off) DS control (9 levels) Modulation Type RF Gain control Emergency Channel Key Lock Scan function Changing the CB-Standard...
- Page 3 Features • Multi-standard device • USB port to recharge your devices • Power cord with cigarette lighter plug included • Removable microphone with RJ45 connector and Up/Down controls • Channel Scan • LCD display, S-Meter • Double squelch mode • (9 and 28 levels) •...
- Page 4 Descriptions and commands EXT SP LCD display Power On/Off Volume Microphone jack USB charging jack. If the device that must be recharged requires a high cur- rent, the sensitivity of the radio could decrease. A/F switch: Short press AM/FM selection - Long press enables SCAN fun- ction DOWN Squelch control SQ and DS: Short press to display and adjust the manual...
- Page 5 Display DOWN Selected channel 10. Received signal strength indicator and trasmission power signal AM/FM mode RX/TX: reception (RX) and trasmission (TX) indicator 13. SC: SCAN function activated 14. AQ: Digital squelch activated 15. R: RFGAIN activated Back panel EXT SP 16.
- Page 6 Microphone 19. PTT key: trasmission button 20. UP key DOWN key DOWN Installation Select the mounting location so that road safety is not affected by the device, or additional risk of injury in an accident arises. Check that the display can be seen, and the controls can easily accessed.
- Page 7 Operation Power On/Off the radio Turn VOL switch clockwise to power on the radio, the LCD displays the CB stan- dard followed by the channel number. Turn the VOL knob counterclockwise, until it clicks. The radio is powered off. Volume control Turn clockwise to increase volume and turn counterclockwise to decrease volume.
- Page 8 Note: Higher DS level require a stronger signal to open the speaker and hear the spo- kesman. Modulation Type Shortly press A/F key to switch between AM /FM mode. The LCD displays the selected mode. RF Gain control Shortly press RFG key, LCD displays R and the present RF gain level flashes. Shortly press microphone UP or DOWN to change the level of attenuation.
- Page 9 Changing the CB-Standard Switch off the radio, press A/F and then swich on your radio. Display shows the current frequencies. Press microphone UP or DOWN to choose wanted norms. Power off and power on again. Frequency band chart Digits displayed Country Italy 40 CH AM/FM 4 Watt Italy 34 CH AM/FM 4 Watt Germany 80 CH FM 4 Watt / 40 CH AM 4 Watt...
- Page 10 Specifications Frequency band* ................26.565-27.99125 Dimensions ..................110 x 120 x 25 mm³ Weight ........................450 gr Supply Voltage ......................13,2 V Current Consumption ..................2 A max Operating Temperature Range ............. -20 to +50 °C Antenna Socket ..................UHF, SO-239 Frequency Error ..................< +/- 300 Hz TX Power .........................4 Watt Spurious Transmissions ..............
