Summary of Contents for CTC Union MX702

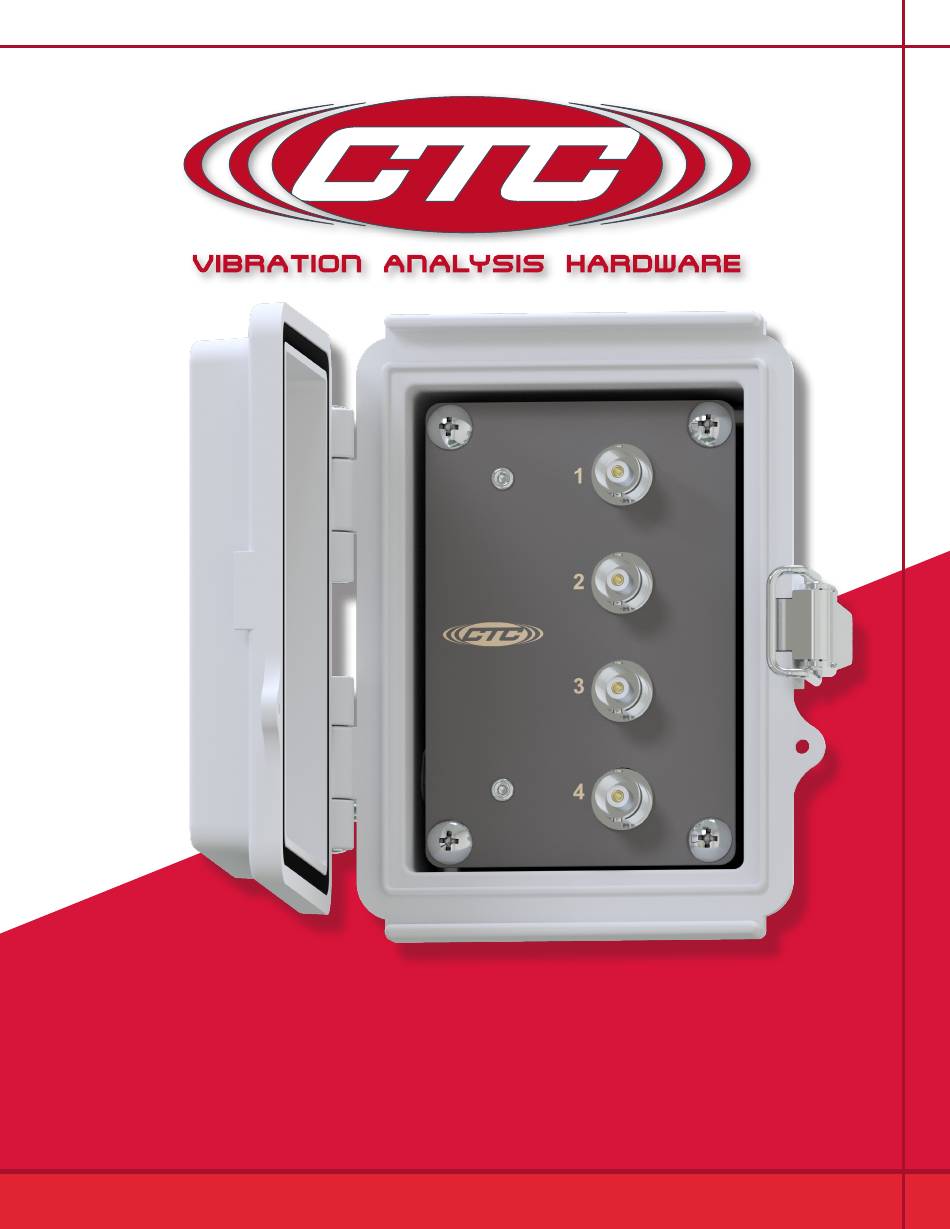

- Page 1 MX702 Mini-MA X X Enclosure MX702 Mini-MA X X Enclosure 4 Sensor Inputs 4 Sensor Inputs Product Manual Product Manual...
-
Page 2: Table Of Contents
Table of Contents • Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 •... -
Page 3: Introduction
. Each MX702 features a hinged cover with a snap latch to protect each BNC jack connector when not in use . Located on the inside of the door is a measurement location card used to identify and label each connector . -
Page 4: Product Dimensions & Diagram
Product Dimensions Front View Side View Figure 1. Dimensions Data Collector Measurement Access Location Card (BNC) Figure 2. Diagram... -
Page 5: Mounting Instructions
Independent stainless steel mounting feet are included on the enclosure . Wall anchoring screws are not included . Note: If you have purchased a MX702 Box without cable entries provided, you should add your own entry prior to mounting the enclosure . CTC does not... -
Page 6: Conduit Entry
Conduit Entry If you are running conduit to your enclosure, ensure the conduit cable entry is located at the bottom of the enclosure when mounted . Note: To ensure moisture will not flow into the enclosure, a hole should be drilled at the lowest point in the conduit to provide drainage for any moisture . -
Page 7: Grounding
Grounding Ensure the shield ground wire on the MX702 Series Mini-MAXX Box is grounded to earth ground . A. Mounting to Earth Ground When mounting an MX702 Series Mini-MAXX Box to earth ground (such as an I-Beam), mount the shield ground wire using a mounting bolt through one of the mounting brackets on the enclosure . -
Page 8: Sensor Installation
. Note: due to size constraints, the MX702 can only accommodate up to two sensors with cord grips as entry options . When configuring the enclosure for... - Page 9 Figure 8. Bottom View Figure 7. Front View Strip outer jacket of cable back 1¼ in . and remove all of the shielding . Separate the internal wires from the shield and twist the shield . Strip red and black insulation back ¼ in . Shield / Drain Wire Figure 9.
- Page 10 Inputs SENSOR 3 SENSOR 2 SENSOR 1 Sensor Inputs Red = Positive Black = Common Grey = Shield (Ground) Figure 10. Field Wiring for Two-Conductor Sensor Inputs Mark the Measurement Location Card located on the inside front cover with a description of each measurement location .
-
Page 11: Post-Installation Testing
Post-Installation Testing The TM1018 Accelerometer Verification Meter can be used to verify cable conductivity, sensor location and proper wiring connections . The Verification Meter will indicate if the sensor, cable and/or junction box is in working condition . It will also confirm bias voltage of the accelerometer, which will inform you of the operation of the internal accelerometer amplifier . -
Page 12: Contact Information
Please visit www .ctconline .com to view a complete recapitulation of our warranty and refund policies . Contact Information Connection Technology Center, Inc . (CTC) 7939 Rae Blvd . Victor, NY 14564 1 .585 .924 .5900 sales@ctconline .com www .ctconline .com Mm-Mx702-4/Rev A...
